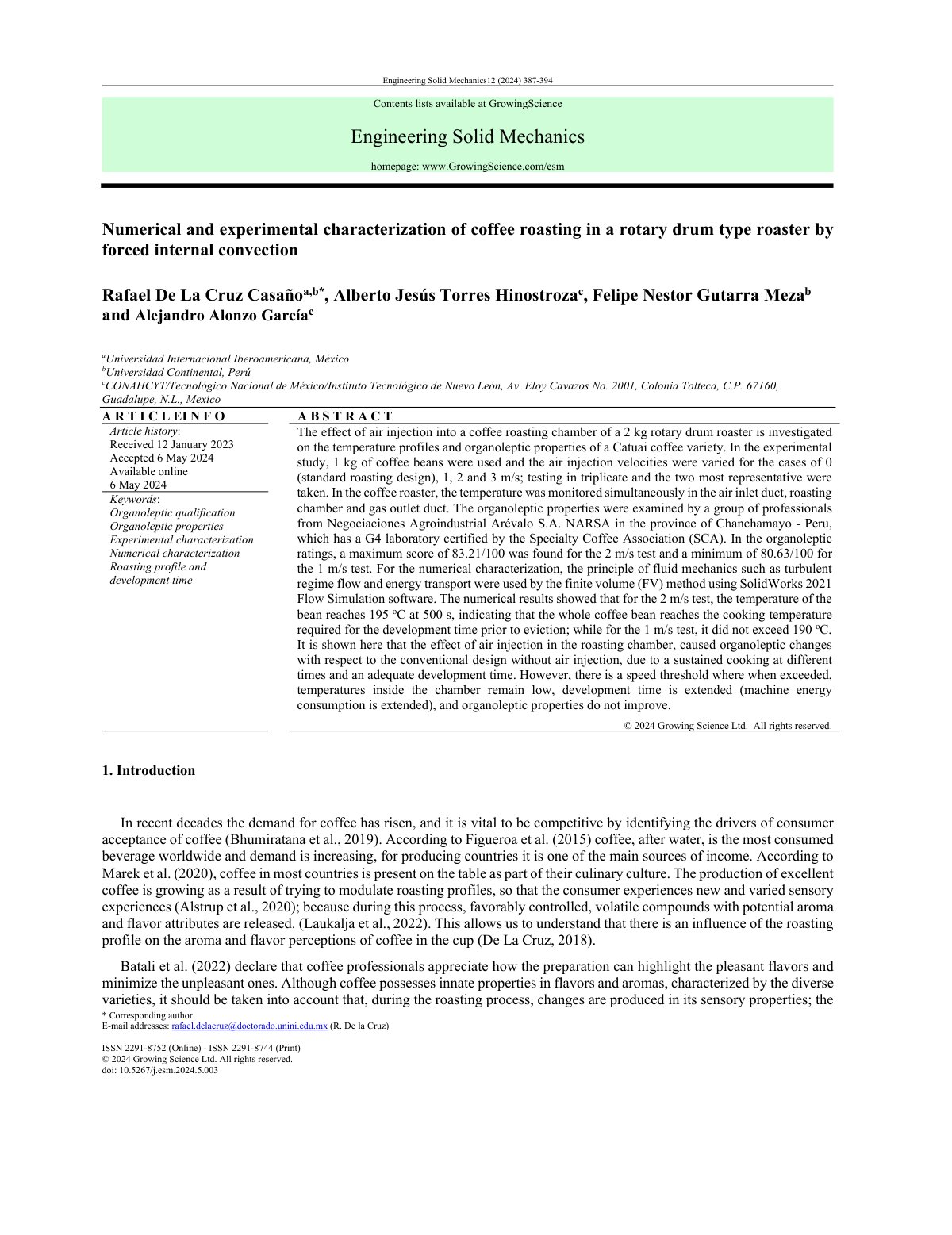

Numerical and experimental characterization of coffee roasting in a rotary drum type roaster by forced internal convection

Rafael De La Cruz Casaño, Alberto Jesús Torres Hinostroza

2024escoffeeroastingnumericalexperimentalmechanics

Abstract

Language:

The effect of air injection into a coffee roasting chamber of a 2 kg rotary drum roaster is investigated on the temperature profiles and organoleptic properties of a Catuai coffee variety. In the experimental study, 1 kg of coffee beans were used and the air injection velocities were varied for the cases of 0 (standard roasting design), 1, 2 and 3 m/s; testing in triplicate and the two most representative were taken. In the coffee roaster, the temperature was monitored simultaneously in the air inlet duct, roasting chamber and gas outlet duct. The organoleptic properties were examined by a group of professionals from Negociaciones Agroindustrial Arévalo S.A. NARSA in the province of Chanchamayo - Peru, which has a G4 laboratory certified by the Specialty Coffee Association (SCA). In the organoleptic ratings, a maximum score of 83.21/100 was found for the 2 m/s test and a minimum of 80.63/100 for the 1 m/s test. For the numerical characterization, the principle of fluid mechanics such as turbulent regime flow and energy transport were used by the finite volume (FV) method using SolidWorks 2021 Flow Simulation software. The numerical results showed that for the 2 m/s test, the temperature of the bean reaches 195 oC at 500 s, indicating that the whole coffee bean reaches the cooking temperature required for the development time prior to eviction.

Download

Cite This Work

@article{00ac3378-a24d-4de4-be6c-051d0827fb10,
  title={Numerical and experimental characterization of coffee roasting in a rotary drum type roaster by forced internal convection},
  author={Rafael De La Cruz Casaño and Alberto Jesús Torres Hinostroza},
  year={2024},
  language={es}
}
TY  - JOUR
TI  - Numerical and experimental characterization of coffee roasting in a rotary drum type roaster by forced internal convection
AU  - Rafael De La Cruz Casaño
AU  - Alberto Jesús Torres Hinostroza
PY  - 2024
LA  - es
ER  -
