S. Saleem, M. Vynnycky

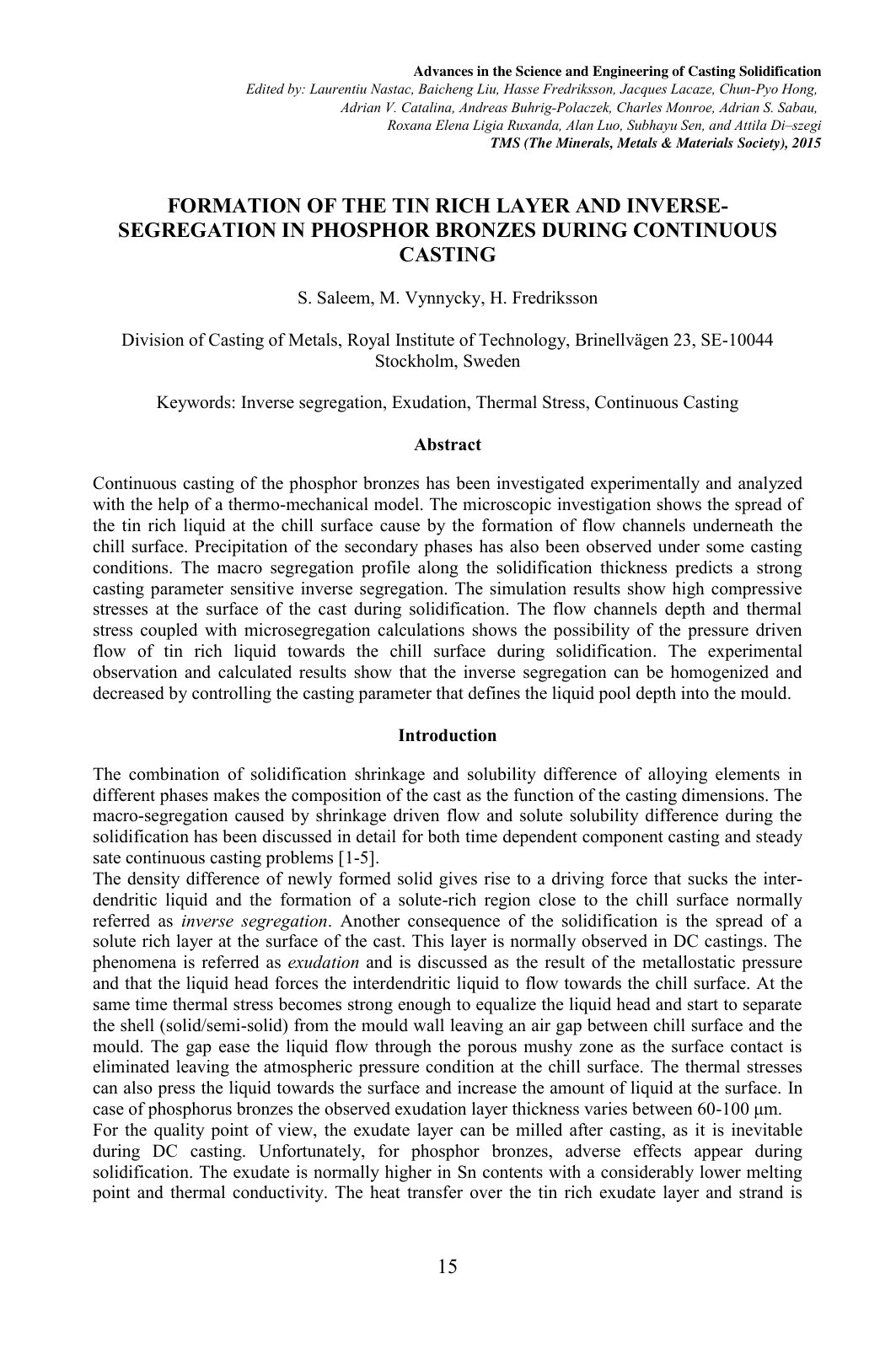

Continuous casting of the phosphor bronzes has been investigated experimentally and analyzed with the help of a thermo-mechanical model. The microscopic investigation shows the spread of the tin rich liquid at the chill surface caused by the formation of flow channels underneath the chill surface. Precipitation of the secondary phases has also been observed under some casting conditions. The macro segregation profile along the solidification thickness predicts a strong casting parameter sensitive inverse segregation. The simulation results show high compressive stresses at the surface of the cast during solidification. The flow channels depth and thermal stress coupled with microsegregation calculations show the possibility of the pressure driven flow of tin rich liquid towards the chill surface during solidification. The experimental observation and calculated results show that the inverse segregation can be homogenized and decreased by controlling the casting parameter that defines the liquid pool depth into the mould.
@article{03bdb4b6-0a9f-4edd-a515-2ba6c5008f04,
title={Formation of the Tin Rich Layer and Inve},
author={S. Saleem and M. Vynnycky},
year={2026},
language={en}
}TY - JOUR TI - Formation of the Tin Rich Layer and Inve AU - S. Saleem AU - M. Vynnycky PY - 2026 LA - en ER -
This paper addresses the challenge of assessing the feasibility of wind power plant projects at sites with insufficient or no local historic wind data
Important advances in electrochemical engineering technology over the last three decades have fostered the development of a lternative methods to alle
Increasing volumes of waste printed circuit boards from obsolete electronic equipment posed escalating environmental risks and resource losses due to
The leachability tests for manufacturing scrap TV boards (STVB) have indicated the release of metals beyond the limit levels with potential problems f
