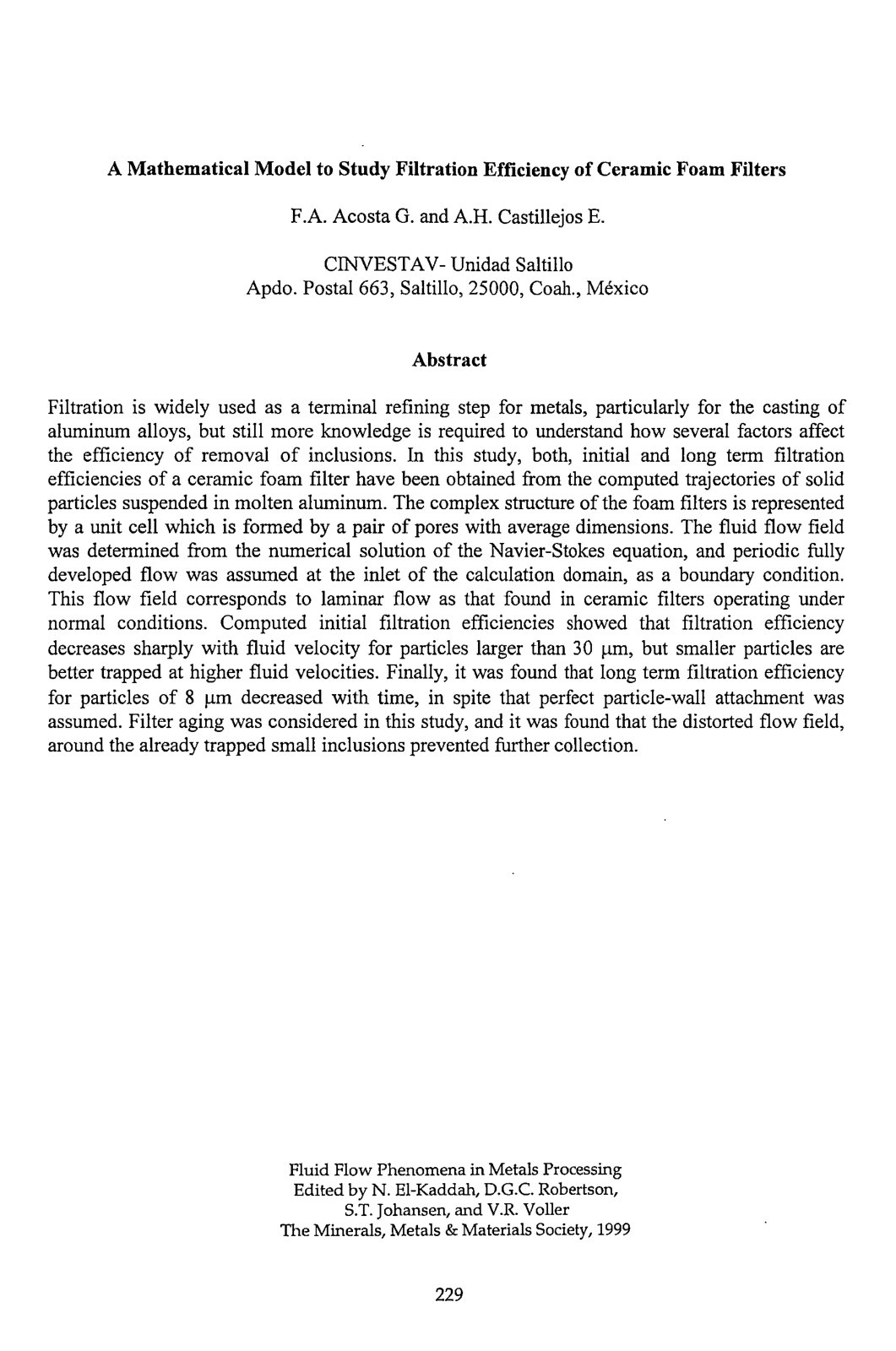

A Mathematical Model to Study Filtration Efficiency of Ceramic Foam Filters

Filtration is widely used as a terminal refining step for metals, particularly for the casting of aluminum alloys, but still more knowledge is required to understand how several factors affect the efficiency of removal of inclusions. In this study, both initial and long term filtration efficiencies of a ceramic foam filter have been obtained from the computed trajectories of solid particles suspended in molten aluminum. The complex structure of the foam filters is represented by a unit cell which is formed by a pair of pores with average dimensions. The fluid flow field was determined from the numerical solution of the Navier-Stokes equation, and periodic fully developed flow was assumed at the inlet of the calculation domain, as a boundary condition. This flow field corresponds to laminar flow as that found in ceramic filters operating under normal conditions. Computed initial filtration efficiencies showed that filtration efficiency decreases sharply with fluid velocity for particles larger than 30 µm, but smaller particles are better trapped at higher fluid velocities. Finally, it was found that long term filtration efficiency for particles of 8 µm decreased with time, in spite that perfect particle-wall attachment was assumed. Filter aging was considered in this study, and it was found that the distorted flow field, around the already trapped small inclusions prevented further collection.
