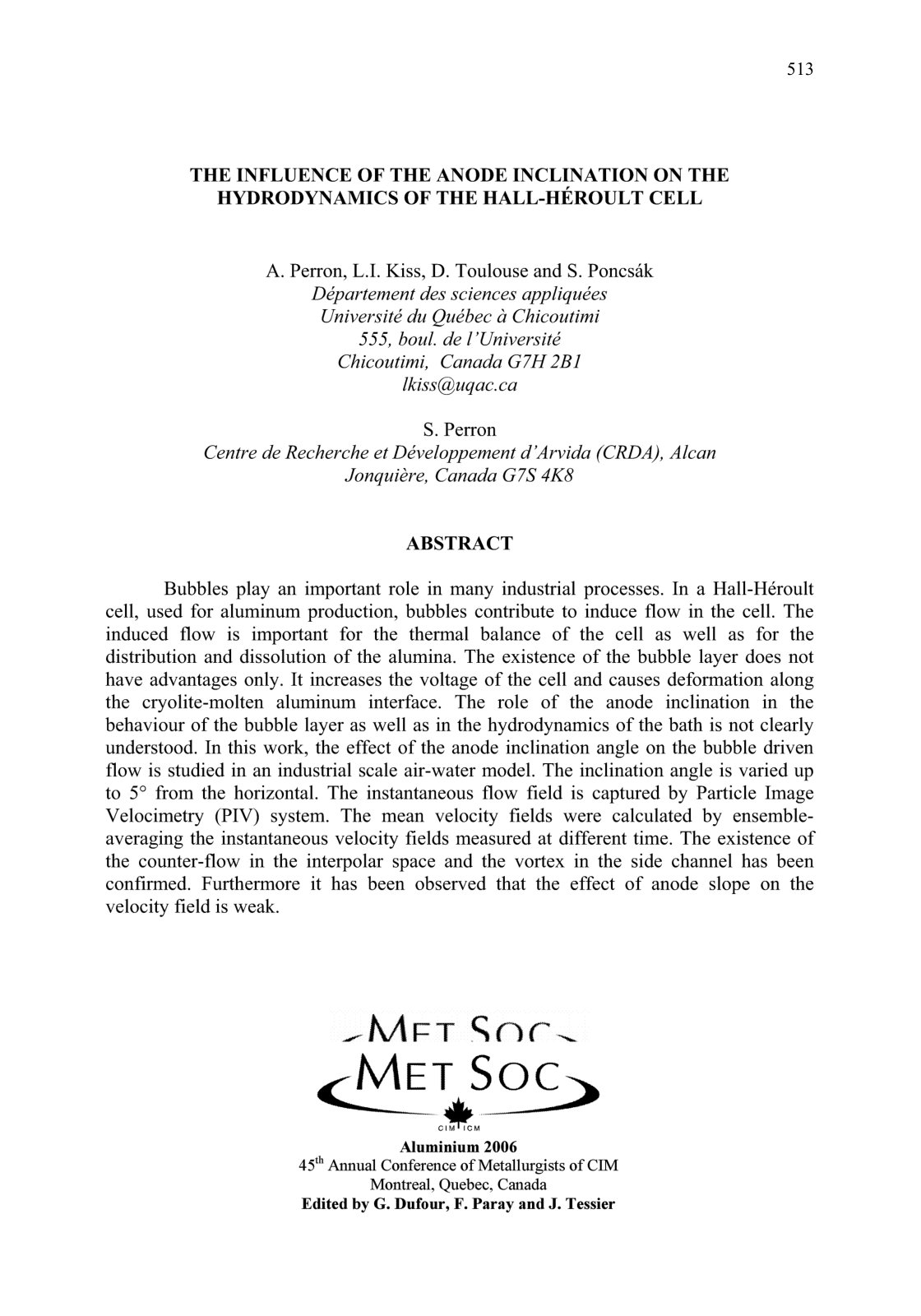

THE INFLUENCE OF THE ANODE INCLINATION ON THE HYDRODYNAMICS OF THE HALL-HEROULT CELL

Bubbles play an important role in many industrial processes. In a Hall-Heroult cell, used for aluminum production, bubbles contribute to induce flow in the cell. The induced flow is important for the thermal balance of the cell as well as for the distribution and dissolution of the alumina. The existence of the bubble layer does not have advantages only. It increases the voltage of the cell and causes deformation along the cryolite-molten aluminum interface. The role of the anode inclination in the behaviour of the bubble layer as well as in the hydrodynamics of the bath is not clearly understood. In this work, the effect of the anode inclination angle on the bubble driven flow is studied in an industrial scale air-water model. The inclination angle is varied up to 5° from the horizontal. The instantaneous flow field is captured by Particle Image Velocimetry (PIV) system. The mean velocity fields were calculated by ensemble­-averaging the instantaneous velocity fields measured at different time. The existence of the counter-flow in the interpolar space and the vortex in the side channel has been confirmed. Furthermore it has been observed that the effect of anode slope on the velocity field is weak.
