Matthew S. Hall, Philip Landon

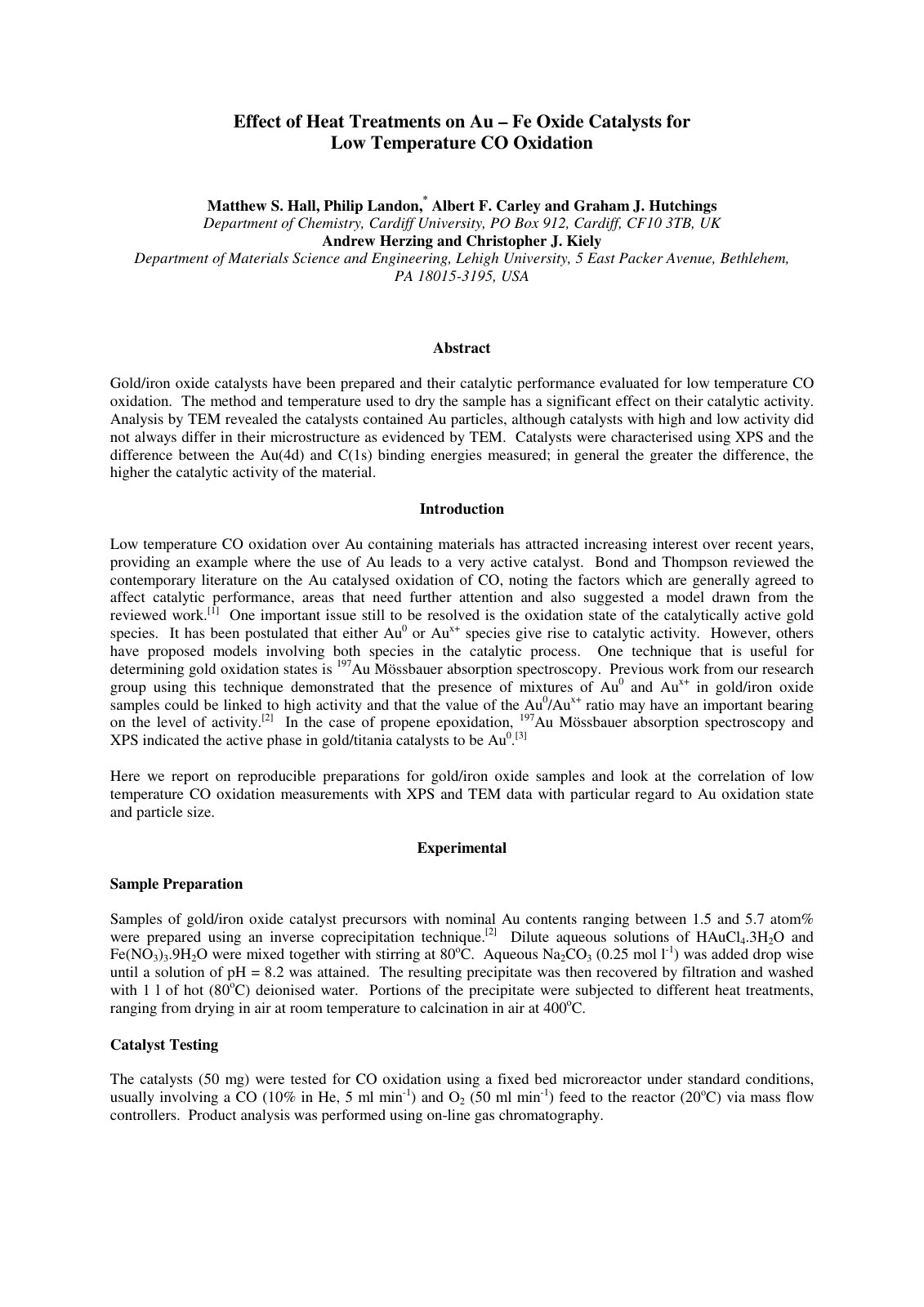

Gold/iron oxide catalysts have been prepared and their catalytic performance evaluated for low temperature CO oxidation. The method and temperature used to dry the sample has a significant effect on their catalytic activity. Analysis by transmission electron microscopy (TEM) revealed the catalysts contained Au particles; however, catalysts with high and low activity did not always differ in their microstructure. Characterisation using X-ray photoelectron spectroscopy (XPS) showed that the difference between the Au(4d) and C(1s) binding energies was generally greater in catalysts with higher catalytic activity. This suggests that the oxidation state of gold is important for activity, as higher binding energy indicates the presence of oxidized species. Therefore, while microstructural differences may not be apparent by TEM, it is the oxidized gold that correlates with high catalytic performance in low temperature CO oxidation processes.
@article{104a592a-9b3d-43ac-92e2-039693bd1d71,
title={Effect of Heat Treatments on Au – Fe Oxide Catalysts for Low Temperature CO Oxidation},
author={Matthew S. Hall and Philip Landon},
year={2026},
language={en}
}TY - JOUR TI - Effect of Heat Treatments on Au – Fe Oxide Catalysts for Low Temperature CO Oxidation AU - Matthew S. Hall AU - Philip Landon PY - 2026 LA - en ER -
Robert A. Francis
This document serves as a comprehensive introduction to the metallurgy of steel and its alloys, focusing on various aspects of iron and steel manufact
G.Oyungerel, G.Batdemberel
Particle sizes and their distributions of aerosols along the road in Ulaanbaatar city were studied by Photon Cross Correlation Spectroscopy (PCCS) NAN
This paper addresses the challenge of assessing the feasibility of wind power plant projects at sites with insufficient or no local historic wind data
Important advances in electrochemical engineering technology over the last three decades have fostered the development of a lternative methods to alle
