Tamás Kolonits, Péter Jenei
The microstructure of electrodeposited Ni films produced without and with organic additives (saccharin and formic acid) was investigated by X-ray diffraction (XRD) line profile analysis and cross-sectional transmission electron microscopy (TEM). Whereas the general effect of these additives on the microstructure (elimination of columnar growth as well as grain refinement) was reproduced, the pronounced intention of this study was to compare the results of various seldom-used high-performance structural characterization methods on identical electrodeposited specimens in order to reveal fine details of structural changes qualitatively not very common in this field. In the film deposited without additives, a columnar structure was observed showing similarities to the T-zone of structure zone models. Both formic acid and saccharin additives resulted in equiaxed grains with reduced size, as well as increased dislocation and twin fault densities in the nanocrystalline films. Moreover, the structure became homogeneous and free of texture within the total film thickness due to the additives. Saccharin yielded smaller grain size and larger defect density than formic acid. A detailed analysis of the grain size and twin boundary spacing distributions was carried out with the complementary application of TEM and XRD, by carefully distinguishing between the TEM and XRD grain sizes.
@article{114a4734-1b82-491d-b31f-6f80f6f962df,

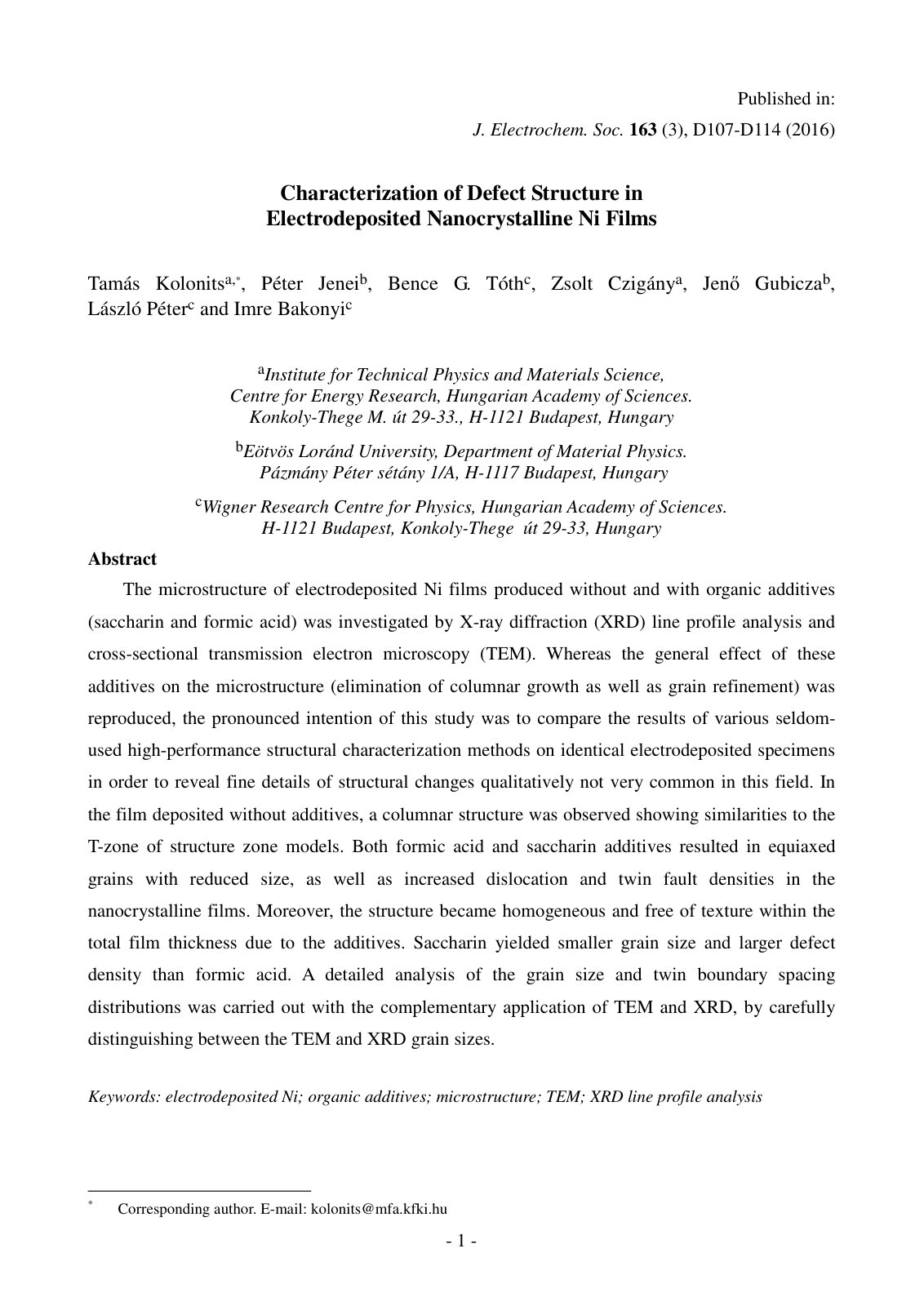

title={Characterization of Defect Structure in Electrodeposited Nanocrystalline Ni Films},
author={Tamás Kolonits and Péter Jenei},
year={2016},
language={English}
}TY - JOUR TI - Characterization of Defect Structure in Electrodeposited Nanocrystalline Ni Films AU - Tamás Kolonits AU - Péter Jenei PY - 2016 LA - English ER -
