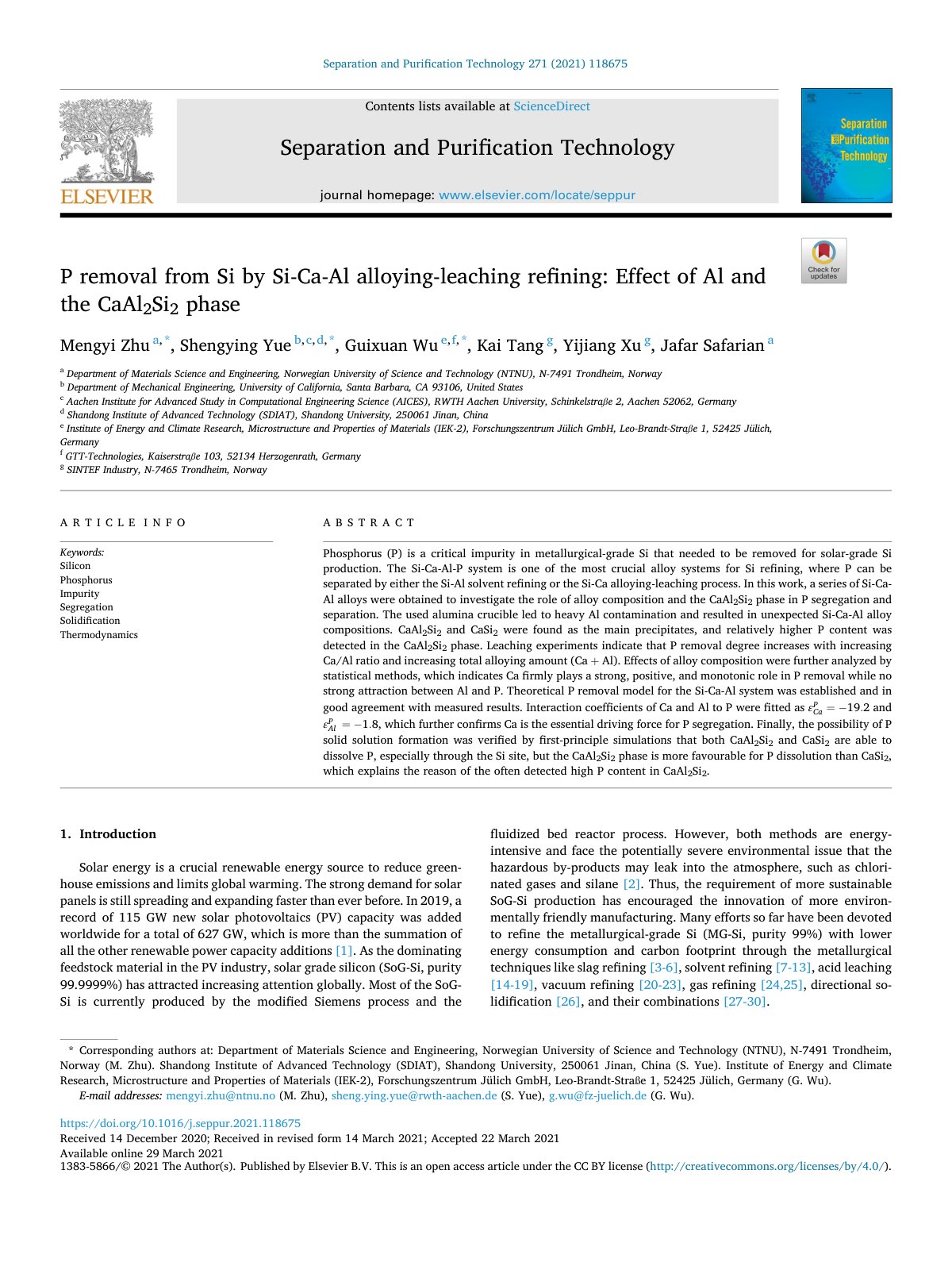

P removal from Si by Si-Ca-Al alloying-leaching refining: Effect of Al and the CaAl2Si2 phase

Phosphorus (P) is a critical impurity in metallurgical-grade Si that needed to be removed for solar-grade Si production. The Si-Ca-Al-P system is one of the most crucial alloy systems for Si refining, where P can be separated by either the Si-Al solvent refining or the Si-Ca alloying-leaching process. In this work, a series of Si-Ca-Al alloys were obtained to investigate the role of alloy composition and the CaAl2Si2 phase in P segregation and separation. The used alumina crucible led to heavy Al contamination and resulted in unexpected Si-Ca-Al alloy compositions. CaAl2Si2 and CaSi2 were found as the main precipitates, and relatively higher P content was detected in the CaAl2Si2 phase. Leaching experiments indicate that P removal degree increases with increasing Ca/Al ratio and increasing total alloying amount (Ca + Al). Effects of alloy composition were further analyzed by statistical methods, which indicates Ca firmly plays a strong, positive, and monotonic role in P removal while no strong attraction between Al and P. Theoretical P removal model for the Si-Ca-Al system was established and in good agreement with measured results.
