Z. Wang, S. Nobakhtghalati

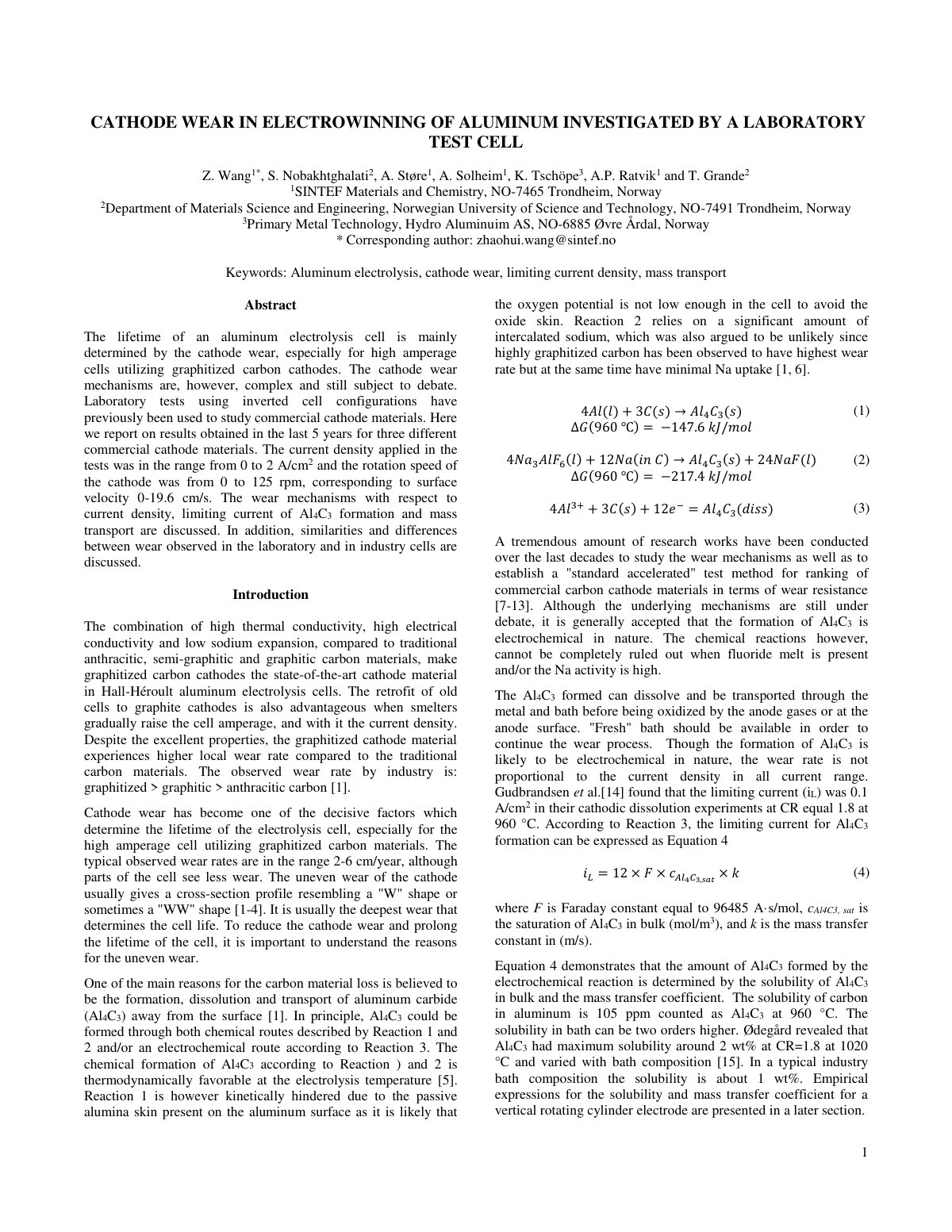

The lifetime of an aluminum electrolysis cell is mainly determined by the cathode wear, especially for high amperage cells utilizing graphitized carbon cathodes. The cathode wear mechanisms are, however, complex and still subject to debate. Laboratory tests using inverted cell configurations have previously been used to study commercial cathode materials. Here we report on results obtained in the last 5 years for three different commercial cathode materials. The current density applied in the tests was in the range from 0 to 2 A/cm2 and the rotation speed of the cathode was from 0 to 125 rpm, corresponding to surface velocity 0-19.6 cm/s. The wear mechanisms with respect to current density, limiting current of Al4C3 formation and mass transport are discussed. In addition, similarities and differences between wear observed in the laboratory and in industry cells are discussed.
@article{18d2e99b-7585-40cf-a999-ea92652b5689,
title={Cathode Wear in Electrowinning of Alumin},
author={Z. Wang and S. Nobakhtghalati},
year={2026},
language={en}
}TY - JOUR TI - Cathode Wear in Electrowinning of Alumin AU - Z. Wang AU - S. Nobakhtghalati PY - 2026 LA - en ER -
This paper addresses the challenge of assessing the feasibility of wind power plant projects at sites with insufficient or no local historic wind data
Important advances in electrochemical engineering technology over the last three decades have fostered the development of a lternative methods to alle
Increasing volumes of waste printed circuit boards from obsolete electronic equipment posed escalating environmental risks and resource losses due to
The leachability tests for manufacturing scrap TV boards (STVB) have indicated the release of metals beyond the limit levels with potential problems f
