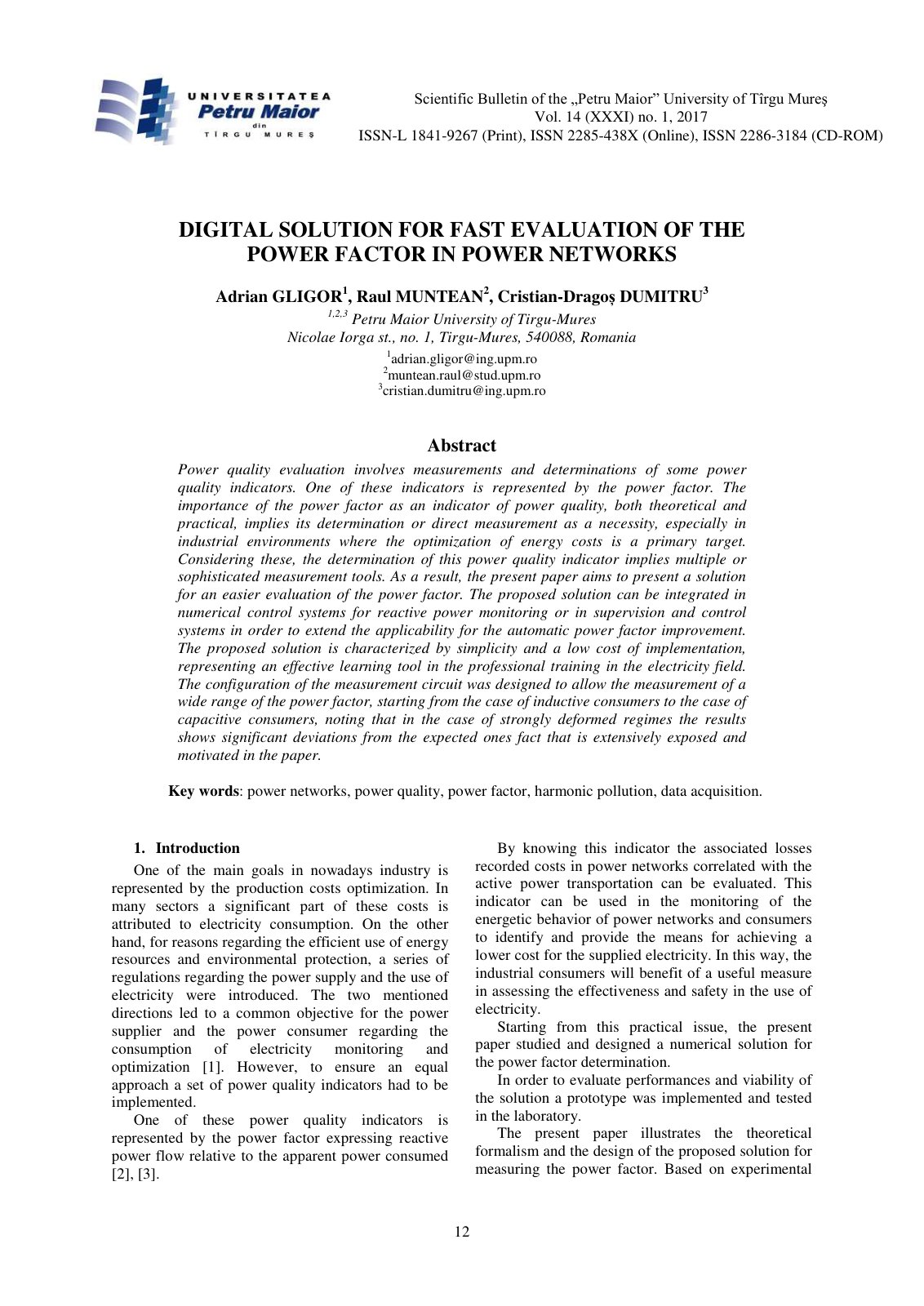

Digital Solution for Fast Evaluation of

Power quality evaluation involves measurements and determinations of some power quality indicators. One of these indicators is represented by the power factor. The importance of the power factor as an indicator of power quality, both theoretical and practical, implies its determination or direct measurement as a necessity, especially in industrial environments where the optimization of energy costs is a primary target. Considering these, the determination of this power quality indicator implies multiple or sophisticated measurement tools. As a result, the present paper aims to present a solution for an easier evaluation of the power factor. The proposed solution can be integrated into numerical control systems for reactive power monitoring or in supervision and control systems in order to extend the applicability for the automatic power factor improvement. The proposed solution is characterized by simplicity and a low cost of implementation, representing an effective learning tool in the professional training in the electricity field. The configuration of the measurement circuit was designed to allow the measurement of a wide range of the power factor, starting from the case of inductive consumers to the case of capacitive consumers, noting that in the case of strongly deformed regimes the results show significant deviations from the expected ones, a fact that is extensively exposed and motivated in the paper.
