PDF

Correlation of Microstructure with the Wear Resistance and Fracture Toughness of White Cast Iron Alloys

M. Filipovic, Z. Kamberovic, M. Korac, and M. Gavrilovski

2012enwhite cast ironmicrostructurewear resistancefracture toughnesscarbidesalloying elementschromium alloys

Abstract

Language:

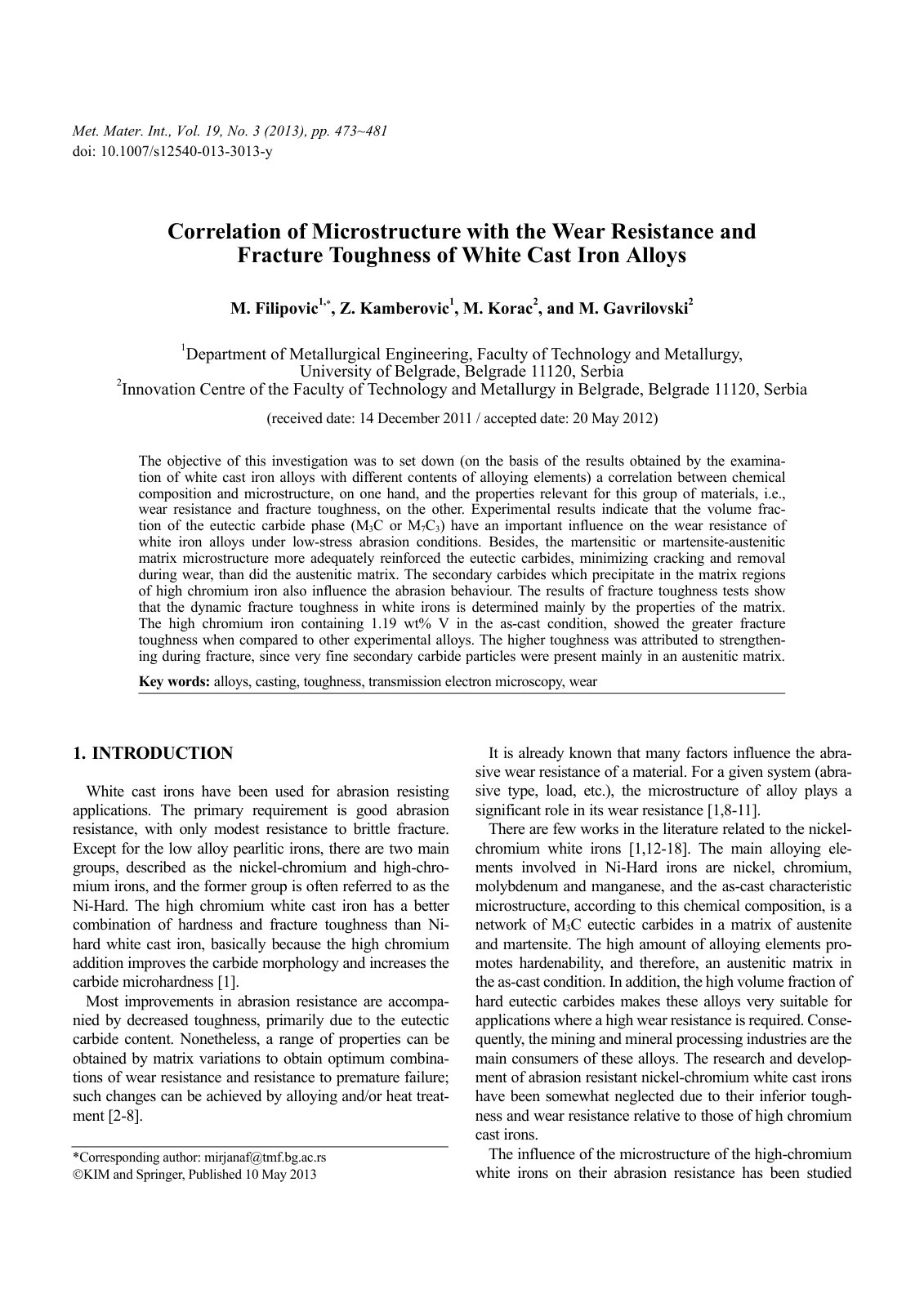

The objective of this investigation was to set down (on the basis of the results obtained by the examination of white cast iron alloys with different contents of alloying elements) a correlation between chemical composition and microstructure, on one hand, and the properties relevant for this group of materials, i.e., wear resistance and fracture toughness, on the other. Experimental results indicate that the volume fraction of the eutectic carbide phase (M3C or M7C3) have an important influence on the wear resistance of white iron alloys under low-stress abrasion conditions. Besides, the martensitic or martensite-austenitic matrix microstructure more adequately reinforced the eutectic carbides, minimizing cracking and removal during wear, than did the austenitic matrix. The secondary carbides which precipitate in the matrix regions of high chromium iron also influence the abrasion behaviour. The results of fracture toughness tests show that the dynamic fracture toughness in white irons is determined mainly by the properties of the matrix. The high chromium iron containing 1.19 wt% V in the as-cast condition, showed the greater fracture toughness when compared to other experimental alloys. The higher toughness was attributed to strengthening during fracture, since very fine secondary carbide particles were present mainly in an austenitic matrix.

Download

Cite This Work

@article{216aa9e2-7627-495e-9f19-0d8153831841,
  title={Correlation of Microstructure with the Wear Resistance and Fracture Toughness of White Cast Iron Alloys},
  author={M. Filipovic and Z. Kamberovic and M. Korac and and M. Gavrilovski},
  year={2012},
  language={en}
}
TY  - JOUR
TI  - Correlation of Microstructure with the Wear Resistance and Fracture Toughness of White Cast Iron Alloys
AU  - M. Filipovic
AU  - Z. Kamberovic
AU  - M. Korac
AU  - and M. Gavrilovski
PY  - 2012
LA  - en
ER  -

Similar Items

THE EFFECT VANADIUM CONTENT AND HEAT TREATMENT ON WEAR RESISTANCE AND FRACTURE TOUGHNESS OF FE-CR-C-V ALLOY

Mirjana Filipović, Željko Kamberović, Marija Korać

Experimental results indicate that the volume fraction of the carbide phase, carbide size and distribution had an important influence on the wear resi

2014enPDF

Chemical Composition and Morphology of M7C3 Eutectic Carbide in High Chromium White Cast Iron Alloyed with Vanadium

Mirjana FILIPOVIC, Endre ROMHANJI and Zeljko KAMBEROVIC

The chemical composition and morphology of M7C3 eutectic carbides in 19 mass% Cr–2.8 mass% C white iron with up to 4.7 mass% V additions have been stu

2012enPDF

THE EFFECT OF COOLING RATE OF SLAG FROM PRIMARY COPPER PRODUCTION IN THE VALORIZATION OF COPPER IN THE FLOTATION PROCESS

Aleksandar Mihajlović, Željko Kamberović, Marija Korać, Milorad Gavrilovski, Nikola Jovanović

Technological procedure of slow cooling slag from primary copper production is applied in the purpose of copper recovery in the level of 98.5% to blis

2015enPDF

Increasing the wear resistance of rolling bearings by laser shock peening

M. Bronovets, P. Bukovskiy

Rolling bearings are among the most common components, used in virtually all branches of industry—from bicycles to space stations, including industria

2026enPDF

Effect of laser power variation on microstructure and properties of selective laser melting coating deposited on TC4 titanium alloy

Wei Xu, Gaojian You

The surface properties of aviation titanium alloys critically influence service safety and reliability, yet there is limited guidance on laser power s

2026enPDF

Hydrometallurgy in the Past Decades. A Personal View

Fathi Habashi

In the 1940s hydromtallurgy benefitted a great deal from Manhattan Project in USA, then in the 1950s a new technology was introduced by Sherritt-Gordo

2010enPDF
