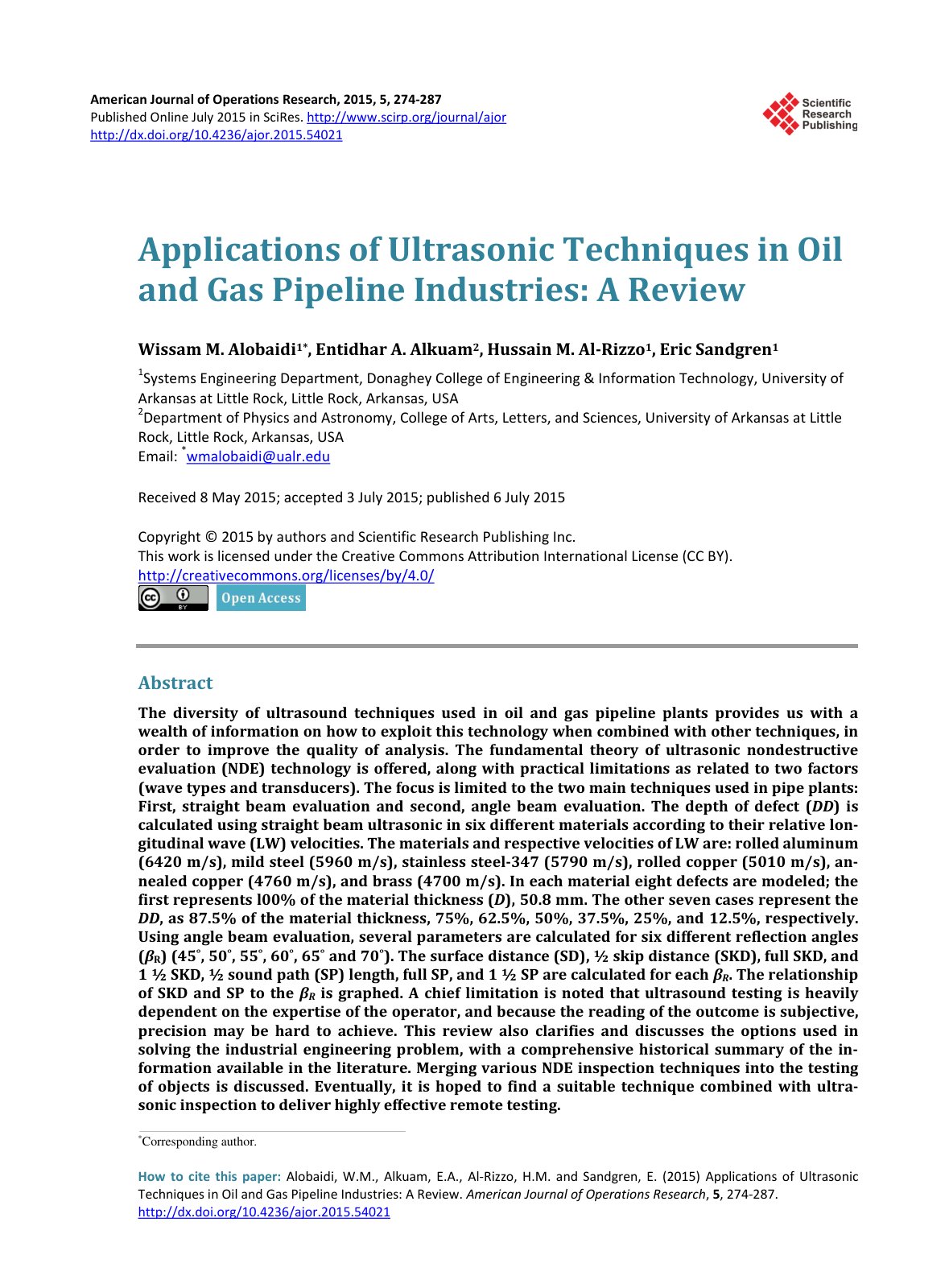

Applications of Ultrasonic Techniques in Oil and Gas Pipeline Industries: A Review

The diversity of ultrasound techniques used in oil and gas pipeline plants provides us with a wealth of information on how to exploit this technology when combined with other techniques, in order to improve the quality of analysis. The fundamental theory of ultrasonic nondestructive evaluation (NDE) technology is offered, along with practical limitations as related to two factors (wave types and transducers). The focus is limited to the two main techniques used in pipe plants: first, straight beam evaluation and second, angle beam evaluation. The depth of defect (DD) is calculated using straight beam ultrasonic in six different materials according to their relative longitudinal wave (LW) velocities. The materials and respective velocities of LW are: rolled aluminum (6420 m/s), mild steel (5960 m/s), stainless steel -347 (5790 m/s), rolled copper (5010 m/s), annealed copper (4760 m/s), and brass (4700 m/s). In each material eight defects are modeled; the first represents 100% of the material thickness (D), 50.8 mm. The other seven cases represent the DD, as 87.5% of the material thickness, 75%, 62.5%, 50%, 37.5%, 25%, and 12.5%, respectively.
