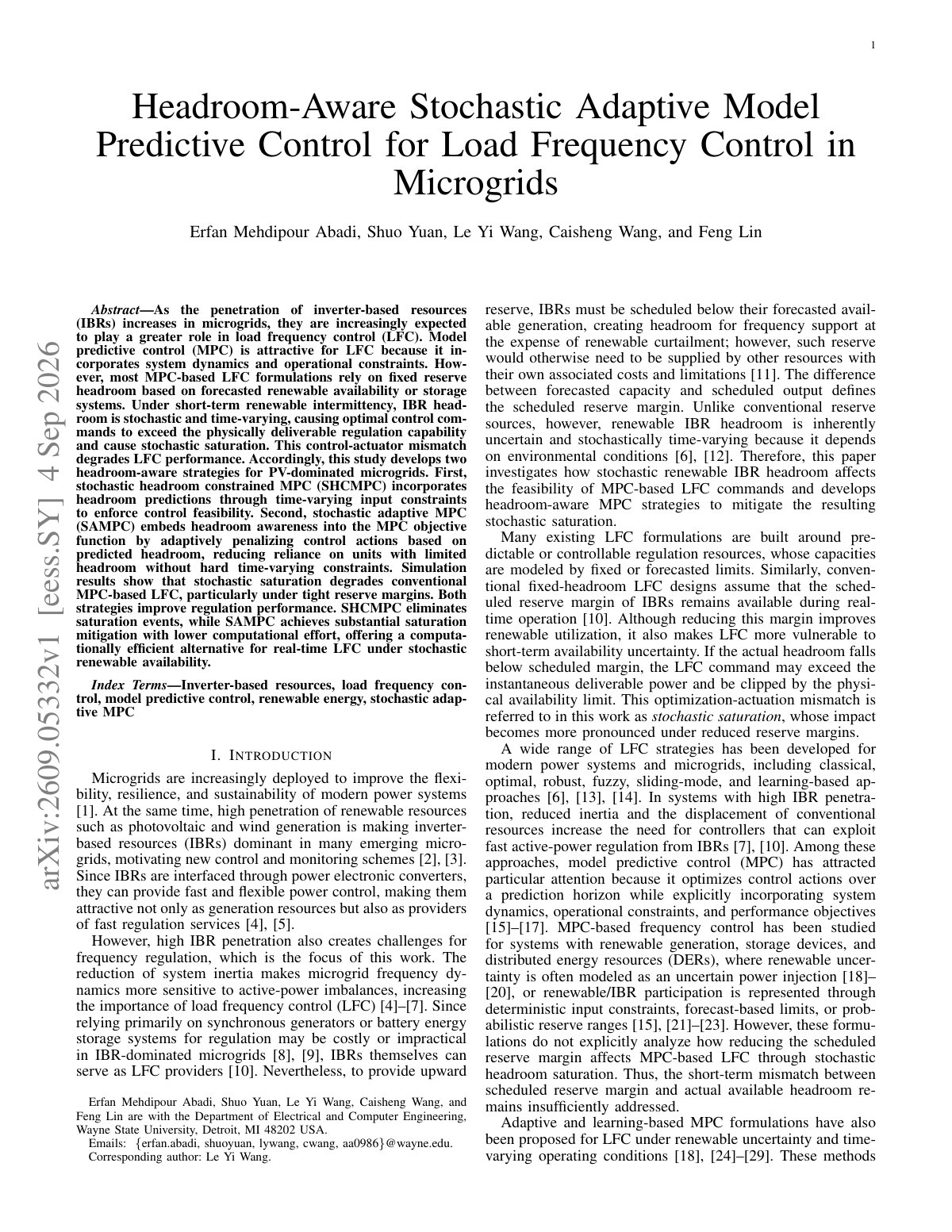

2026 Abadi Microgrid Load Frequency Control

As the penetration of inverter-based resources (IBRs) increases in microgrids, they are increasingly expected to play a greater role in load frequency control (LFC). Model predictive control (MPC) is attractive for LFC because it incorporates system dynamics and operational constraints. However, most MPC-based LFC formulations rely on fixed reserve headroom based on forecasted renewable availability or storage systems. Under short-term renewable intermittency, IBR headroom is stochastic and time-varying, causing optimal control commands to exceed the physically deliverable regulation capability and cause stochastic saturation. This control-actuator mismatch degrades LFC performance. Accordingly, this study develops two headroom-aware strategies for PV-dominated microgrids. First, stochastic headroom constrained MPC (SHCMPC) incorporates headroom predictions through time-varying input constraints to enforce control feasibility. Second, stochastic adaptive MPC (SAMPC) embeds headroom awareness into the MPC objective function by adaptively penalizing control actions based on predicted headroom, reducing reliance on units with limited headroom without hard time-varying constraints. Simulation results show that stochastic saturation degrades conventional MPC-based LFC, particularly under tight reserve margins. Both strategies improve regulation performance. SHCMPC eliminates saturation events, while SAMPC achieves substantial saturation mitigation with lower computational effort, offering a computationally efficient alternative for real-time LFC under stochastic renewable availability.
