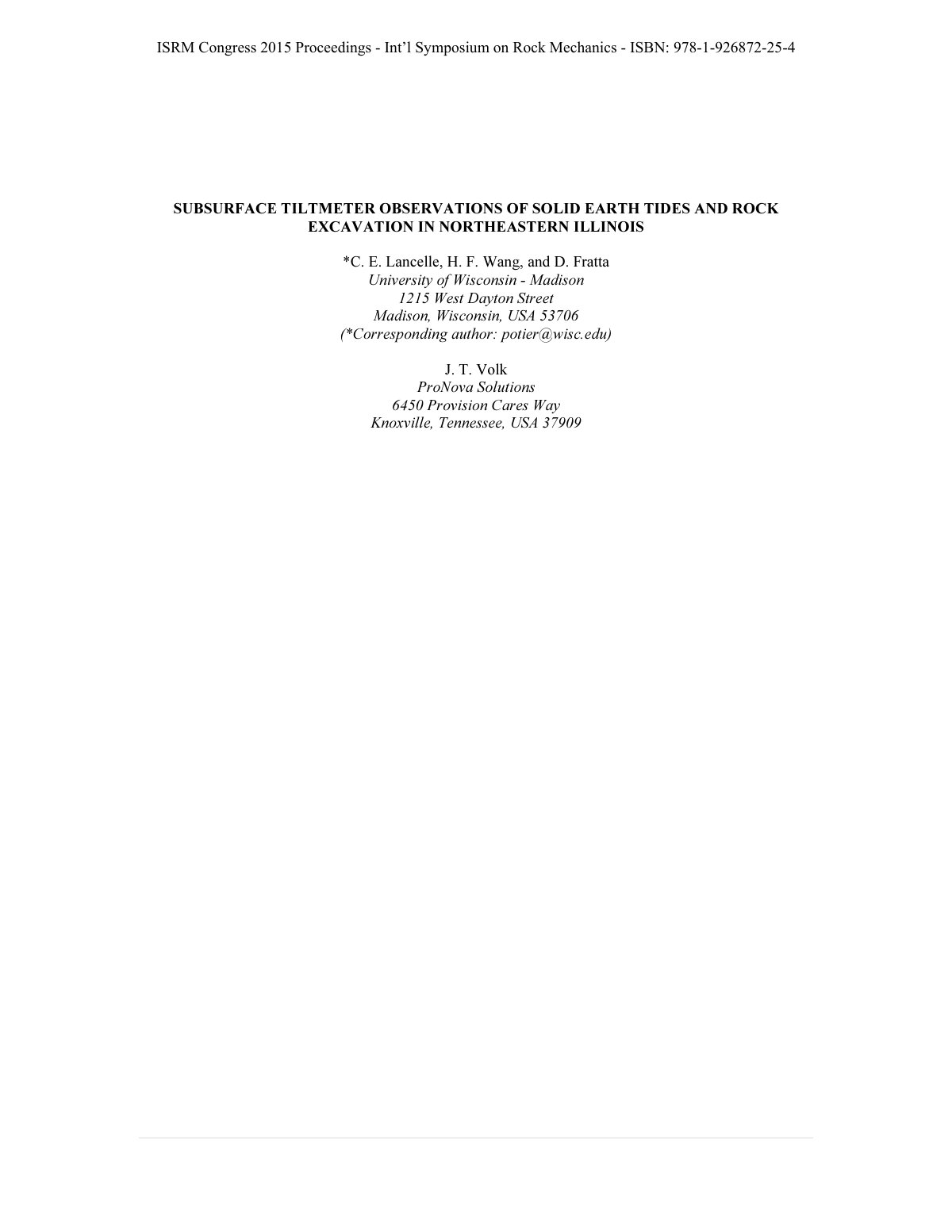

Subsurface tiltmeter observations of solid earth tides and rock excavation in northeastern Illinois

The Main Injector Neutrino Oscillation Search (MINOS) Near Detector Hall at Fermilab and the Lafarge – Conco Mine are located approximately 100 meters underground in the Galena-Platteville dolomite just below its contact with the overlying Maquoketa shale in Northeastern Illinois, USA. A new cavern was excavated adjacent to the MINOS Near Detector Hall at Fermilab to house the near detector for the Off-axis Neutrino Appearance Experiment (NOvA) program. During this excavation approximately 1150 cubic meters of shale rock were removed. Tiltmeter arrays consisting of a series of hydrostatic leveling sensors (HLS), which are spaced regularly over a total distance of 50-to-100 meters, were used to monitor subsurface deformations. The tiltmeter response in the MINOS Near Detector Hall due to the NOvA cavern excavation is approximately thirteen times the estimated response based on using laboratory-determined properties. The discrepancy between modeled and measured tilt is likely due to differences in Young’s Modulus in the rock mass versus in a small laboratory sample. Amplitudes of measured solid earth tides differ from the amplitudes of theoretical solid earth tides by up to 40 percent for both arrays. This is likely due to a local heterogeneity or discontinuity.
