JANITH WANNI, PHALGUN NELATURU

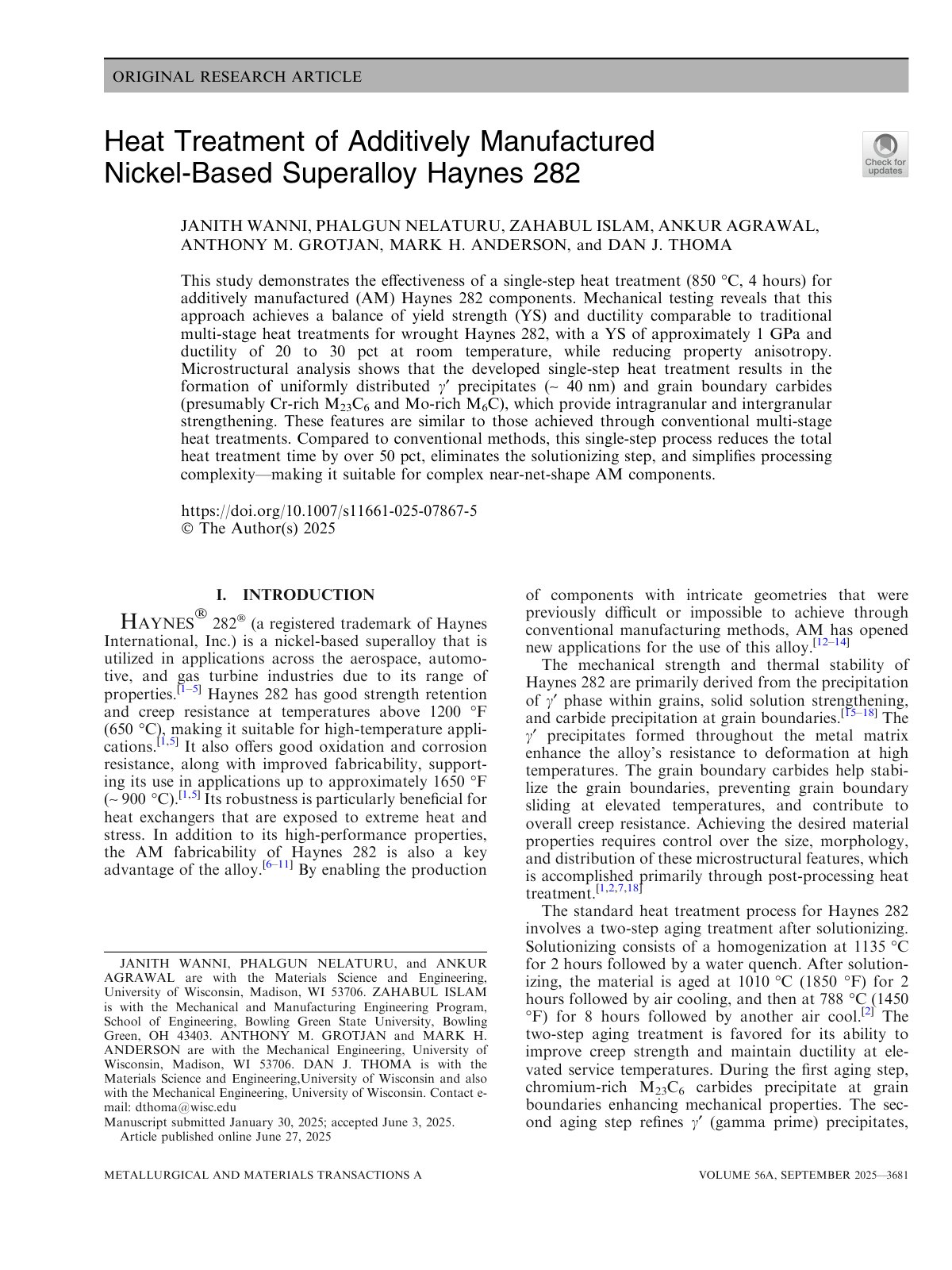

This study demonstrates the effectiveness of a single-step heat treatment (850 °C, 4 hours) for additively manufactured (AM) Haynes 282 components. Mechanical testing reveals that this approach achieves a balance of yield strength (YS) and ductility comparable to traditional multi-stage heat treatments for wrought Haynes 282, with a YS of approximately 1 GPa and ductility of 20 to 30 pct at room temperature, while reducing property anisotropy. Microstructural analysis shows that the developed single-step heat treatment results in the formation of uniformly distributed c¢ precipitates (~ 40 nm) and grain boundary carbides (presumably Cr-rich M23C6 and Mo-rich M6C), which provide intragranular and intergranular strengthening. These features are similar to those achieved through conventional multi-stage heat treatments. Compared to conventional methods, this single-step process reduces the total heat treatment time by over 50 pct, eliminates the solutionizing step, and simplifies processing complexity—making it suitable for complex near-net-shape AM components.
@article{252650b8-a4ef-4c66-aa3d-54b40069a2d1,
title={Heat Treatment of Additively Manufactured Nickel-Based Superalloy Haynes 282},
author={JANITH WANNI and PHALGUN NELATURU},
year={2025},
language={en}
}TY - JOUR TI - Heat Treatment of Additively Manufactured Nickel-Based Superalloy Haynes 282 AU - JANITH WANNI AU - PHALGUN NELATURU PY - 2025 LA - en ER -
Robert A. Francis
This document serves as a comprehensive introduction to the metallurgy of steel and its alloys, focusing on various aspects of iron and steel manufact
This paper addresses the challenge of assessing the feasibility of wind power plant projects at sites with insufficient or no local historic wind data
Important advances in electrochemical engineering technology over the last three decades have fostered the development of a lternative methods to alle
