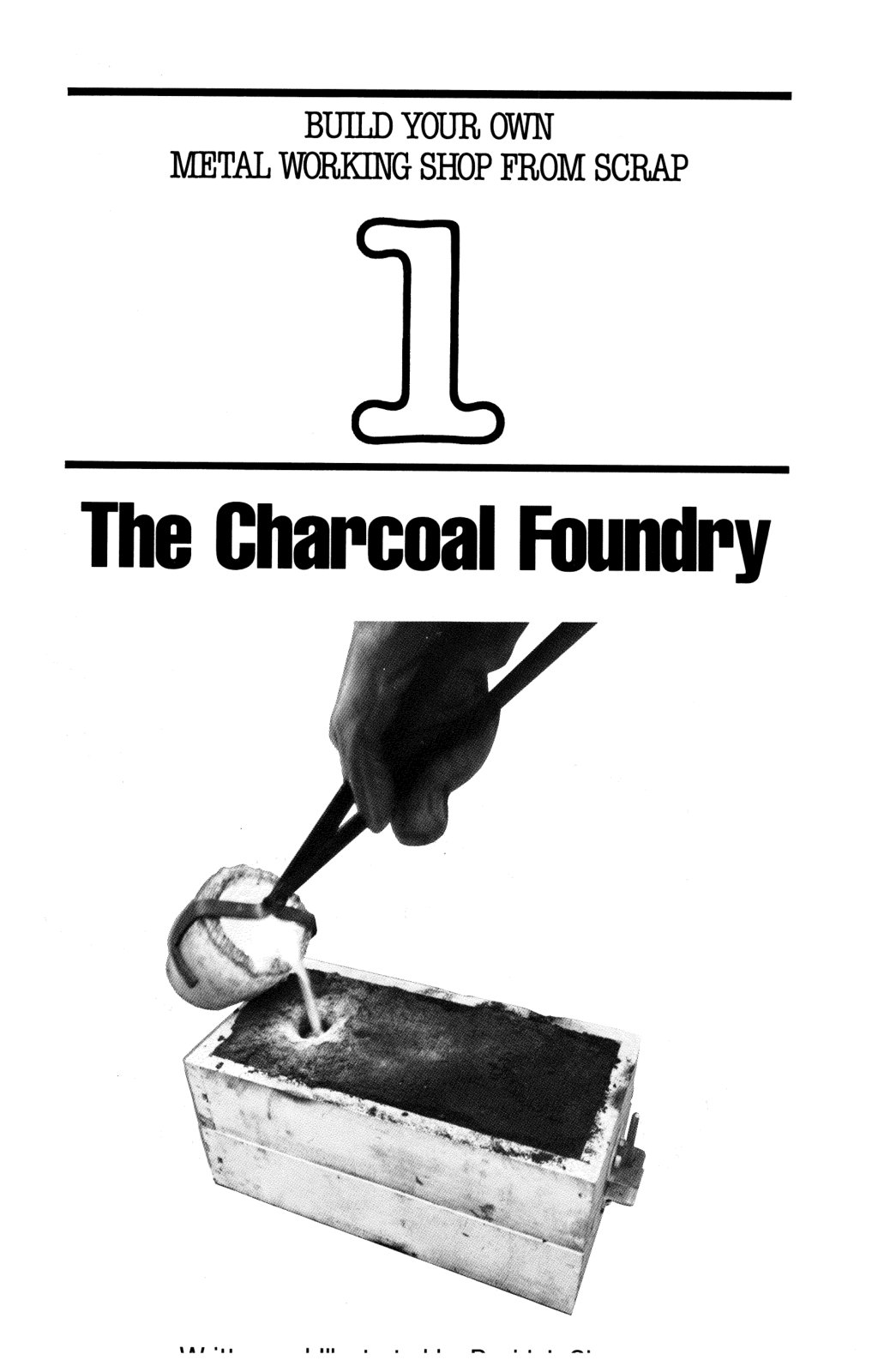

Build Your Own Metal Working Shop From Scrap - The Charcoal Foundry

Small workshops and hobbyists often lack affordable access to custom nonferrous castings, limiting the fabrication and repair of specialized components and metalworking equipment. This work addressed the problem by formulating a low-cost, small-scale foundry concept that enabled aluminum and zinc-based alloy casting using widely available scrap and household tools. The study defined and optimized a charcoal-fired crucible furnace, basic molding procedures, and pattern-making practices suitable for home implementation, with specific focus on melting behavior, casting soundness, and overall material and energy use. The methodology employed scrap aluminum and pot metal as charge materials, charcoal as the sole fuel, and simple refractory and structural materials recovered from salvage. Casting trials quantified melt time, fuel consumption, metal yield, and surface finish, while dimensional fidelity and shakeout behavior were assessed across a range of part geometries. The charcoal furnace achieved complete melting of 1–3 kg aluminum charges within 15–25 minutes, with metal yields of approximately 90–95% and casting success rates above 90% for first-attempt parts. Fuel use remained below 1.5 kg charcoal per kilogram of metal, indicating substantial energy efficiency for a nonpowered system. The process provided clean, bright castings requiring minimal machining allowance, demonstrated adequate pattern replication, and reduced dependence on commercial foundries by effectively converting low-value scrap into functional components for lathes, milling attachments, and other shop equipment.
