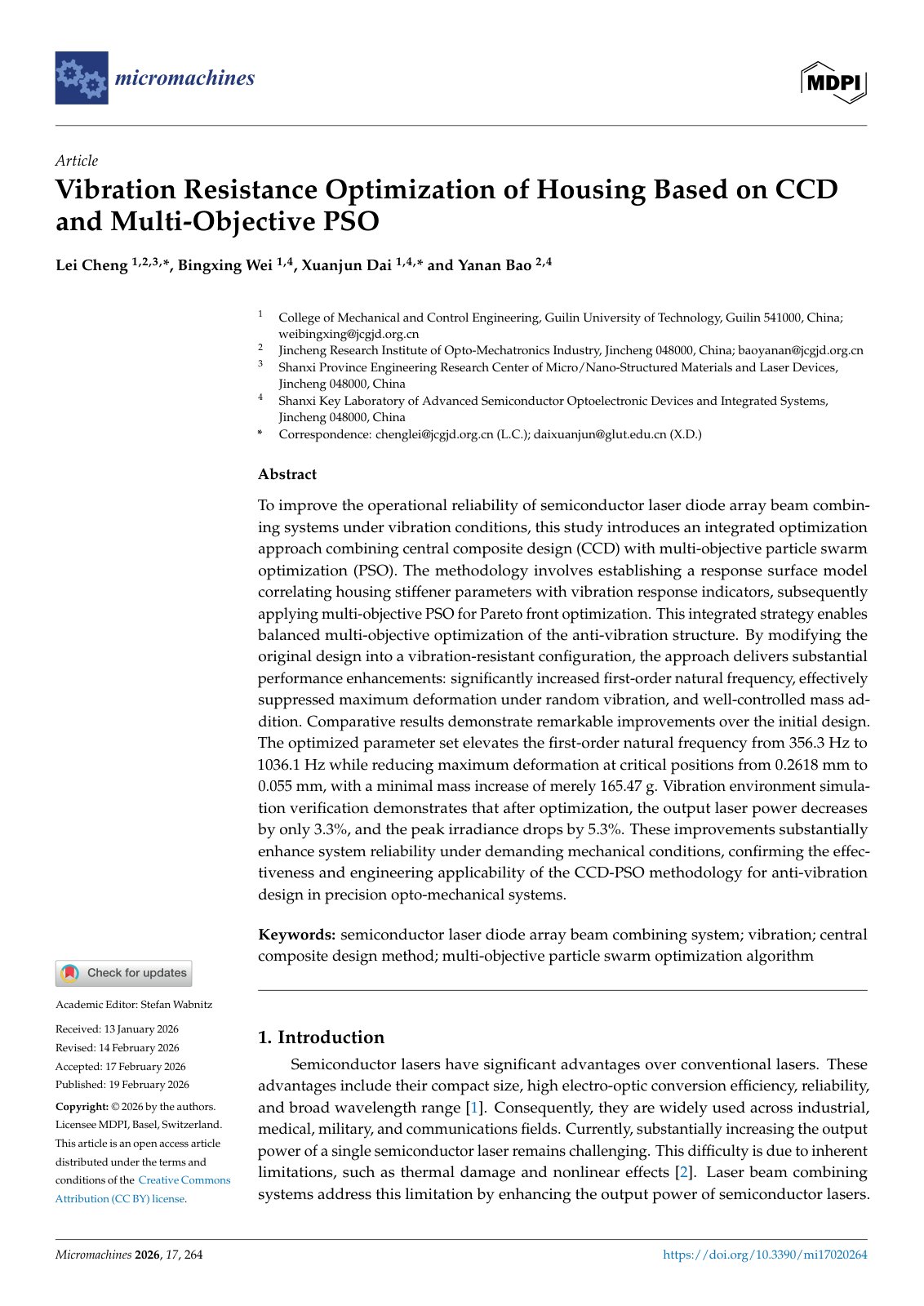

Vibration Resistance Optimization of Housing Based

To improve the operational reliability of semiconductor laser diode array beam combining systems under vibration conditions, this study introduces an integrated optimization approach combining central composite design (CCD) with multi-objective particle swarm optimization (PSO). The methodology involves establishing a response surface model correlating housing stiffness parameters with vibration response indicators, subsequently applying multi-objective PSO for Pareto front optimization. This integrated strategy enables balanced multi-objective optimization of the anti-vibration structure. By modifying the original design into a vibration-resistant configuration, the approach delivers substantial performance enhancements: significantly increased first-order natural frequency, effectively suppressed maximum deformation under random vibration, and well-controlled mass addition. Comparative results demonstrate remarkable improvements over the initial design. The optimized parameter set elevates the first-order natural frequency from 356.3 Hz to 1036.1 Hz while reducing maximum deformation at critical positions from 0.2618 mm to 0.055 mm, with a minimal mass increase of merely 165.47 g. Vibration environment simulation verification demonstrates that after optimization, the output laser power decreases by only 3.3%, and the peak irradiance drops by 5.3%. These improvements substantially enhance system reliability under demanding mechanical conditions, confirming the effectiveness and engineering applicability of the CCD-PSO methodology for anti-vibration design in precision opto-mechanical systems.
