PDF

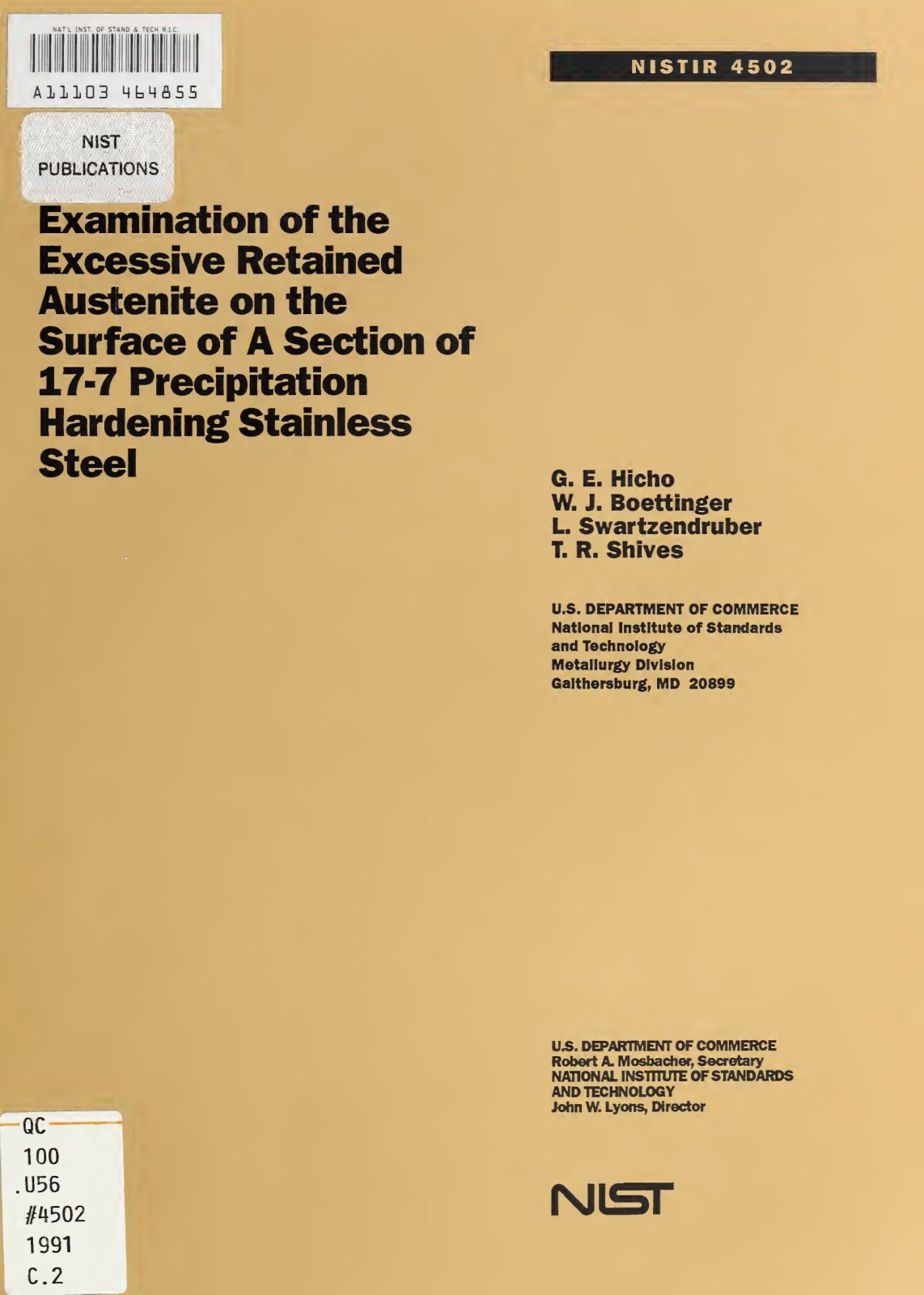

Examination of the excessive retained austenite on the surface of a section of 17-7 precipitation hardening stainless steel

G.E. Hicho, W.J. Boettinger

1991Englishmetallographymicrostructuremetallographic preparationmicroscopystainless steelheat treatment

Abstract

Language:

This study examines a mishap section and other selected sections made from 17-7 precipitation hardening stainless steel, revealing an unusually large amount of retained austenite greater than 7%. The excessive retained austenite on the surface appears to have been produced during both the solution annealing and austenite conditioning steps of the heat treating process, although it was only revealed after the austenite conditioning step. It is suspected that these sections may have been exposed to a furnace atmosphere containing too much carbon or nitrogen during the heat treating process, which could have led to an increase in the amount of retained austenite both on the surface and internally. The metallurgical examination provides insight into the factors contributing to this microstructural condition, emphasizing the importance of controlling furnace atmospheres to avoid potentially detrimental effects on material properties.

Download

Cite This Work

@article{2b5f1f07-e45a-4d6d-be1e-7b2342c8b1de,
  title={Examination of the excessive retained austenite on the surface of a section of 17-7 precipitation hardening stainless steel},
  author={G.E. Hicho and W.J. Boettinger},
  year={1991},
  language={English}
}
TY  - JOUR
TI  - Examination of the excessive retained austenite on the surface of a section of 17-7 precipitation hardening stainless steel
AU  - G.E. Hicho
AU  - W.J. Boettinger
PY  - 1991
LA  - English
ER  -

Similar Items

THE EFFECT VANADIUM CONTENT AND HEAT TREATMENT ON WEAR RESISTANCE AND FRACTURE TOUGHNESS OF FE-CR-C-V ALLOY

Mirjana Filipović, Željko Kamberović, Marija Korać

Experimental results indicate that the volume fraction of the carbide phase, carbide size and distribution had an important influence on the wear resi

2014enPDF

Quenching theory and technology B Liéséciâc; International Federation for Heat Treatment and ( WeLib.org )

2026enPDF

ME6403 - ENGINEERING MATERIALS AND METALLURGY

Department of Mechanical Engineering, ESEC

This paper discusses the crucial role of the iron-iron carbide diagram in engineering alloys, particularly in the development of important materials s

enPDF

AN INTRODUCTION TO THE METALLURGY OF STEEL AND ITS ALLOYS

Robert A. Francis

This document serves as a comprehensive introduction to the metallurgy of steel and its alloys, focusing on various aspects of iron and steel manufact

2017enPDF

Optimal Practices for Battery Storage: A Guide for Different Types

Roger Rumbu

2025enDOCX

Chemical Composition and Morphology of M7C3 Eutectic Carbide in High Chromium White Cast Iron Alloyed with Vanadium

Mirjana FILIPOVIC, Endre ROMHANJI and Zeljko KAMBEROVIC

The chemical composition and morphology of M7C3 eutectic carbides in 19 mass% Cr–2.8 mass% C white iron with up to 4.7 mass% V additions have been stu

2012enPDF
