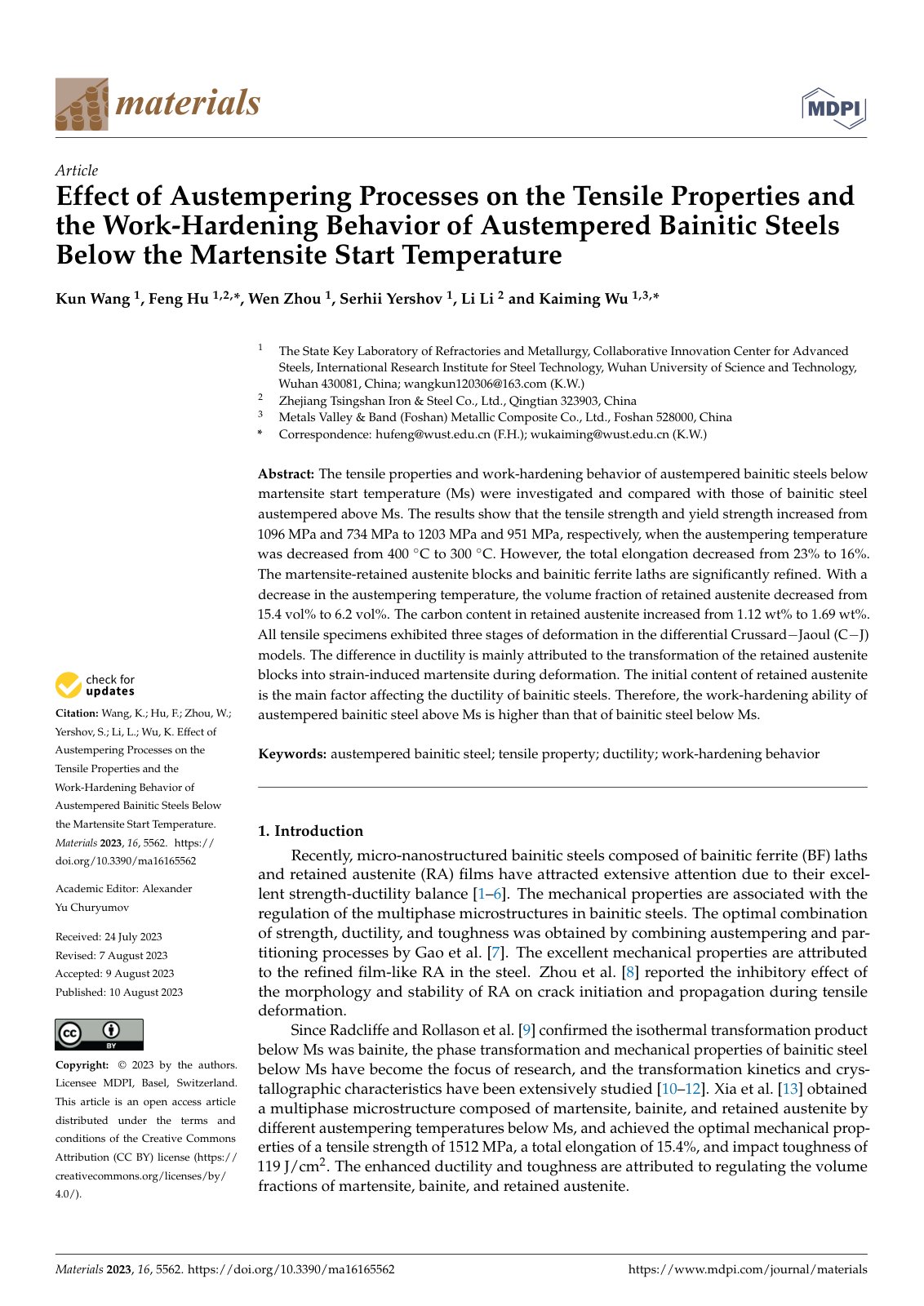

Effect of Austempering Processes on the Tensile Properties and the Work-Hardening Behavior of Austempered Bainitic Steels Below the Martensite Start Temperature

The tensile properties and work-hardening behavior of austempered bainitic steels below martensite start temperature (Ms) were investigated and compared with those of bainitic steel austempered above Ms. The results show that the tensile strength and yield strength increased from 1096 MPa and 734 MPa to 1203 MPa and 951 MPa, respectively, when the austempering temperature was decreased from 400 ◦C to 300 ◦C. However, the total elongation decreased from 23% to 16%. The martensite-retained austenite blocks and bainitic ferrite laths are significantly refined. With a decrease in the austempering temperature, the volume fraction of retained austenite decreased from 15.4 vol% to 6.2 vol%. The carbon content in retained austenite increased from 1.12 wt% to 1.69 wt%. All tensile specimens exhibited three stages of deformation in the differential Crussard−Jaoul (C−J) models. The difference in ductility is mainly attributed to the transformation of the retained austenite blocks into strain-induced martensite during deformation.
