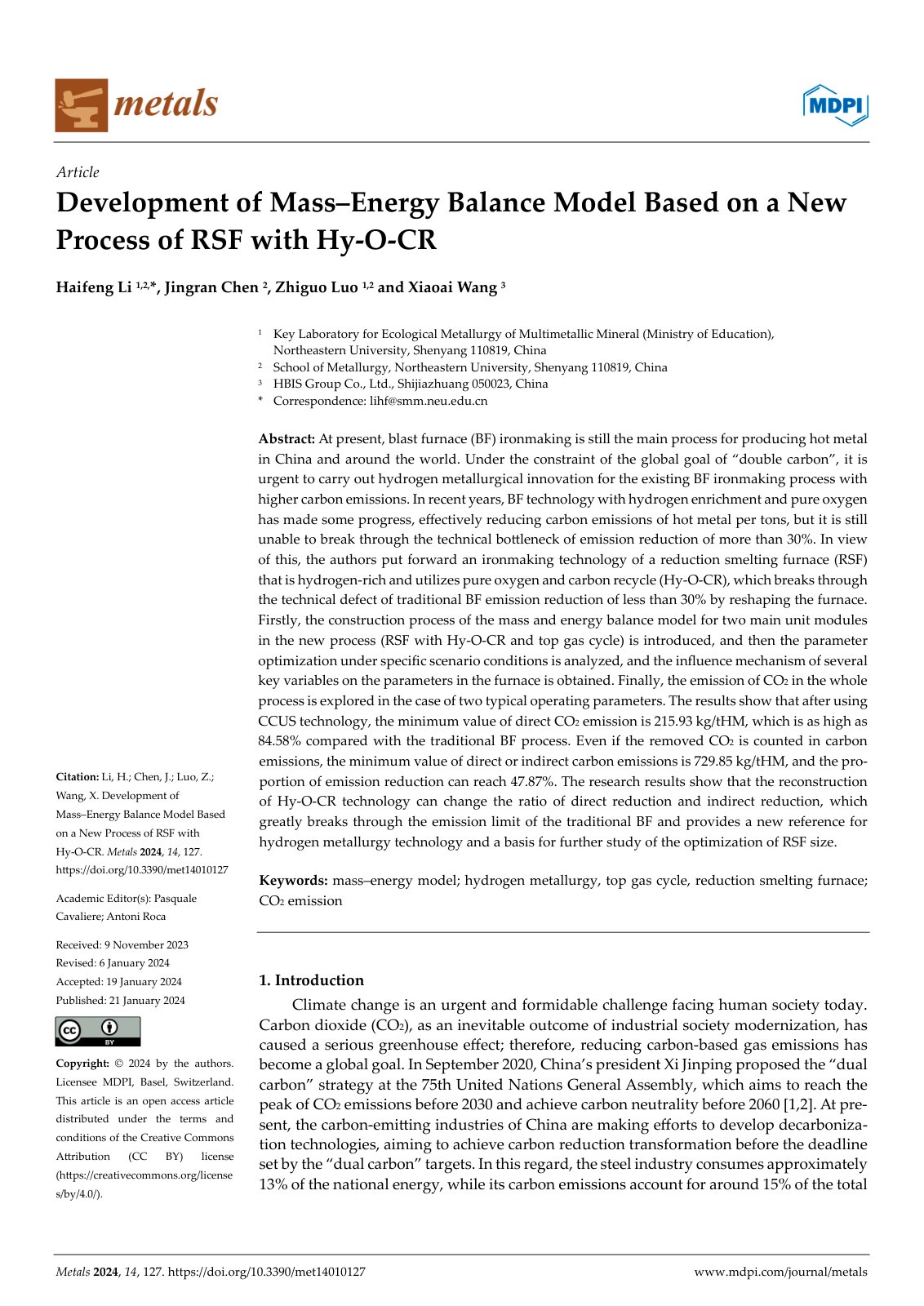

Metals 2024, 14, 127. https://doi.org/10.3390/met14010127

At present, blast furnace (BF) ironmaking is still the main process for producing hot metal in China and around the world. Under the constraint of the global goal of 'double carbon', it is urgent to carry out hydrogen metallurgical innovation for the existing BF ironmaking process with higher carbon emissions. In recent years, BF technology with hydrogen enrichment and pure oxygen has made some progress, effectively reducing carbon emissions of hot metal per tons, but it is still unable to break through the technical bottleneck of emission reduction of more than 30%. In view of this, the authors put forward an ironmaking technology of a reduction smelting furnace (RSF) that is hydrogen-rich and utilizes pure oxygen and carbon recycle (Hy-O-CR), which breaks through the technical defect of traditional BF emission reduction of less than 30% by reshaping the furnace. Firstly, the construction process of the mass and energy balance model for two main unit modules in the new process (RSF with Hy-O-CR and top gas cycle) is introduced, and then the parameter optimization under specific scenario conditions is analyzed, and the influence mechanism of several key variables on the parameters in the furnace is obtained. Finally, the emission of CO2 in the whole process is explored in the case of two typical operating parameters. The results show that after using CCUS technology, the minimum value of direct CO2 emission is 215.93 kg/tHM, which is as high as 84.58% compared with the traditional BF process. Even if the removed CO2 is counted in carbon emissions, the minimum value of direct or indirect carbon emissions is 729.85 kg/tHM, and the proportion of emission reduction can reach 47.87%. The research results show that the reconstruction of Hy-O-CR technology can change the ratio of direct reduction and indirect reduction, which greatly breaks through the emission limit of the traditional technology.
