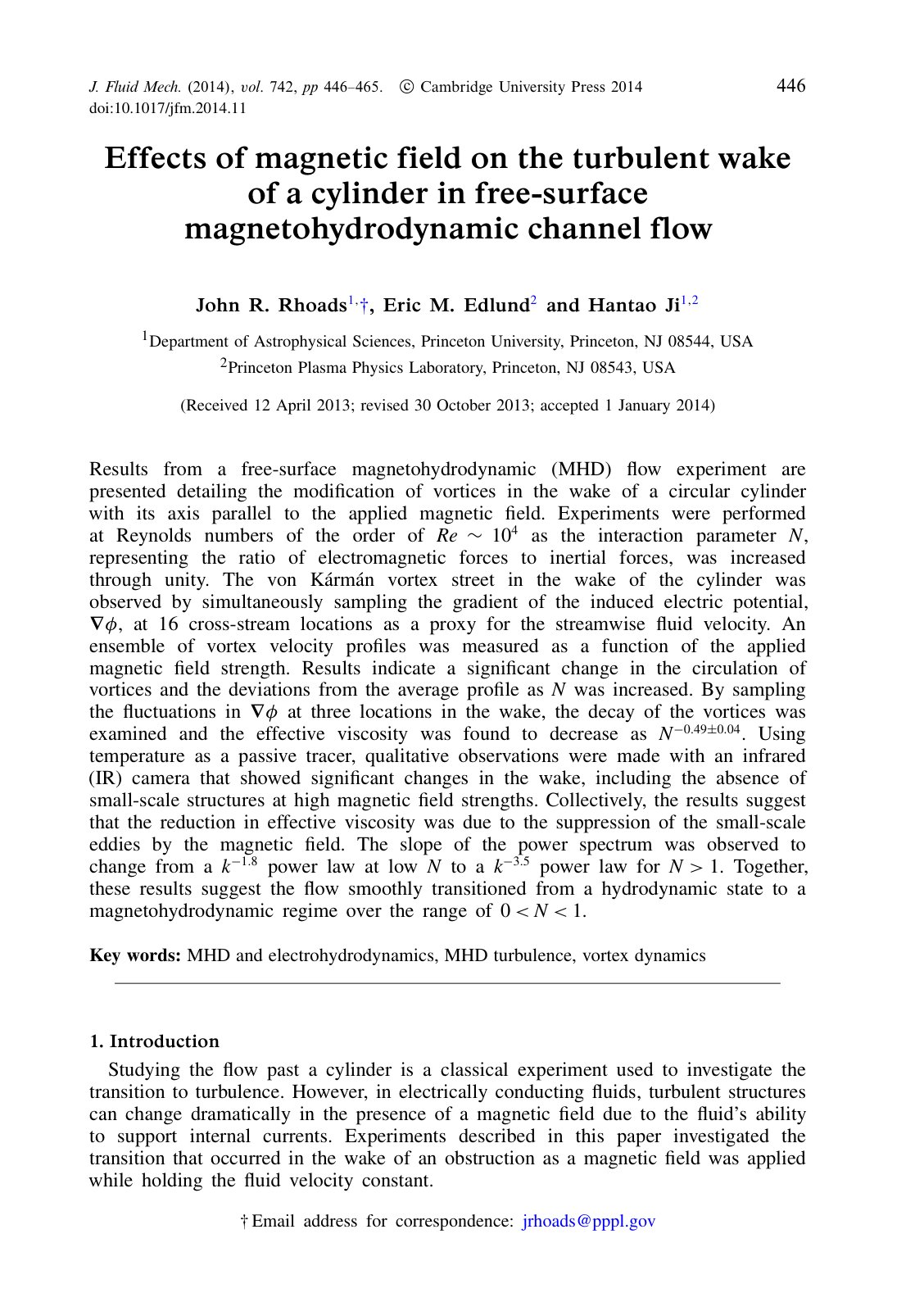

Effects of magnetic field on the turbule

Results from a free-surface magnetohydrodynamic (MHD) flow experiment are presented detailing the modification of vortices in the wake of a circular cylinder with its axis parallel to the applied magnetic field. Experiments were performed at Reynolds numbers of the order of Re ∼ 10^4 as the interaction parameter N, representing the ratio of electromagnetic forces to inertial forces, was increased through unity. The von Kármán vortex street in the wake of the cylinder was observed by simultaneously sampling the gradient of the induced electric potential, ∇φ, at 16 cross-stream locations as a proxy for the streamwise fluid velocity. An ensemble of vortex velocity profiles was measured as a function of the applied magnetic field strength. Results indicate a significant change in the circulation of vortices and the deviations from the average profile as N was increased. By sampling the fluctuations in ∇φ at three locations in the wake, the decay of the vortices was examined and the effective viscosity was found to decrease as N−0.49±0.04. Using temperature as a passive tracer, qualitative observations were made with an infrared (IR) camera that showed significant changes in the wake, including the absence of small-scale structures at high magnetic field strengths. Collectively, the results suggest that the reduction in effective viscosity was due to the suppression of the small-scale eddies by the magnetic field.
