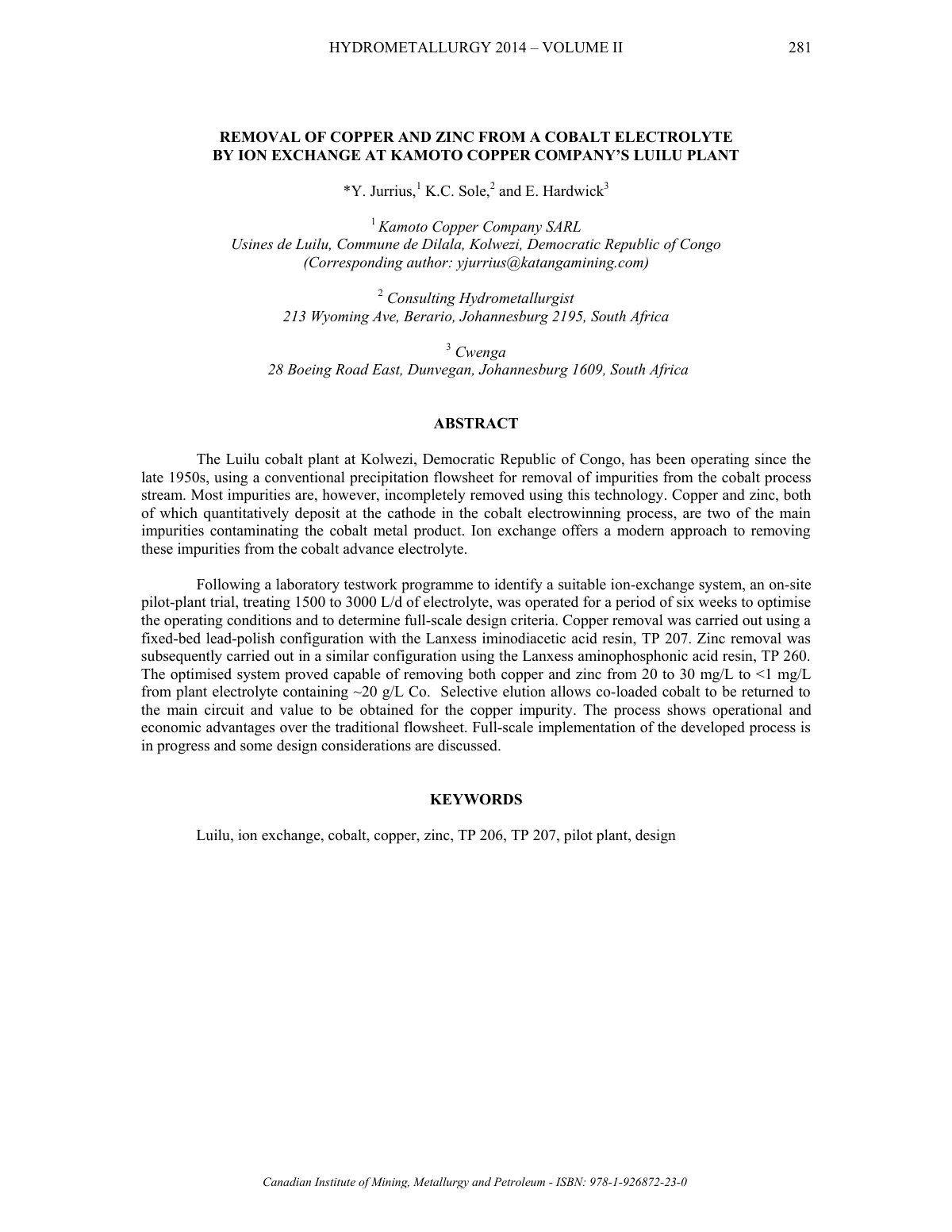

REMOVAL OF COPPER AND ZINC FROM A COBALT ELECTROLYTE BY ION EXCHANGE AT KAMOTO COPPER COMPANY’S LUILU PLANT

The Luilu cobalt plant at Kolwezi, Democratic Republic of Congo, has been operating since the late 1950s, using a conventional precipitation flowsheet for removal of impurities from the cobalt process stream. Most impurities are, however, incompletely removed using this technology. Copper and zinc, both of which quantitatively deposit at the cathode in the cobalt electrowinning process, are two of the main impurities contaminating the cobalt metal product. Ion exchange offers a modern approach to removing these impurities from the cobalt advance electrolyte. Following a laboratory testwork programme to identify a suitable ion-exchange system, an on-site pilot-plant trial, treating 1500 to 3000 L/d of electrolyte, was operated for a period of six weeks to optimise the operating conditions and to determine full-scale design criteria. Copper removal was carried out using a fixed-bed lead-polish configuration with the Lanxess iminodiacetic acid resin, TP 207. Zinc removal was subsequently carried out in a similar configuration using the Lanxess aminophosphonic acid resin, TP 260. The optimised system proved capable of removing both copper and zinc from 20 to 30 mg/L to <1 mg/L from plant electrolyte containing ~20 g/L Co. Selective elution allows co-loaded cobalt to be returned to the main circuit and value to be obtained for the copper impurity. The process shows operational and economic advantages over the traditional flowsheet. Full-scale implementation of the developed process is in progress and some design considerations are discussed.
