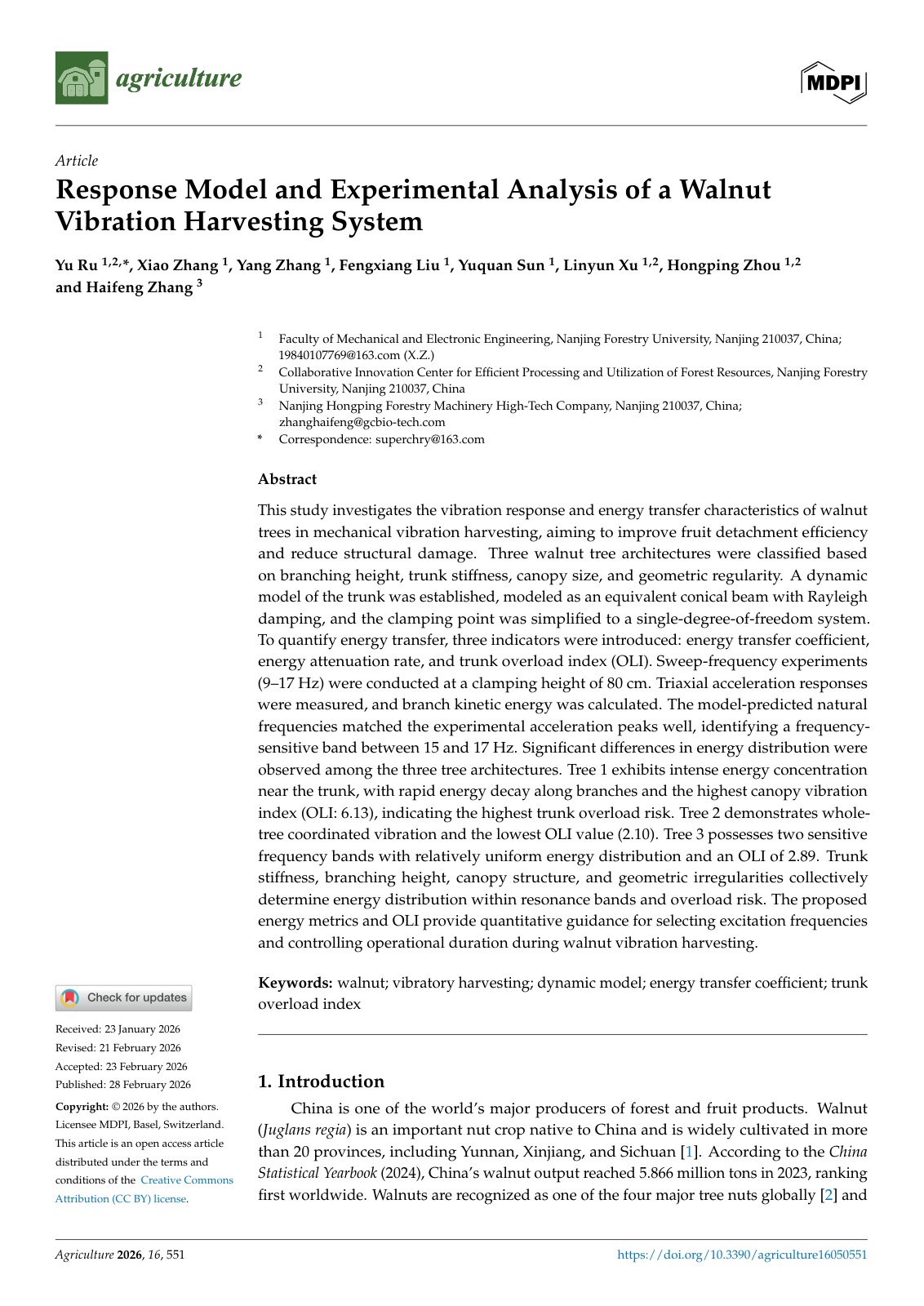

Response Model and Experimental Analysis of a Waln

This study investigates the vibration response and energy transfer characteristics of walnut trees in mechanical vibration harvesting, aiming to improve fruit detachment efficiency and reduce structural damage. Three walnut tree architectures were classified based on branching height, trunk stiffness, canopy size, and geometric regularity. A dynamic model of the trunk was established, modeled as an equivalent conical beam with Rayleigh damping, and the clamping point was simplified to a single-degree-of-freedom system. To quantify energy transfer, three indicators were introduced: energy transfer coefficient, energy attenuation rate, and trunk overload index (OLI). Sweep-frequency experiments (9–17 Hz) were conducted at a clamping height of 80 cm. Triaxial acceleration responses were measured, and branch kinetic energy was calculated. The model-predicted natural frequencies matched the experimental acceleration peaks well, identifying a frequency-sensitive band between 15 and 17 Hz. Significant differences in energy distribution were observed among the three tree architectures. Trunk stiffness, branching height, canopy structure, and geometric irregularities collectively determine energy distribution within resonance bands and overload risk. The proposed energy metrics and OLI provide quantitative guidance for selecting excitation frequencies and controlling operational duration during walnut vibration harvesting.
