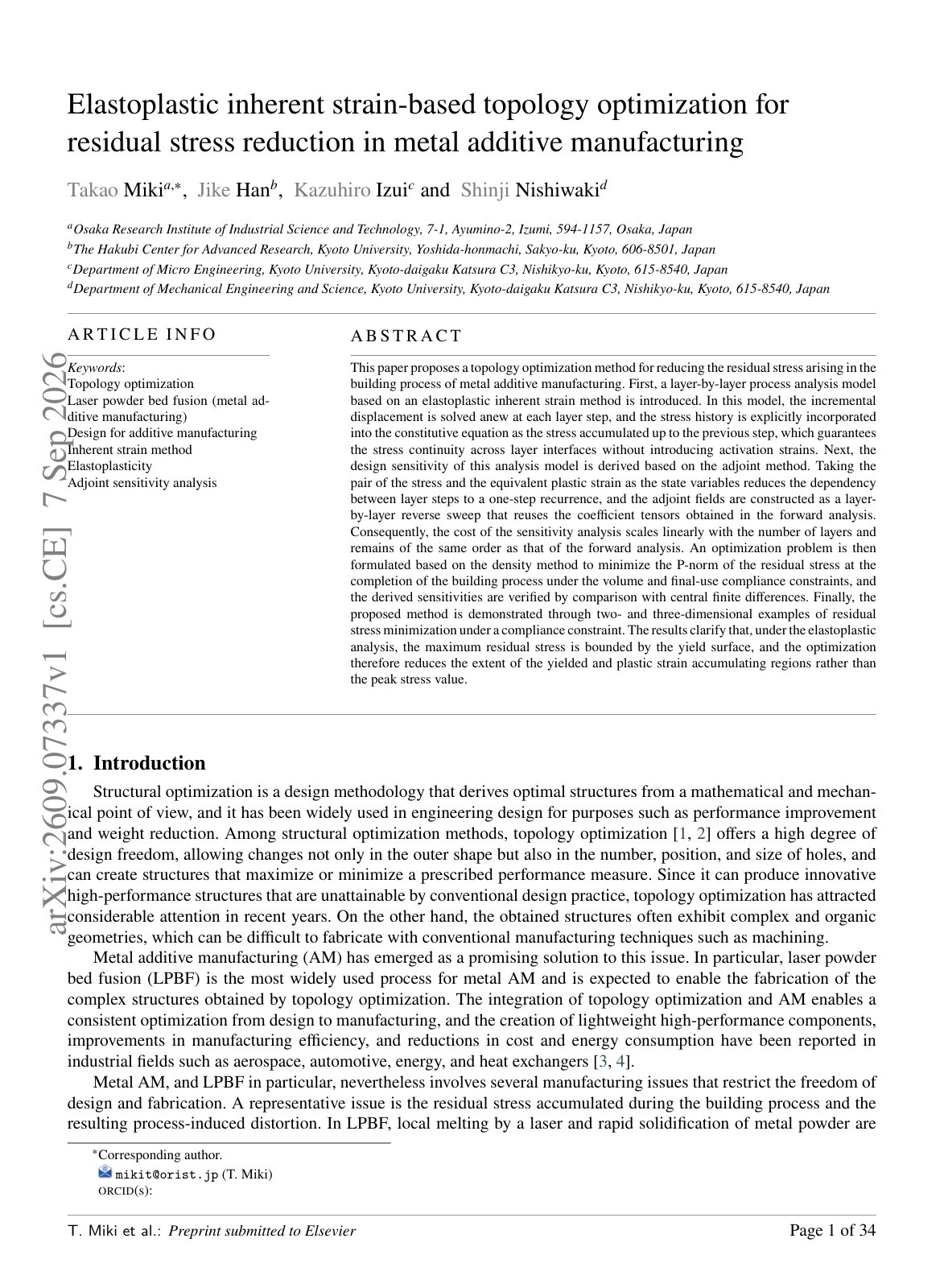

Topology optimization method for reducing residual stress in metal additive manufacturing

This paper proposes a topology optimization method for reducing the residual stress arising in the building process of metal additive manufacturing. First, a layer-by-layer process analysis model based on an elastoplastic inherent strain method is introduced. In this model, the incremental displacement is solved anew at each layer step, and the stress history is explicitly incorporated into the constitutive equation as the stress accumulated up to the previous step, which guarantees the stress continuity across layer interfaces without introducing activation strains. Next, the design sensitivity of this analysis model is derived based on the adjoint method. Taking the pair of the stress and the equivalent plastic strain as the state variables reduces the dependency between layer steps to a one-step recurrence, and the adjoint fields are constructed as a layer-by-layer reverse sweep that reuses the coefficient tensors obtained in the forward analysis. Consequently, the cost of the sensitivity analysis scales linearly with the number of layers and remains of the same order as that of the forward analysis. An optimization problem is then formulated based on the density method to minimize the P-norm of the residual stress at the completion of the building process under the volume and final-use compliance constraints, and the derived sensitivities are verified by comparison with central finite differences. Finally, the proposed method is demonstrated through two- and three-dimensional examples of residual stress minimization under a compliance constraint.
