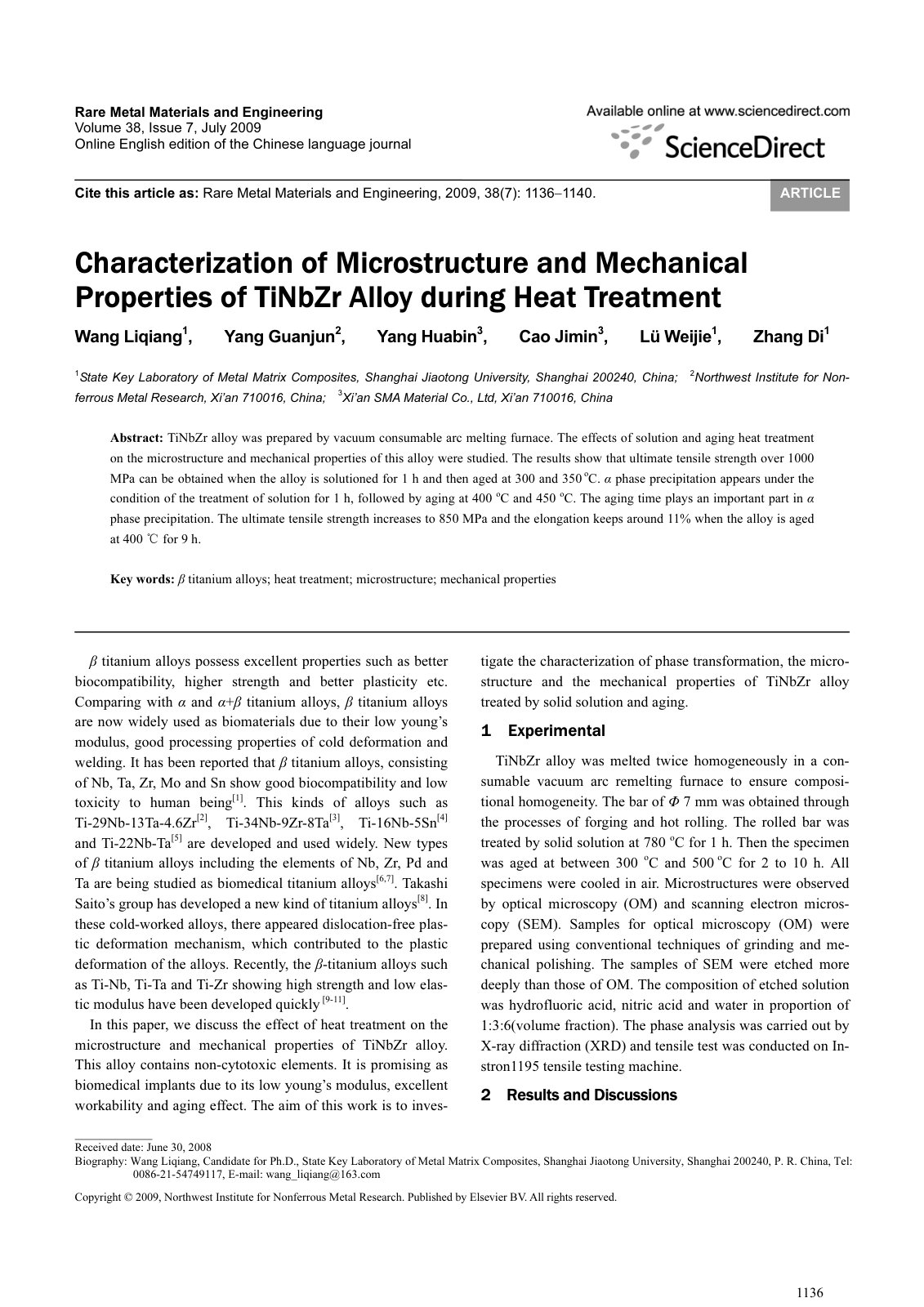

Wang Liqiang, Yang Guanjun
TiNbZr alloy was prepared by vacuum consumable arc melting furnace. The effects of solution and aging heat treatment on the microstructure and mechanical properties of this alloy were studied. The results show that ultimate tensile strength over 1000 MPa can be obtained when the alloy is solutioned for 1 h and then aged at 300 and 350 oC. α phase precipitation appears under the condition of the treatment of solution for 1 h, followed by aging at 400 oC and 450 oC. The aging time plays an important part in α phase precipitation. The ultimate tensile strength increases to 850 MPa and the elongation keeps around 11% when the alloy is aged at 400 oC for 9 h.
@article{447819f4-7ca8-4aa2-9049-92bbf399c3cb,
title={Characterization of the Microstructure a},
author={Wang Liqiang and Yang Guanjun},
year={2026},
language={en}
}TY - JOUR TI - Characterization of the Microstructure a AU - Wang Liqiang AU - Yang Guanjun PY - 2026 LA - en ER -
Robert A. Francis
This document serves as a comprehensive introduction to the metallurgy of steel and its alloys, focusing on various aspects of iron and steel manufact
Mirjana Filipović, Željko Kamberović, Marija Korać
Experimental results indicate that the volume fraction of the carbide phase, carbide size and distribution had an important influence on the wear resi
Unknown, Unknown
This chapter discusses metal casting processes, highlighting the diversity and common characteristics among them. The objective is to elucidate the fu
Unknown, Unknown
This study focuses on the fundamental characteristics of solid iron, which is predominantly composed of iron atoms and provides a basis for understand
