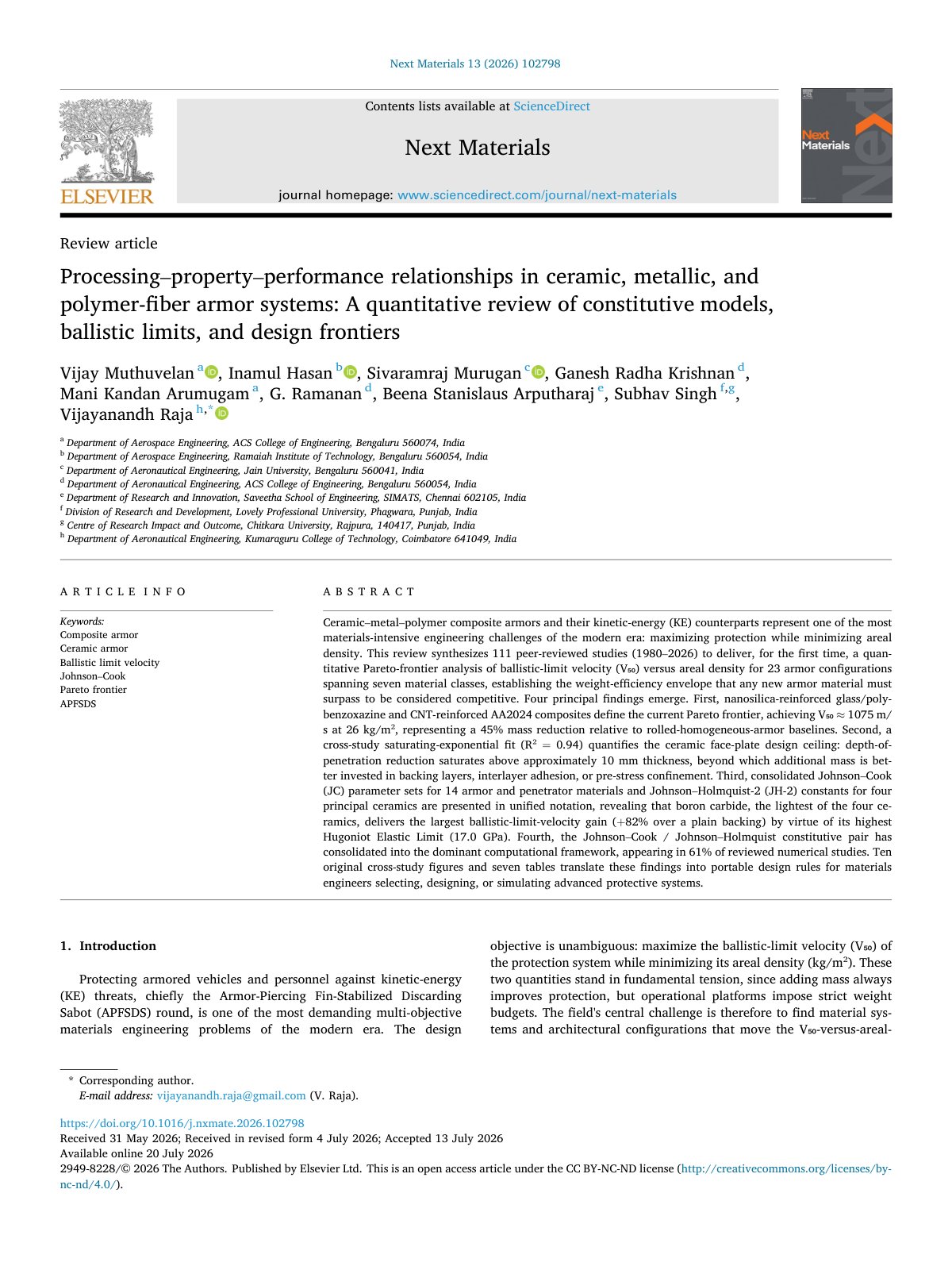

Processing property performance relationships in ceramic metallic 2026 Next

Ceramic – metal – polymer composite armors and their kinetic-energy (KE) counterparts represent one of the most materials-intensive engineering challenges of the modern era: maximizing protection while minimizing areal density. This review synthesizes 111 peer-reviewed studies (1980 – 2026) to deliver, for the first time, a quantitative Pareto-frontier analysis of ballistic-limit velocity (V ₅₀ ) versus areal density for 23 armor configurations spanning seven material classes, establishing the weight-efficiency envelope that any new armor material must surpass to be considered competitive. Four principal findings emerge. First, nanosilica-reinforced glass/polybenzoxazine and CNT-reinforced AA2024 composites define the current Pareto frontier, achieving V ₅₀ ≈ 1075 m/s at 26 kg/m², representing a 45% mass reduction relative to rolled-homogeneous-armor baselines. Second, a cross-study saturating-exponential fit (R² = 0.94) quantifies the ceramic face-plate design ceiling: depth-of-penetration reduction saturates above approximately 10 mm thickness, beyond which additional mass is better invested in backing layers, interlayer adhesion, or pre-stress confinement.
