PouI Lenvig Hansen, Claus Qvist

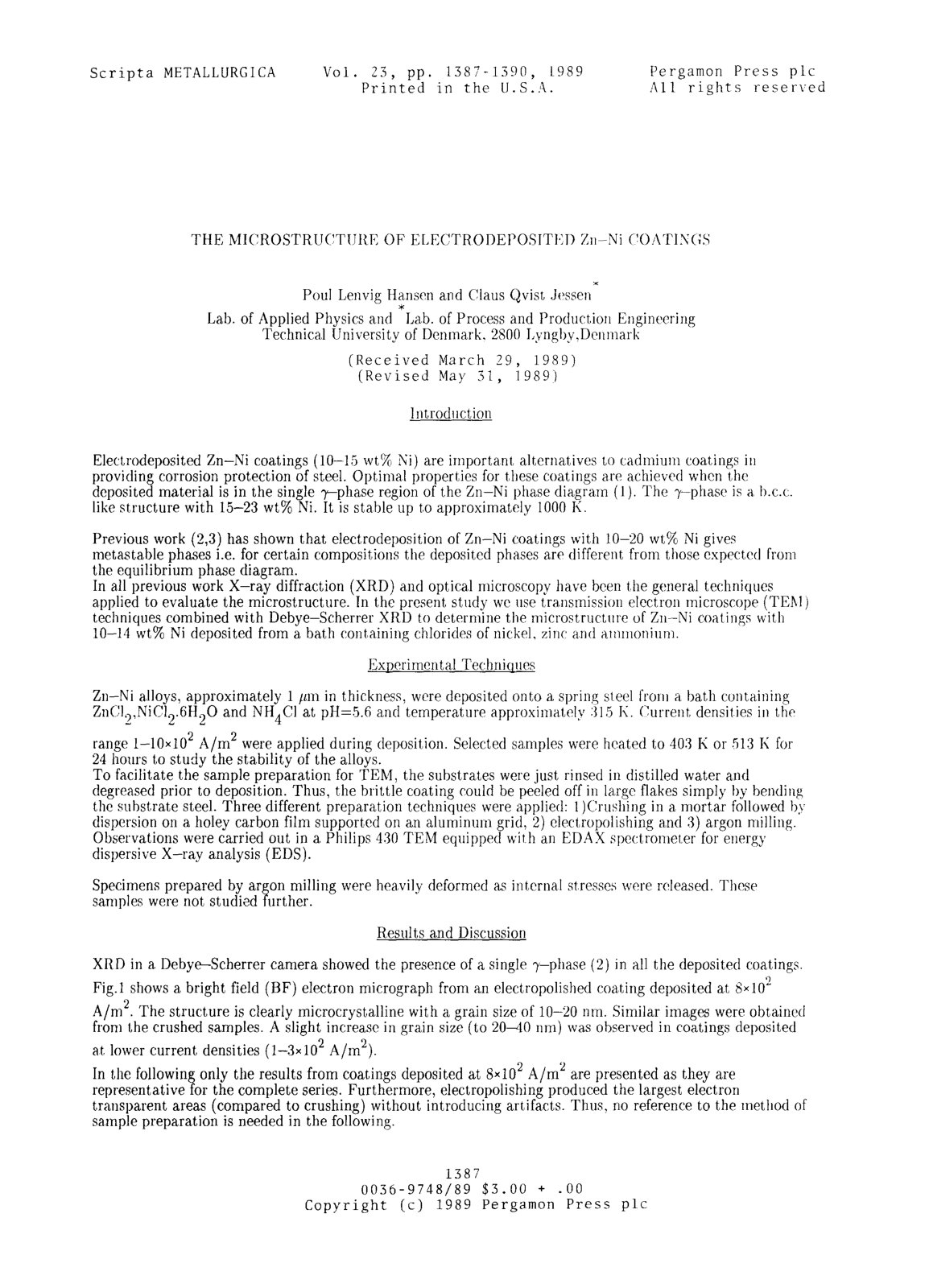

Electrodeposited Zn-Ni coatings (10-15 wt% Ni) serve as effective alternatives to cadmium coatings for corrosion protection of steel. The objective of this study was to investigate the microstructure of Zn-Ni coatings with 10-14 wt% Ni through advanced techniques. We utilized transmission electron microscopy (TEM) combined with Debye-Scherrer X-ray diffraction (XRD) to analyze the coating microstructure formed from a chloride bath. Coatings were deposited on spring steel at a pH of 5.6 and a temperature of approximately 315 K, employing current densities ranging from 1-10x10^2 A/m^2. Several preparation techniques were employed, including crushing, electropolishing, and argon milling, to observe microstructural characteristics accurately. The results indicated that the size of the crystallites ranged from 10-40 nm, with the coatings maintaining stability at 403 K, while a transition to the β-phase occurred at 513 K. Notably, the coatings exhibited groups of small crystallites aligned along a common crystallographic axis, emphasizing the complex microstructural features present in the coatings. This research enhances the understanding of the stability and microstructural behavior of Zn-Ni coatings under varying thermal conditions.
@article{4dd1b901-6403-4a64-9b7c-f50a41836665,
title={THE MICROSTRUCTUf{E OF ELE(TrRODEPOSITEI) Zn-Ni COATINGS},
author={PouI Lenvig Hansen and Claus Qvist},
year={1989},
language={en}
}TY - JOUR
TI - THE MICROSTRUCTUf{E OF ELE(TrRODEPOSITEI) Zn-Ni COATINGS
AU - PouI Lenvig Hansen
AU - Claus Qvist
PY - 1989
LA - en
ER -David A. Scott
This work discusses the intricacies of metallography and the microstructure present in ancient and historic metals, aiming to elucidate the methods an
G.E. Hicho, W.J. Boettinger
This study examines a mishap section and other selected sections made from 17-7 precipitation hardening stainless steel, revealing an unusually large
G.E.Hicho, W.J.Boettinger
We have examined the failed or "mishap" section, and other selected sections made from 17-7 precipitation hardening stainless steel, and have conclude
E.N. Pugh, J.H. Smith
This report summarizes the FY1988 activities of the Metallurgy Division of the National Institute of Standards and Technology (NIST). The research cen
E.N. Pugh, J.H. Smith
This report summarizes the FY1988 activities of the Metallurgy Division of the National Institute of Standards and Technology (NIST). The research cen
Muffakham Jah College of Engineering and Technology
This document outlines the experiments conducted in the Metallography course for the academic year 2021-2022 at Muffakham Jah College of Engineering a
