Pingli Mao, Yan Xin

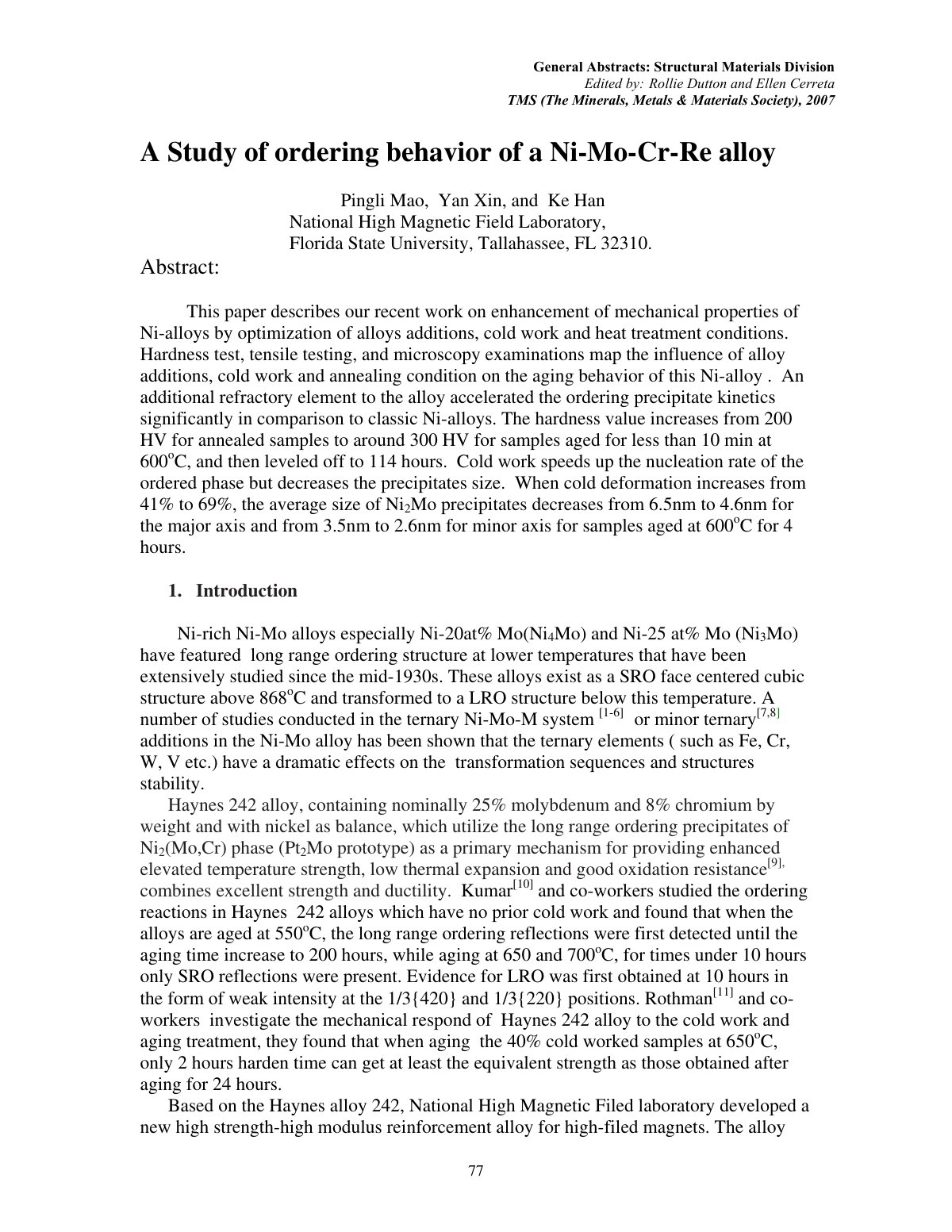

This paper describes our recent work on enhancement of mechanical properties of Ni-alloys by optimization of alloys additions, cold work and heat treatment conditions. Hardness test, tensile testing, and microscopy examinations map the influence of alloy additions, cold work and annealing condition on the aging behavior of this Ni-alloy. An additional refractory element to the alloy accelerated the ordering precipitate kinetics significantly in comparison to classic Ni-alloys. The hardness value increases from 200 HV for annealed samples to around 300 HV for samples aged for less than 10 min at 600 oC, and then leveled off to 114 hours. Cold work speeds up the nucleation rate of the ordered phase but decreases the precipitates size. When cold deformation increases from 41% to 69%, the average size of Ni2Mo precipitates decreases from 6.5nm to 4.6nm for the major axis and from 3.5nm to 2.6nm for minor axis for samples aged at 600oC for 4 hours.
@article{57682420-7a20-4c31-b45f-be385922f806,
title={A Study of ordering behavior of a Ni-Mo-Cr-Re alloy},
author={Pingli Mao and Yan Xin},
year={2023},
language={en}
}TY - JOUR TI - A Study of ordering behavior of a Ni-Mo-Cr-Re alloy AU - Pingli Mao AU - Yan Xin PY - 2023 LA - en ER -
Robert A. Francis
This document serves as a comprehensive introduction to the metallurgy of steel and its alloys, focusing on various aspects of iron and steel manufact
Thomas G. Digges, Samuel J. Rosenberg
This monograph presents a comprehensive exploration of the heat treatment processes and the resulting properties of iron and steel, critical materials
Xiaomei Li
The ever growing demands for high strength aluminium alloys in the aerospace industry have greatly enhanced the development of alloy chemistry and the
Thomas G. Digges, Samuel J. Rosenberg
This report presents a comprehensive analysis of the heat treatment processes and properties of iron and steel. The objective is to elucidate the meth
G. R. Smolik, W. G. Reuter
This technical report addresses the challenges faced during the heat treatment of PBF acoustic filter Unit No. 1, which experienced cracking during in
