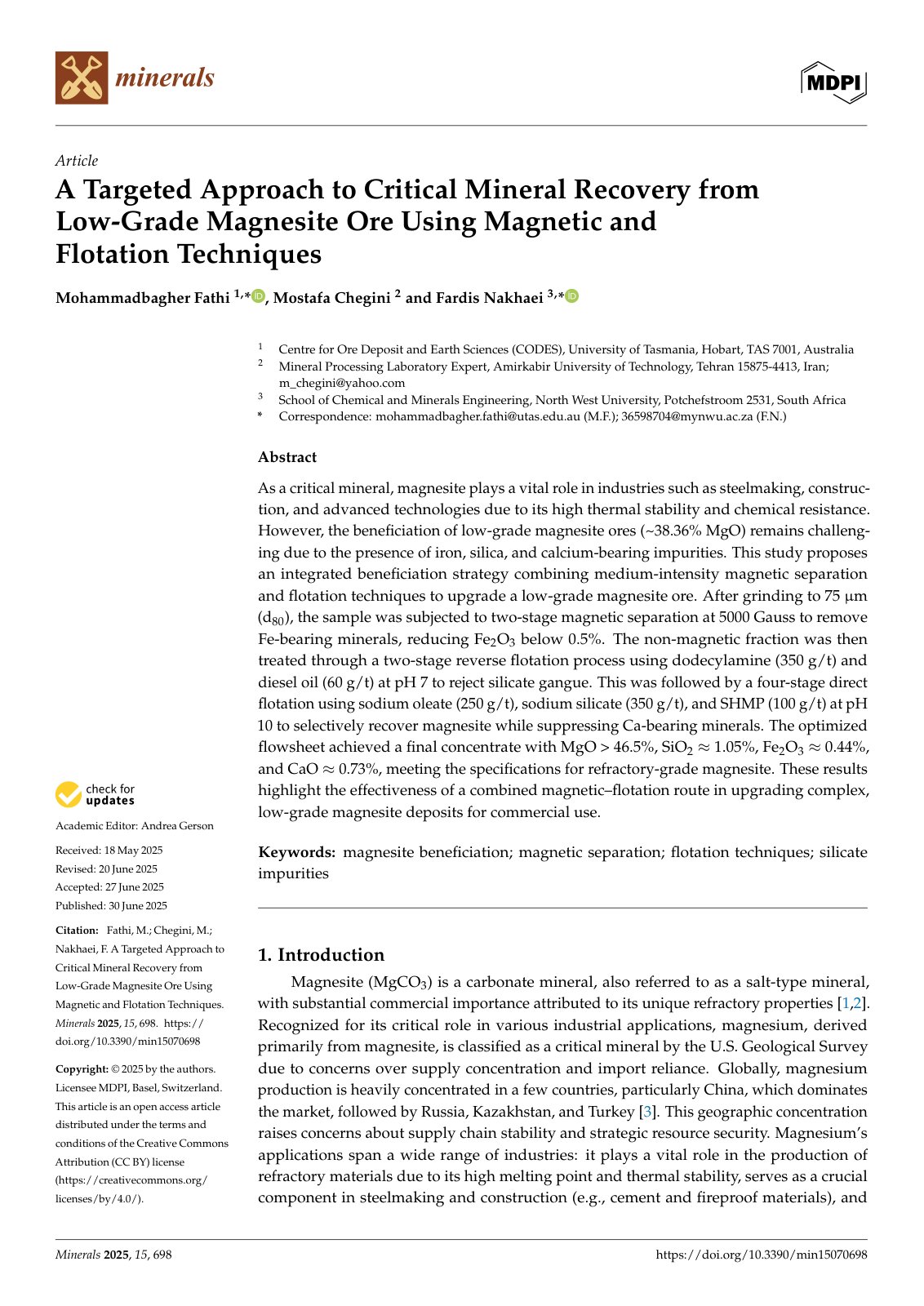

A Targeted Approach to Critical Mineral Recovery from Low-Grade Magnesite Ore Using Magnetic and Flotation Techniques

As a critical mineral, magnesite plays a vital role in industries such as steelmaking, construction, and advanced technologies due to its high thermal stability and chemical resistance. However, the beneficiation of low-grade magnesite ores (~38.36% MgO) remains challenging due to the presence of iron, silica, and calcium-bearing impurities. This study proposes an integrated beneficiation strategy combining medium-intensity magnetic separation and flotation techniques to upgrade a low-grade magnesite ore. After grinding to 75 µm (d80), the sample was subjected to two-stage magnetic separation at 5000 Gauss to remove Fe-bearing minerals, reducing Fe2O3 below 0.5%. The non-magnetic fraction was then treated through a two-stage reverse flotation process using dodecylamine (350 g/t) and diesel oil (60 g/t) at pH 7 to reject silicate gangue. This was followed by a four-stage direct flotation using sodium oleate (250 g/t), sodium silicate (350 g/t), and SHMP (100 g/t) at pH 10 to selectively recover magnesite while suppressing Ca-bearing minerals. The optimized flowsheet achieved a final concentrate with MgO > 46.5%, SiO2 ≈ 1.05%, Fe2O3 ≈ 0.44%, and CaO ≈ 0.73%, meeting the specifications for refractory-grade magnesite. These results highlight the effectiveness.
