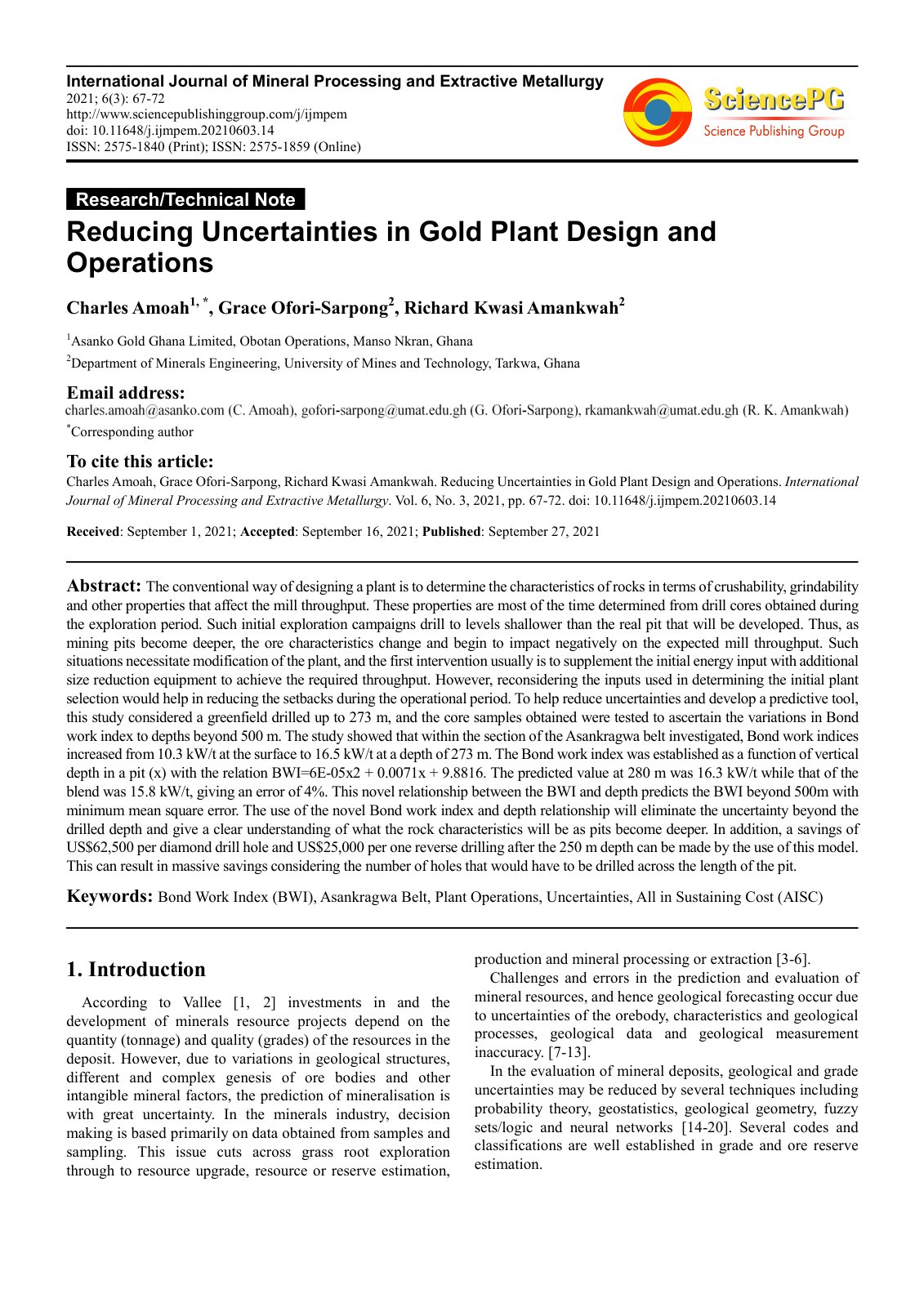

Reducing Uncertainties in Gold Plant Des

The conventional way of designing a plant is to determine the characteristics of rocks in terms of crushability, grindability and other properties that affect mill throughput. These properties are most of the time determined from drill cores obtained during the exploration period. Such initial exploration campaigns drill to levels shallower than the real pit that will be developed. Thus, as mining pits become deeper, the ore characteristics change and begin to impact negatively on the expected mill throughput. Such situations necessitated modification of the plant, and the first intervention usually is to supplement the initial energy input with additional size reduction equipment to achieve the required throughput. However, reconsidering the inputs used in determining the initial plant selection would help in reducing the setbacks during the operational period. To help reduce uncertainties and develop a predictive tool, this study considered a greenfield drilled up to 273 m, and the core samples obtained were tested to ascertain the variations in Bond work index to depths beyond 500 m. The study showed that within the section of the Asankrangwa belt investigated, Bond work indices increased from 10.3 kW/t at the surface to 16.5 kW/t at a depth of 273 m. The Bond work index was established as a function of vertical depth in a pit (x) with the relation BWI= 16.052x - 0.0071x + 9.8816. The predicted value at 280 m was 16.3 kW/t while that of the bond was 15.8 kW/t, giving an error of 4%. This novel relationship between the BWI and depth predicts the BWI beyond 500 m with minimum mean square error. The use of the novel Bond work index and depth relationship will eliminate the uncertainty beyond the drilled depth and give a clear understanding of what the rock characteristics will be as pits become deeper.
