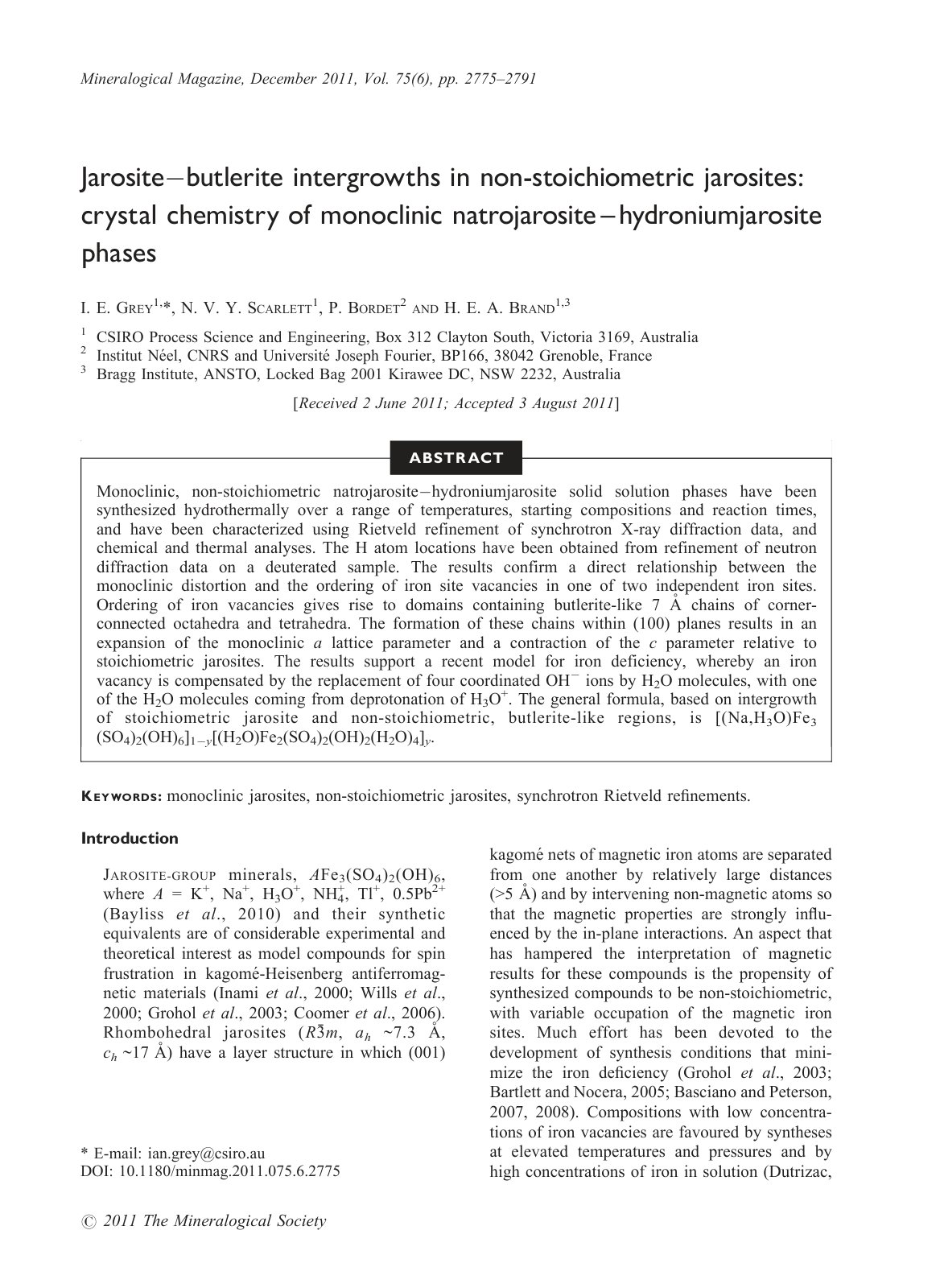

Jarosite/C0butlerite intergrowths in non-stoichiometric jarosites: crystal chemistry of monoclinic natrojarosite^hydroniumjarosite phases

Monoclinic, non-stoichiometric natrojarosite /C0hydroniumjarosite solid solution phases have been synthesized hydrothermally over a range of temperatures, starting compositions, and reaction times, and have been characterized using Rietveld refinement of synchrotron X-ray diffraction data, as well as chemical and thermal analyses. The H atom locations have been obtained from refinement of neutron diffraction data on a deuterated sample. The results confirm a direct relationship between the monoclinic distortion and the ordering of iron site vacancies in one of two independent iron sites. Ordering of iron vacancies gives rise to domains containing butlerite-like 7 A˚ chains of corner-connected octahedra and tetrahedra. The formation of these chains within (100) planes results in an expansion of the monoclinic a lattice parameter and a contraction of the c parameter relative to stoichiometric jarosites. The results support a recent model for iron deficiency, whereby an iron vacancy is compensated by the replacement of four coordinated OH/C0 ions by H2O molecules, with one of the H2O molecules coming from deprotonation of H3O+. The general formula, based on intergrowth of stoichiometric jarosite and non-stoichiometric, butlerite-like regions, is [(Na,H3O)Fe3(SO4)2(OH)6]1/C0y[(H2O)Fe2(SO4)2(OH)2(H2O)4]y.
