Clélia Ribeiro de Oliveira, Eloá Lopes Maia

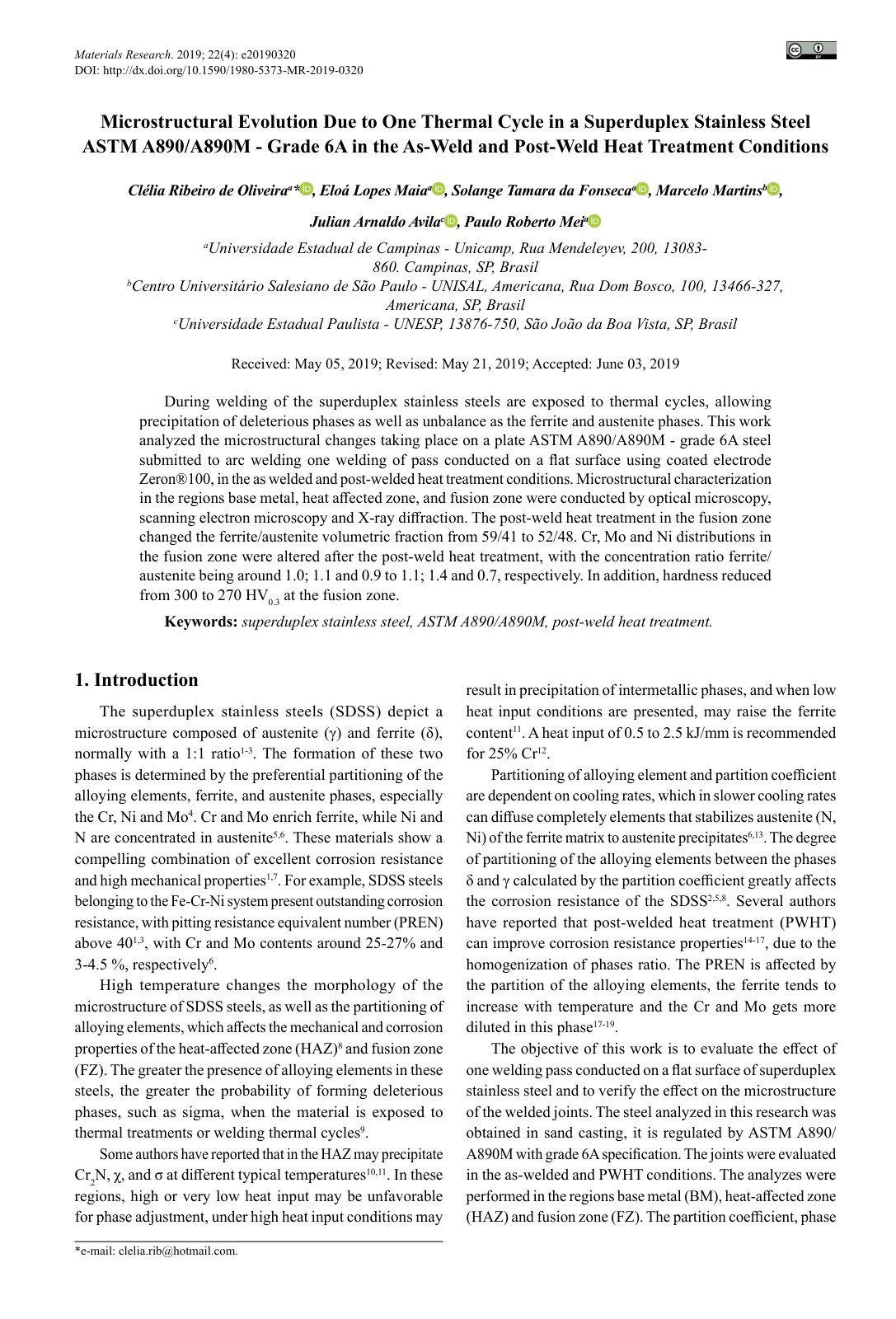

Durante o processo de soldagem dos aços inoxidáveis superduplex, são expostos a ciclos térmicos que promovem a precipitação de fases prejudiciais, além do desequilíbrio nas fases ferrita e austenita. Este trabalho analisou as alterações microestruturais que ocorrem em uma chapa de aço ASTM A890/A890M - grau 6A, submetida à soldagem com um passe de solda realizado em superfície plana usando eletrodo revestido Zeron®100, nas condições como soldado e pós-tratamento térmico. A caracterização microestrutural nas regiões do metal base, zona afetada pelo calor e zona de fusão foi realizada por meio de microscopia óptica, microscopia eletrônica de varredura e difração de raios X. O tratamento térmico pós-soldagem na zona de fusão alterou a fração volumétrica de ferrita/austenita de 59/41 para 52/48. As distribuições de Cr, Mo e Ni na zona de fusão foram alteradas após o tratamento térmico pós-soldagem, com a razão de concentração de ferrita/austenita variando de aproximadamente 1.0; 1.1 para 1.1; 1.4 e 0.9. Além disso, a dureza reduziu de 300 para 270 HV0.3 na zona de fusão.
@article{5c47fb26-808a-4182-8e3f-24c9fe782e1a,
title={Microstructural Evolution Due to One Thermal Cycle in a Superduplex Stainless Steel ASTM A890/A890M - Grade 6A in the As-Weld and Post-Weld Heat Treatment Conditions},
author={Clélia Ribeiro de Oliveira and Eloá Lopes Maia},
year={2019},
language={pt}
}TY - JOUR TI - Microstructural Evolution Due to One Thermal Cycle in a Superduplex Stainless Steel ASTM A890/A890M - Grade 6A in the As-Weld and Post-Weld Heat Treatment Conditions AU - Clélia Ribeiro de Oliveira AU - Eloá Lopes Maia PY - 2019 LA - pt ER -
Robert A. Francis
This document serves as a comprehensive introduction to the metallurgy of steel and its alloys, focusing on various aspects of iron and steel manufact
Georg Gaiser, Robert Littringer
Surface defects are a critical indicator of semi-finished product quality, with the elements Cu and Sn exerting a significant influence through the ph
Muffakham Jah College of Engineering and Technology
This document outlines the experiments conducted in the Metallography course for the academic year 2021-2022 at Muffakham Jah College of Engineering a
Donald C. Zipperian, Ph.D.
Metallography is a critical field that focuses on the study of materials' microstructures, serving as a key tool for both ensuring product reliability
LSU
Proper preparation of metallographic specimens is essential for accurately determining their microstructure and composition. This experiment aims to f
Department of Industrial and Production Engineering
This lab manual is designed for students in the Department of Industrial and Production Engineering at Sri Jayachamarajendra College of Engineering, M
