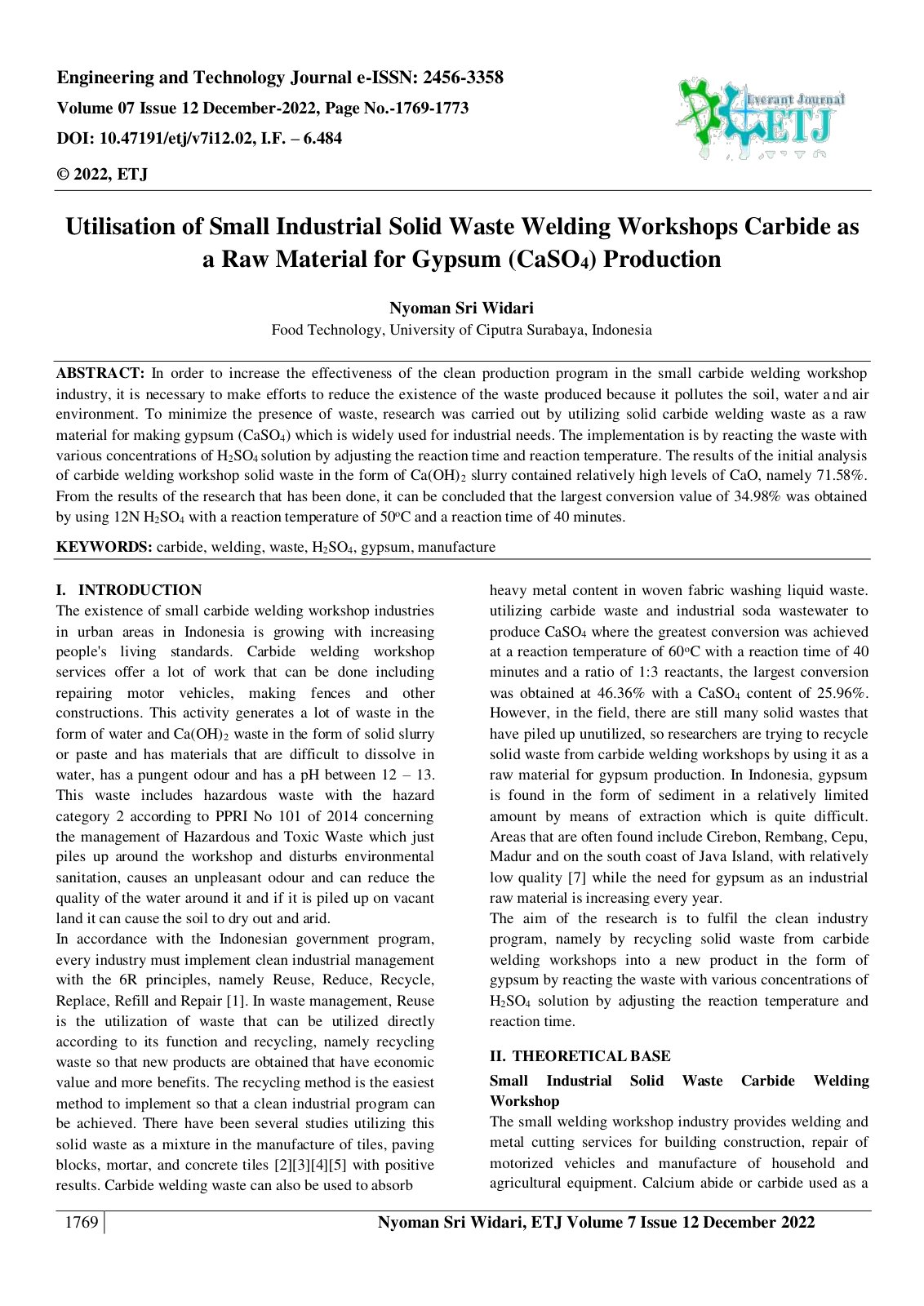

In order to support clean production in small carbide welding workshops, this study investigates the recycling of solid carbide welding waste as a raw material for gypsum (CaSO₄) manufacture. Solid waste from welding workshops, primarily in the form of Ca(OH)₂ slurry with a high CaO content (71.58%), was first calcined to obtain CaO and then reacted with sulfuric acid (H₂SO₄) under varying conditions. Experiments were conducted using 2 g of CaO and 100 ml of H₂SO₄ solution at different acid concentrations (9–12 N), reaction temperatures (30–60 °C), and reaction times (20–60 minutes), with stirring at 100 rpm. The study found that waste-derived CaO can be converted into gypsum, and the highest conversion value of 34.98% was achieved using 12 N H₂SO₄ at 50 °C for 40 minutes. This approach offers a practical method for reducing hazardous solid waste from welding workshops while contributing an alternative raw material source for the growing industrial demand for gypsum.
@article{5e77e3d4-a60f-44da-8f6d-6d635383e563,
title={eversvd,+02 (7)},
author={Unknown},
year={2026},
language={en}
}TY - JOUR TI - eversvd,+02 (7) AU - Unknown PY - 2026 LA - en ER -
Santhana Krishnan, Nor Syahidah Zulkapli
Fast industrialization has increased the demand for heavy metals, while high-grade ore natural reserves are diminishing. Therefore, alternative source
Mudila Dhanunjaya Rao, Kamalesh K. Singh
Rapid global technological development has resulted in increased production of electronic waste, which presents both challenges and opportunities in r
Increasing volumes of waste printed circuit boards from obsolete electronic equipment posed escalating environmental risks and resource losses due to
