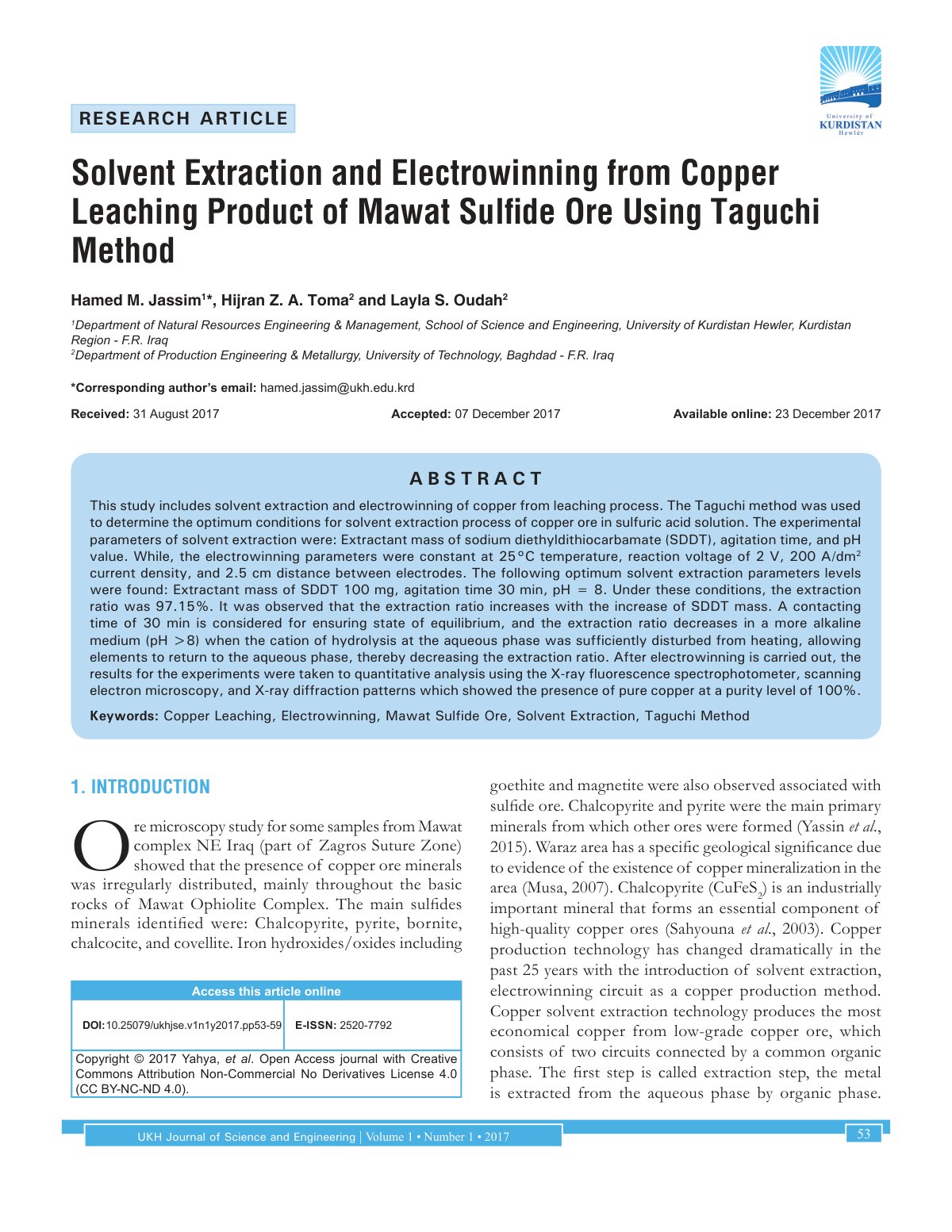

Solvent Extraction and Electrowinning from Copper Leaching Product of Mawat Sulfide Ore Using Taguchi Method

Hamed M. Jassim, Hijran Z. A. Toma

2017encoppersolvent extractionelectrowinningTaguchi methodsulfide ore

Abstract

Language:

This study includes solvent extraction and electrowinning of copper from leaching process. The Taguchi method was used to determine the optimum conditions for solvent extraction process of copper ore in sulfuric acid solution. The experimental parameters of solvent extraction were: Extractant mass of sodium diethyldithiocarbamate (SDDT), agitation time, and pH value. While, the electrowinning parameters were constant at 25°C temperature, reaction voltage of 2 V, 200 A/dm² current density, and 2.5 cm distance between electrodes. The following optimum solvent extraction parameters levels were found: Extractant mass of SDDT 100 mg, agitation time 30 min. The study's findings are significant for enhancing copper recovery processes from low-grade ores, thereby contributing to more sustainable mining practices in the region.

Download

Cite This Work

@article{5ef013cf-1b82-4913-aade-bf7dcc6cac74,
  title={Solvent Extraction and Electrowinning from Copper Leaching Product of Mawat Sulfide Ore Using Taguchi Method},
  author={Hamed M. Jassim and Hijran Z. A. Toma},
  year={2017},
  language={en}
}
TY  - JOUR
TI  - Solvent Extraction and Electrowinning from Copper Leaching Product of Mawat Sulfide Ore Using Taguchi Method
AU  - Hamed M. Jassim
AU  - Hijran Z. A. Toma
PY  - 2017
LA  - en
ER  -
