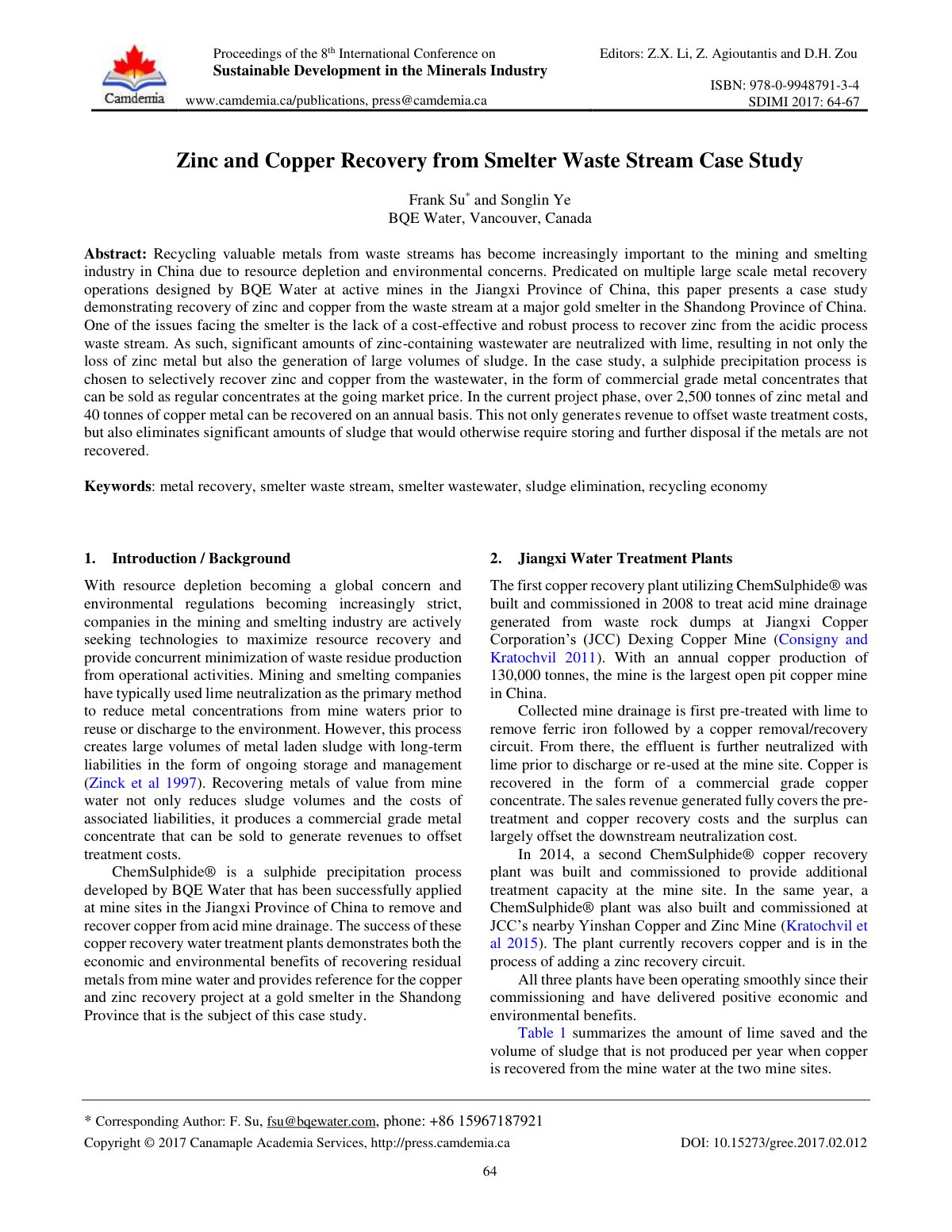

Zinc and Copper Recovery from Smelter Waste Stream Case Study

Recycling valuable metals from waste streams has become increasingly important to the mining and smelting industry in China due to resource depletion and environmental concerns. Predicated on multiple large scale metal recovery operations designed by BQE Water at active mines in the Jiangxi Province of China, this paper presents a case study demonstrating recovery of zinc and copper from the waste stream at a major gold smelter in the Shandong Province of China. One of the issues facing the smelter is the lack of a cost-effective and robust process to recover zinc from the acidic process waste stream. As such, significant amounts of zinc-containing wastewater are neutralized with lime, resulting in not only the loss of zinc metal but also the generation of large volumes of sludge. In the case study, a sulphide precipitation process is chosen to selectively recover zinc and copper from the wastewater, in the form of commercial grade metal concentrates that can be sold as regular concentrates at the going market price. In the current project phase, over 2,500 tonnes of zinc metal and 40 tonnes of copper metal can be recovered on an annual basis. This not only generates revenue to offset waste treatment costs, but also eliminates significant amounts of sludge that would otherwise require storing and further disposal if the metals are not recovered.
