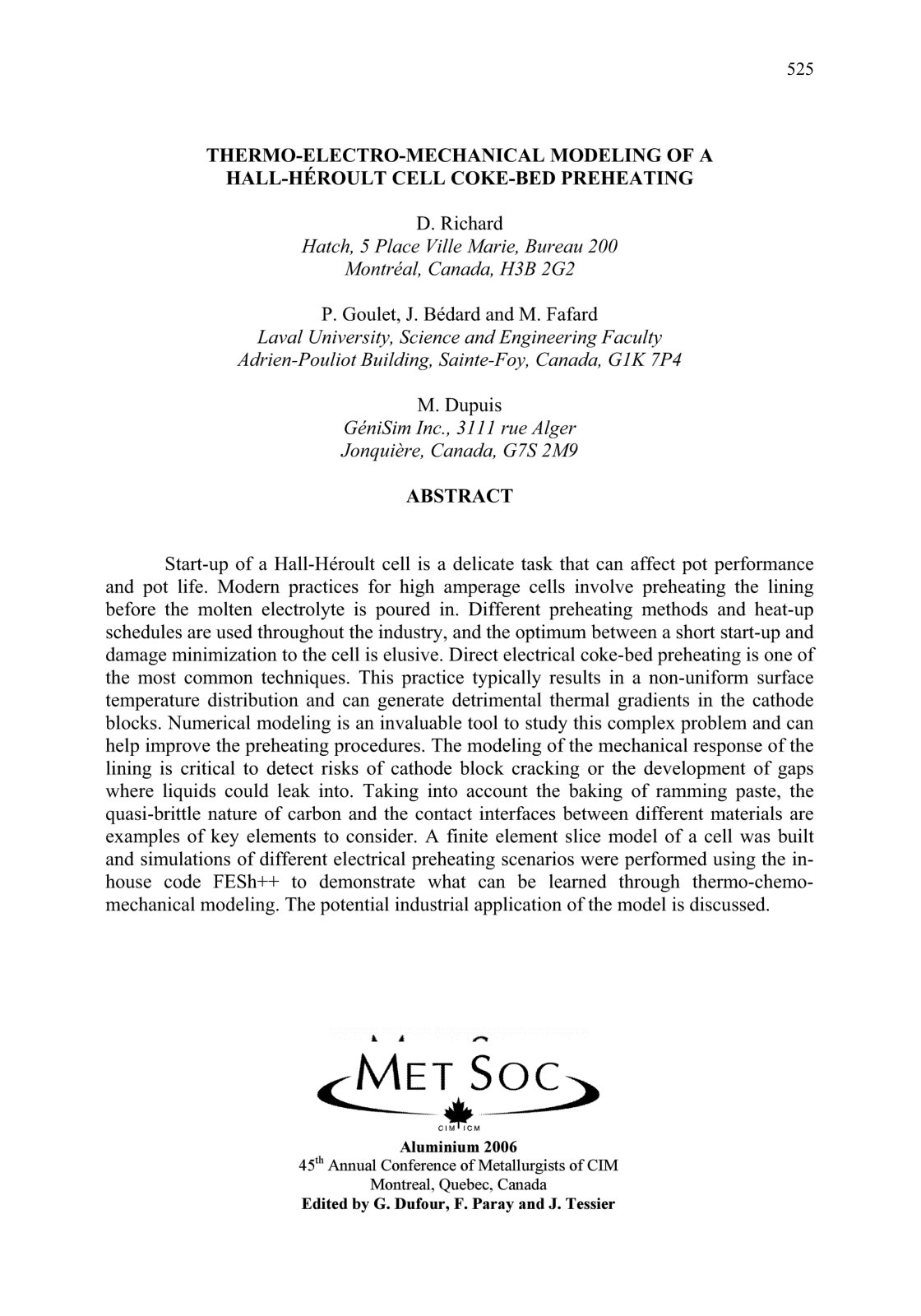

THERMO-ELECTRO-MECHANICAL MODELING OF A HALL-HEROULT CELL COKE-BED PREHEATING

Start-up of a Hall-Heroult cell is a delicate task that can affect pot performance and pot life. Modem practices for high amperage cells involve preheating the lining before the molten electrolyte is poured in. Different preheating methods and heat-up schedules are used throughout the industry, and the optimum between a short start-up and damage minimization to the cell is elusive. Direct electrical coke-bed preheating is one of the most common techniques. This practice typically results in a non-uniform surface temperature distribution and can generate detrimental thermal gradients in the cathode blocks. Numerical modeling is an invaluable tool to study this complex problem and can help improve the preheating procedures. The modeling of the mechanical response of the lining is critical to detect risks of cathode block cracking or the development of gaps where liquids could leak into. Taking into account the baking of ramming paste, the quasi-brittle nature of carbon and the contact interfaces between different materials are examples of key elements to consider. A finite element slice model of a cell was built and simulations of different electrical preheating scenarios were performed using the in-house code FESh++ to demonstrate what can be learned through thermo-chemo-mechanical modeling. The potential industrial application of the model is discussed.
