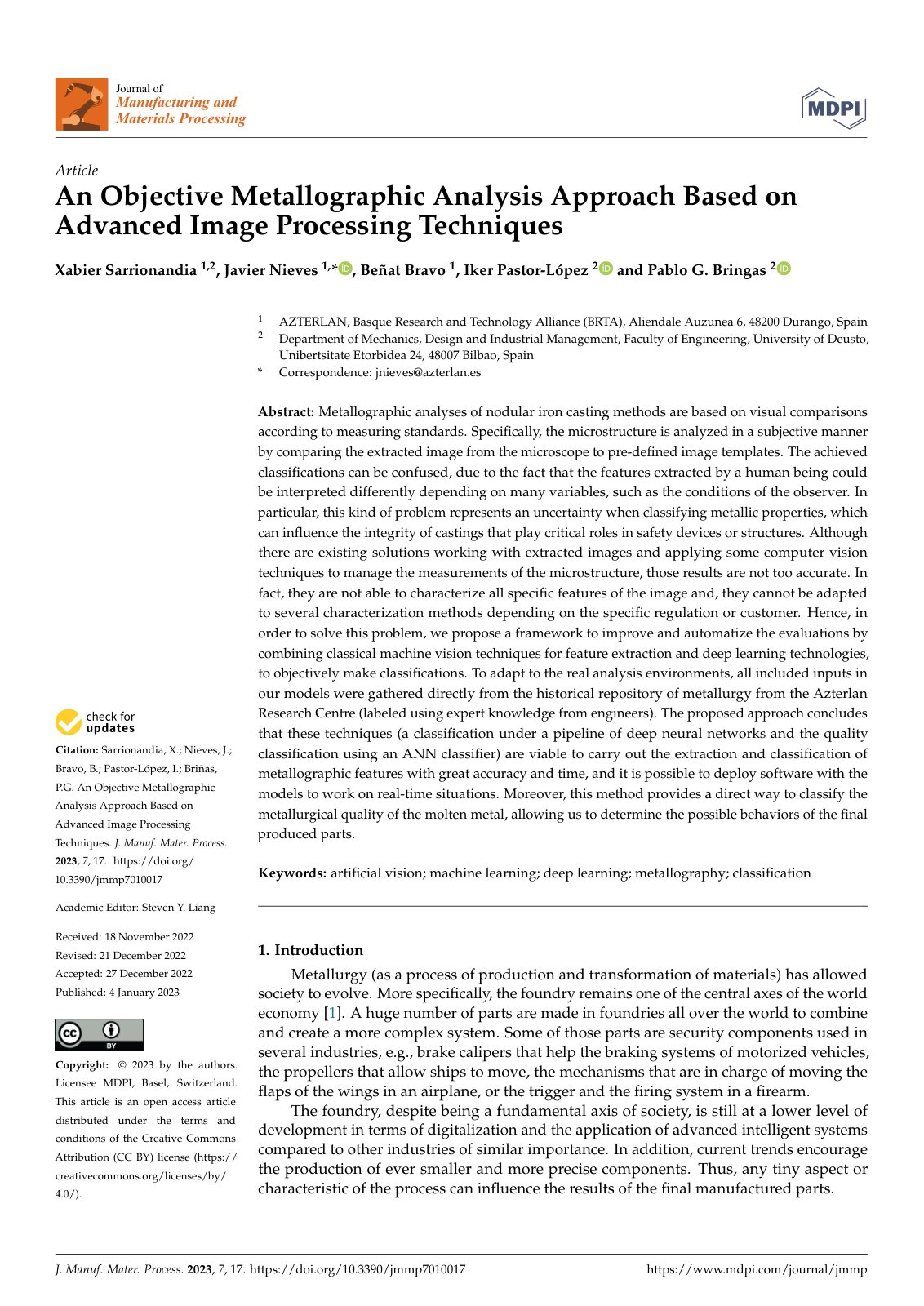

An Objective Metallographic Analysis Approach Based on Advanced Image Processing Techniques

Metallographic analyses of nodular iron casting methods are based on visual comparisons according to measuring standards. Specifically, the microstructure is analyzed in a subjective manner by comparing the extracted image from the microscope to pre-defined image templates. The achieved classifications can be confused, due to the fact that the features extracted by a human being could be interpreted differently depending on many variables, such as the conditions of the observer. In particular, this kind of problem represents an uncertainty when classifying metallic properties, which can influence the integrity of castings that play critical roles in safety devices or structures. Although there are existing solutions working with extracted images and applying some computer vision techniques to manage the measurements of the microstructure, those results are not too accurate. In fact, they are not able to characterize all specific features of the image and, they cannot be adapted to several characterization methods depending on the specific regulation or customer. Hence, in order to solve this problem, we propose a framework to improve and automatize the evaluations by combining classical machine vision techniques for feature extraction and deep learning technologies, to objectively.
