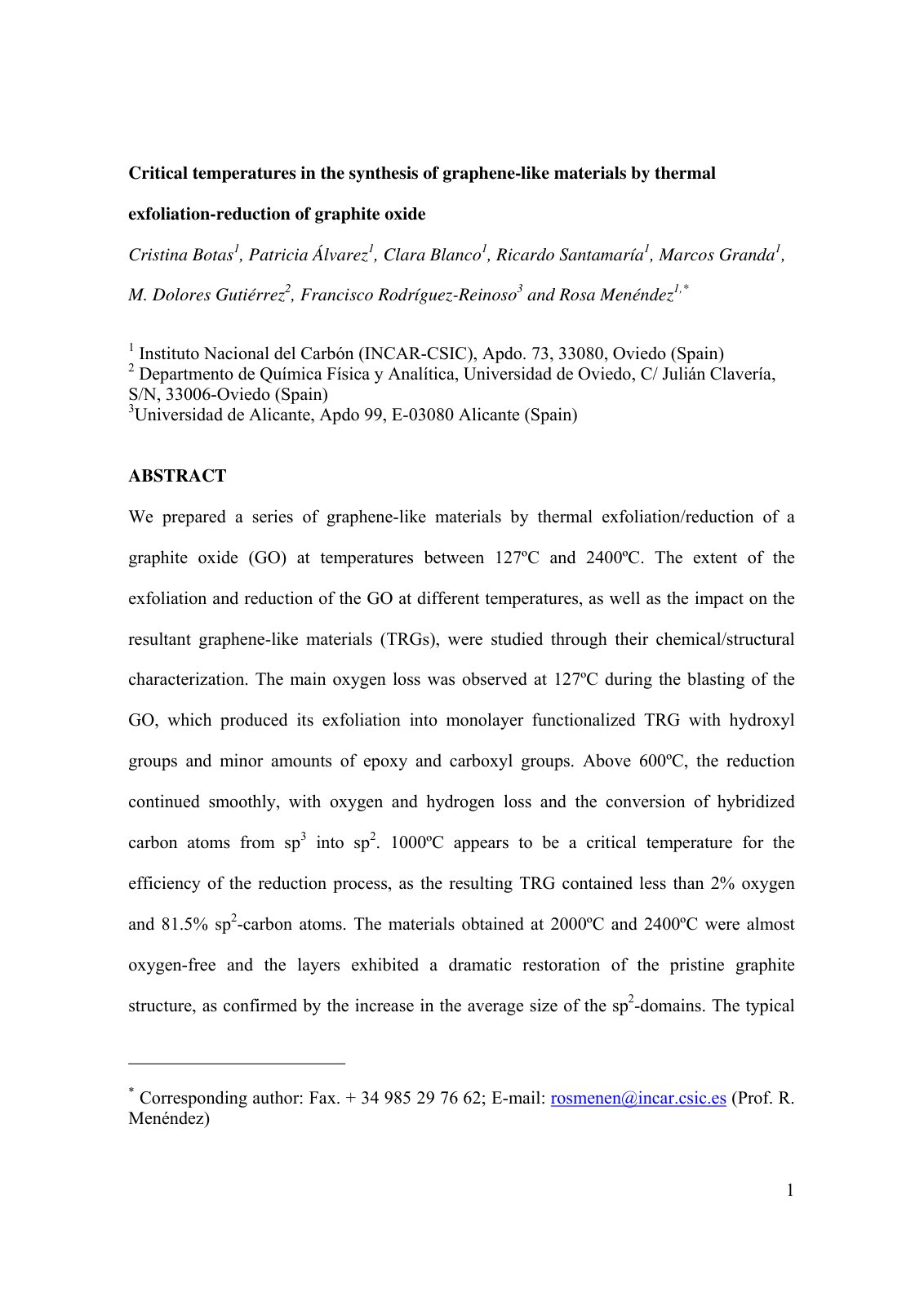

Critical temperatures in the synthesis o

We prepared a series of graphene-like materials by thermal exfoliation/reduction of a graphite oxide (GO) at temperatures between 127ºC and 2400ºC. The extent of the exfoliation and reduction of the GO at different temperatures, as well as the impact on the resultant graphene-like materials (TRGs), were studied through their chemical and structural characterization. The main oxygen loss was observed at 127ºC during the blasting of the GO, which produced its exfoliation into monolayer functionalized TRG with hydroxyl groups and minor amounts of epoxy and carboxyl groups. Above 600ºC, the reduction continued smoothly, with oxygen and hydrogen loss and the conversion of hybridized carbon atoms from sp3 into sp2. 1000ºC appears to be a critical temperature for the efficiency of the reduction process, as the resulting TRG contained less than 2% oxygen and 81.5% sp2-carbon atoms. The materials obtained at 2000ºC and 2400ºC were almost oxygen-free, and the layers exhibited a dramatic restoration of the pristine graphite structure, as confirmed by the increase in the average size of the sp2-domains. The typical disordered stacking of TRGs increases with temperature, although they can be dispersed yielding monolayers at 127 and 300°C and stacks of up to 4-6 layers above 1000°C, as determined by AFM.
