Xueda Li, Zhangyi She, Xunyun Lv, Zeyang Zhang, Liying Li, Bin Han

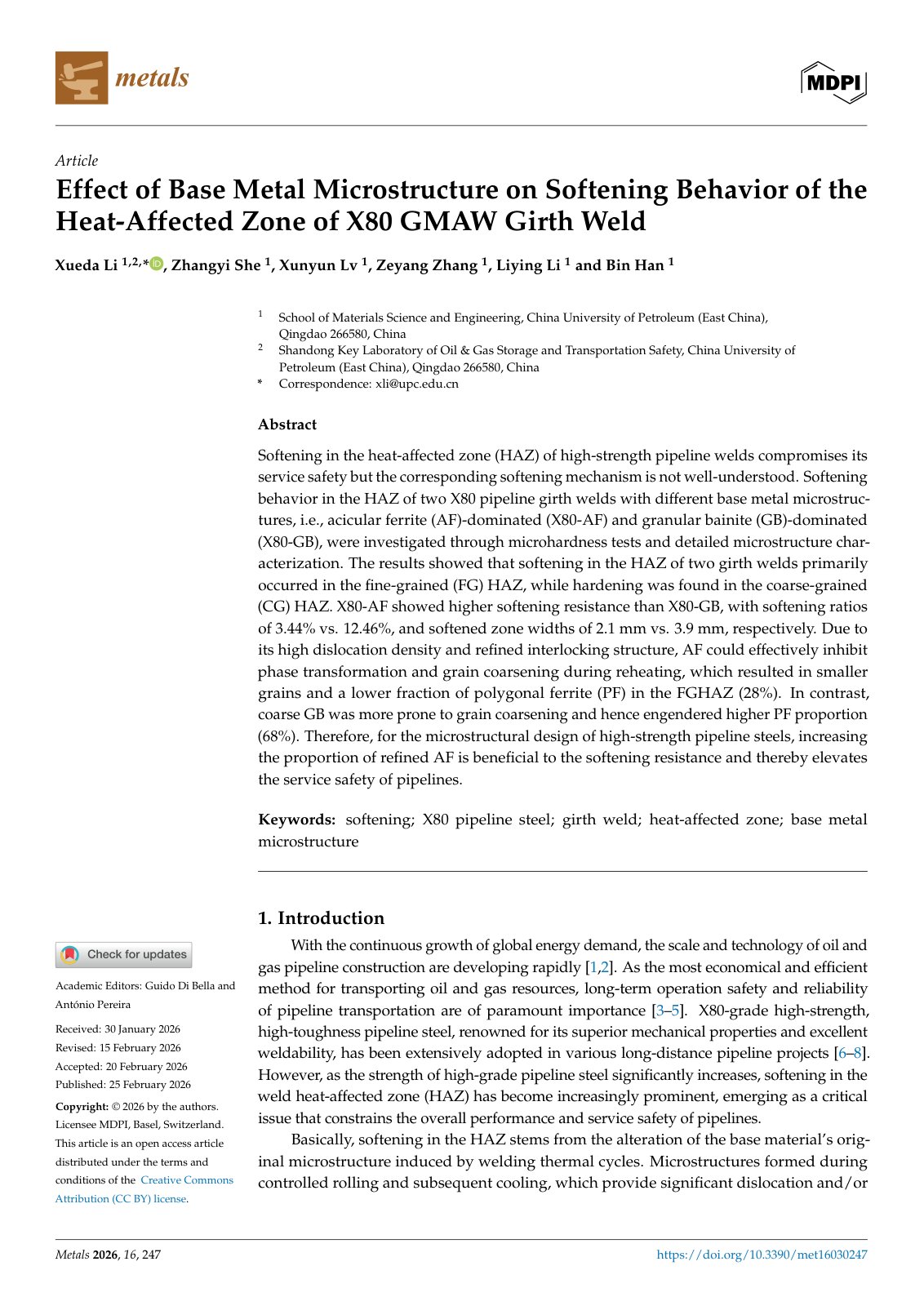

Softening in the heat-affected zone (HAZ) of high-strength pipeline welds compromises its service safety but the corresponding softening mechanism is not well-understood. Softening behavior in the HAZ of two X80 pipeline girth welds with different base metal microstructures, i.e., acicular ferrite (AF)-dominated (X80-AF) and granular bainite (GB)-dominated (X80-GB), were investigated through microhardness tests and detailed microstructure characterization. The results showed that softening in the HAZ of two girth welds primarily occurred in the fine-grained (FG) HAZ, while hardening was found in the coarse-grained (CG) HAZ. X80-AF showed higher softening resistance than X80-GB, with softening ratios of 3.44% vs. 12.46%, and softened zone widths of 2.1 mm vs. 3.9 mm, respectively. Due to its high dislocation density and refined interlocking structure, AF could effectively inhibit phase transformation and grain coarsening during reheating, which resulted in smaller grains and a lower fraction of polygonal ferrite (PF) in the FGHAZ (28%). In contrast, coarse GB was more prone to grain coarsening and hence engendered higher PF proportion (68%). Therefore, for the microstructural design of high-strength pipeline steels, increasing the proportion of refined AF is beneficial to the softening resistance and thereby elevates the service safety of pipelines. Bibliographic record: Metals 2026, 16(3), 247. Published 25 February 2026. Journal article. English. DOI: 10.3390/met16030247. Source: https://www.mdpi.com/2075-4701/16/3/247 Open-access evidence: copyright 2026 by the authors; Creative Commons Attribution 4.0 (CC BY 4.0), stated on the publisher page and PDF first page. License: https://creativecommons.org/licenses/by/4.0/ Primary subject: Alloy Metallurgy. Alloy: X80 pipeline steel. Process: gas metal arc welding; heat-affected-zone microstructure and softening.
@article{6981b414-e7b7-4c01-aaff-0327c633eadd,
title={Effect of Base Metal Microstructure on Softening Behavior of the Heat-Affected Zone of X80 GMAW Girth Weld},
author={Xueda Li and Zhangyi She and Xunyun Lv and Zeyang Zhang and Liying Li and Bin Han},
year={2026},
language={en}
}TY - JOUR TI - Effect of Base Metal Microstructure on Softening Behavior of the Heat-Affected Zone of X80 GMAW Girth Weld AU - Xueda Li AU - Zhangyi She AU - Xunyun Lv AU - Zeyang Zhang AU - Liying Li AU - Bin Han PY - 2026 LA - en ER -
Robert A. Francis
This document serves as a comprehensive introduction to the metallurgy of steel and its alloys, focusing on various aspects of iron and steel manufact
Xiaomei Li
The ever growing demands for high strength aluminium alloys in the aerospace industry have greatly enhanced the development of alloy chemistry and the
Unknown
This chapter discusses critical mechanical properties of metals, emphasizing the concepts of stress and strain, introduced as measures of applied mech
This paper addresses the challenge of assessing the feasibility of wind power plant projects at sites with insufficient or no local historic wind data
Important advances in electrochemical engineering technology over the last three decades have fostered the development of a lternative methods to alle
