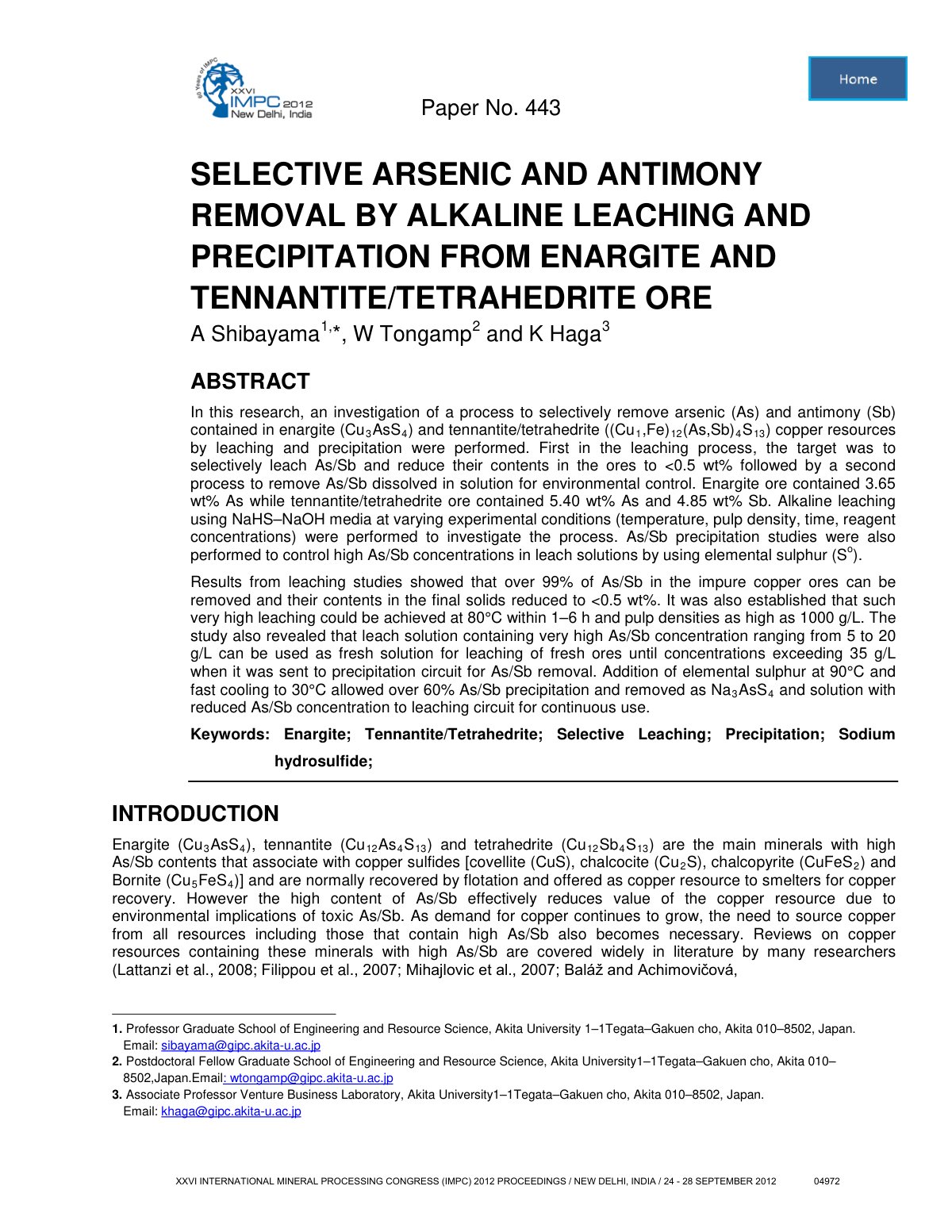

Selective Arsenic And Antimony Removal By Alkaline Leaching And Precipitation From Enargite And Tennantite Tetrahedrite Ore

In this research, an investigation of a process to selectively remove arsenic (As) and antimony (Sb) contained in enargite (Cu3AsS4) and tennantite/tetrahedrite ((Cu1,Fe)12(As,Sb)4S13) copper resources by leaching and precipitation were performed. First in the leaching process, the target was to selectively leach As/Sb and reduce their contents in the ores to <0.5 wt% followed by a second process to remove As/Sb dissolved in solution for environmental control. Enargite ore contained 3.65 wt% As while tennantite/tetrahedrite ore contained 5.40 wt% As and 4.85 wt% Sb. Alkaline leaching using NaHS–NaOH media at varying experimental conditions (temperature, pulp density, time, reagent concentrations) were performed to investigate the process. As/Sb precipitation studies were also performed to control high As/Sb concentrations in leach solutions by using elemental sulphur (So). Results from leaching studies showed that over 99% of As/Sb in the impure copper ores can be removed and their contents in the final solids reduced to <0.5 wt%. It was also established that such very high leaching could be achieved at 80°C within 1–6 h and pulp densities as high as 1000 g/L. The study also revealed that leach solution containing very high As/Sb concentration ranging from 5 to 20 g/L can be used as fresh solution for leaching of fresh ores until concentrations exceeding 35 g/L when it was sent to precipitation circuit for As/Sb removal. Addition of elemental sulphur at 90°C and fast cooling to 30°C allowed over 60% As/Sb precipitation and removed as Na3AsS4 and solution with reduced As/Sb concentration to leaching circuit for continuous use.
