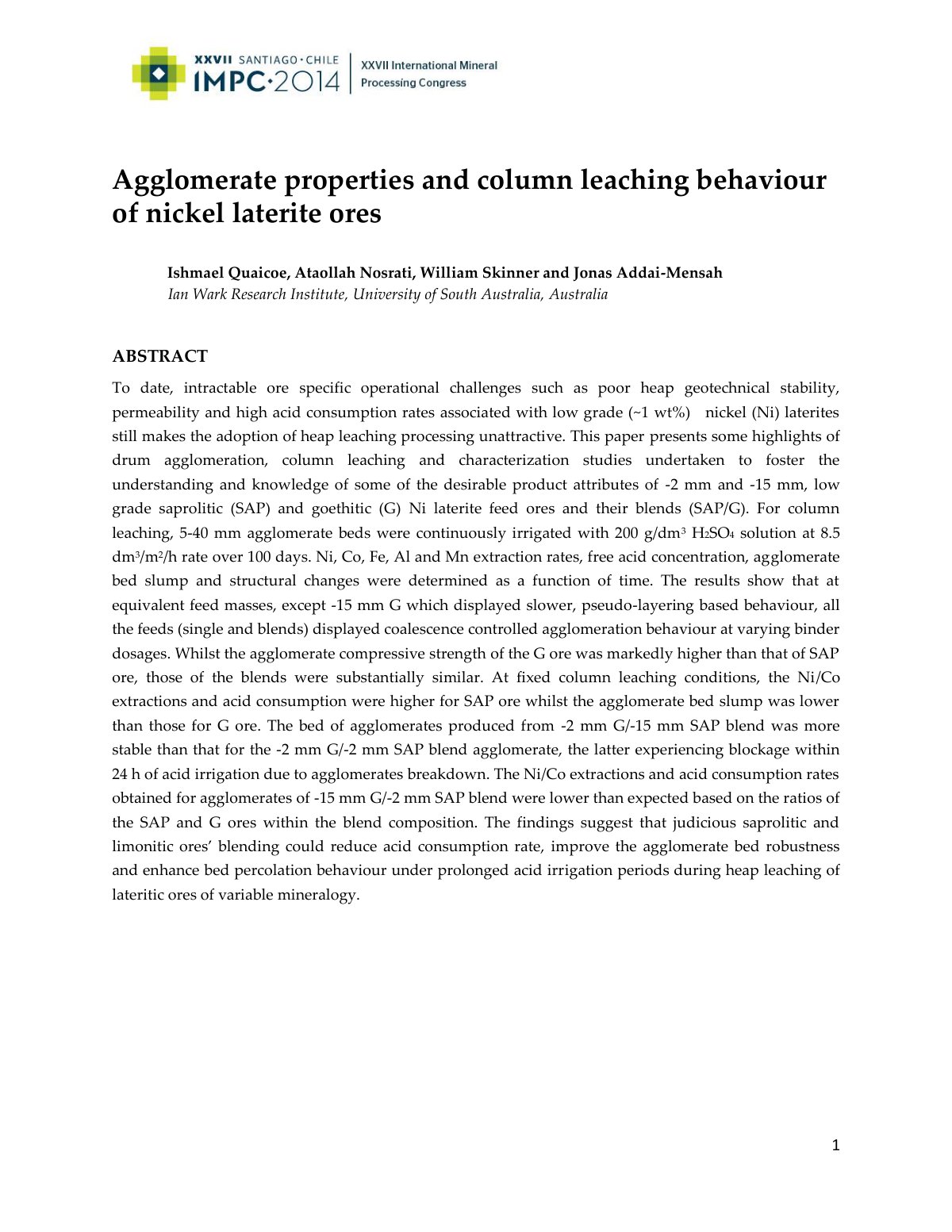

Agglomerate properties and column leaching behaviour of nickel laterite ores

To date, intractable ore specific operational challenges such as poor heap geotechnical stability, permeability and high acid consumption rates associated with low grade (~1 wt%) nickel (Ni) laterites still make the adoption of heap leaching processing unattractive. This paper presents some highlights of drum agglomeration, column leaching and characterization studies undertaken to foster the understanding and knowledge of some of the desirable product attributes of -2 mm and -15 mm, low grade saprolitic (SAP) and goethitic (G) Ni laterite feed ores and their blends (SAP/G). For column leaching, 5-40 mm agglomerate beds were continuously irrigated with 200 g/dm3 H2SO4 solution at 8.5 dm3/m2/h rate over 100 days. Ni, Co, Fe, Al and Mn extraction rates, free acid concentration, agglomerate bed slump and structural changes were determined as a function of time. The results show that at equivalent feed masses, except -15 mm G which displayed slower, pseudo-layering based behaviour, all the feeds (single and blends) displayed coalescence controlled agglomeration behaviour at varying binder dosages. The findings suggest that judicious saprolitic and limonitic ores' blending could reduce acid consumption rate, improve the agglomerate bed robustness and enhance bed percolation behaviour under prolonged acid irrigation periods during heap leaching of lateritic ores of variable mineralogy.
