PDF

2026 Sroka S31035 Precipitation Microstructure

M. Sroka, A. Zieliński

2026enaustenitic steelmicrostructureprecipitationheat treatmentpower plantselectron microscopy

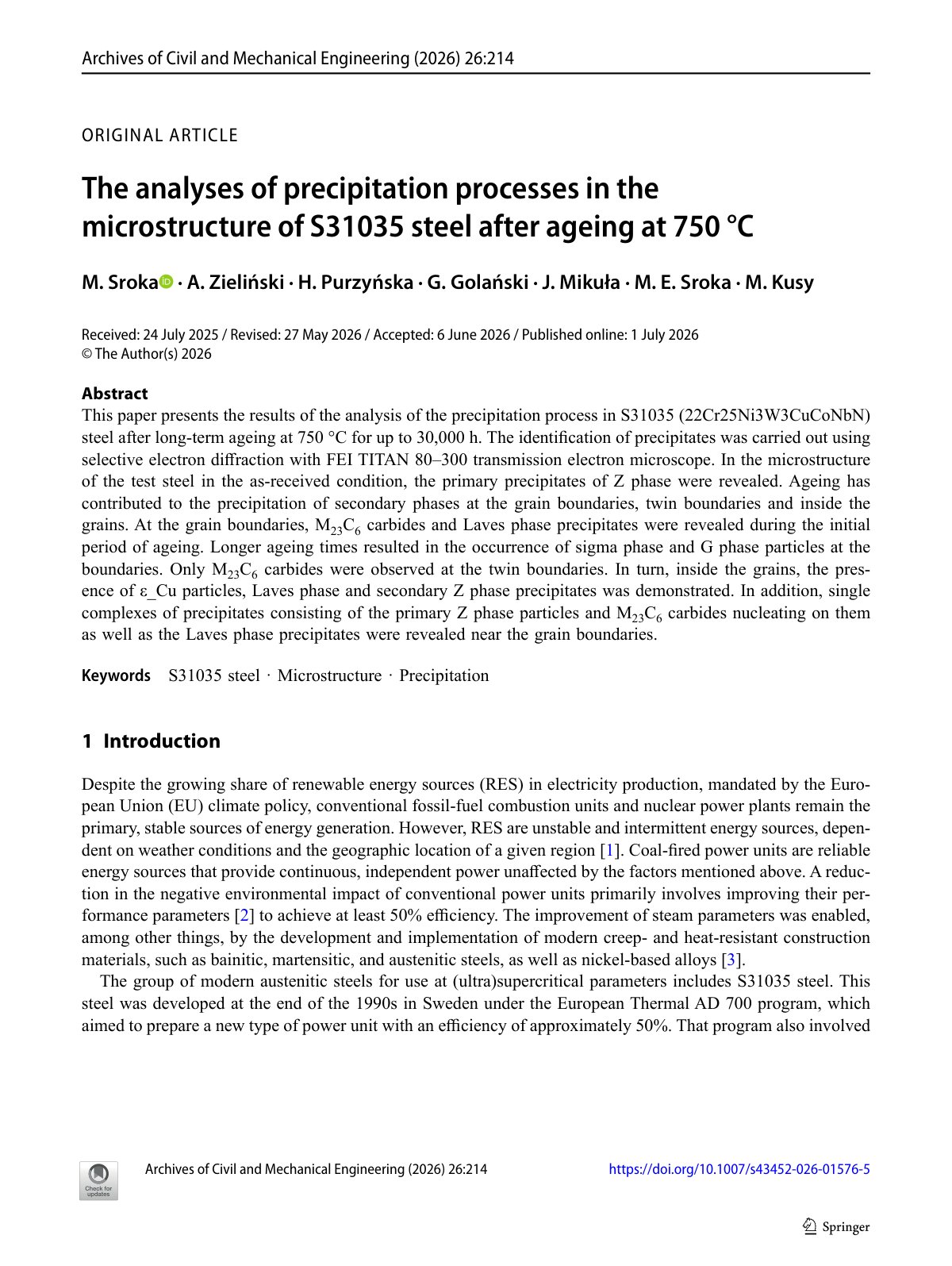

Abstract

Language:

This paper presents the results of the analysis of the precipitation process in S31035 (22Cr25Ni3W3CuCoNbN) steel after long-term ageing at 750 °C for up to 30,000 h. The identification of precipitates was carried out using selective electron diffraction with FEI TITAN 80–300 transmission electron microscope. In the microstructure of the test steel in the as-received condition, the primary precipitates of Z phase were revealed. Ageing has contributed to the precipitation of secondary phases at the grain boundaries, twin boundaries and inside the grains. At the grain boundaries, M 23C6 carbides and Laves phase precipitates were revealed during the initial period of ageing. Longer ageing times resulted in the occurrence of sigma phase and G phase particles at the boundaries. Only M 23C6 carbides were observed at the twin boundaries. In turn, inside the grains, the presence of ε_Cu particles, Laves phase and secondary Z phase precipitates was demonstrated. In addition, single complexes of precipitates consisting of the primary Z phase particles and M 23C6 carbides nucleating on them as well as the Laves phase precipitates were revealed near the grain boundaries.

Download

Cite This Work

@article{6ea4b01b-2ba6-405c-8592-c3b11deefa46,
  title={2026 Sroka S31035 Precipitation Microstructure},
  author={M. Sroka and A. Zieliński},
  year={2026},
  language={en}
}
TY  - JOUR
TI  - 2026 Sroka S31035 Precipitation Microstructure
AU  - M. Sroka
AU  - A. Zieliński
PY  - 2026
LA  - en
ER  -

Similar Items

Quenching theory and technology B Liéséciâc; International Federation for Heat Treatment and ( WeLib.org )

2026enPDF

Chemical Composition and Morphology of M7C3 Eutectic Carbide in High Chromium White Cast Iron Alloyed with Vanadium

Mirjana FILIPOVIC, Endre ROMHANJI and Zeljko KAMBEROVIC

The chemical composition and morphology of M7C3 eutectic carbides in 19 mass% Cr–2.8 mass% C white iron with up to 4.7 mass% V additions have been stu

2012enPDF

THE EFFECT VANADIUM CONTENT AND HEAT TREATMENT ON WEAR RESISTANCE AND FRACTURE TOUGHNESS OF FE-CR-C-V ALLOY

Mirjana Filipović, Željko Kamberović, Marija Korać

Experimental results indicate that the volume fraction of the carbide phase, carbide size and distribution had an important influence on the wear resi

2014enPDF

AN INTRODUCTION TO THE METALLURGY OF STEEL AND ITS ALLOYS

Robert A. Francis

This document serves as a comprehensive introduction to the metallurgy of steel and its alloys, focusing on various aspects of iron and steel manufact

2017enPDF

LECTURE NOTES ON

Avala Lava Kumar, D.K. Mishra

This course aims to provide a comprehensive understanding of heat treatment's role in developing the microstructure and properties of metallic materia

2000EnglishPDF

Microstructure-Property Modelling and

Xiaomei Li

The ever growing demands for high strength aluminium alloys in the aerospace industry have greatly enhanced the development of alloy chemistry and the

2002EnglishPDF
