2026 AZ31B USRP Surface Removal Fatigue

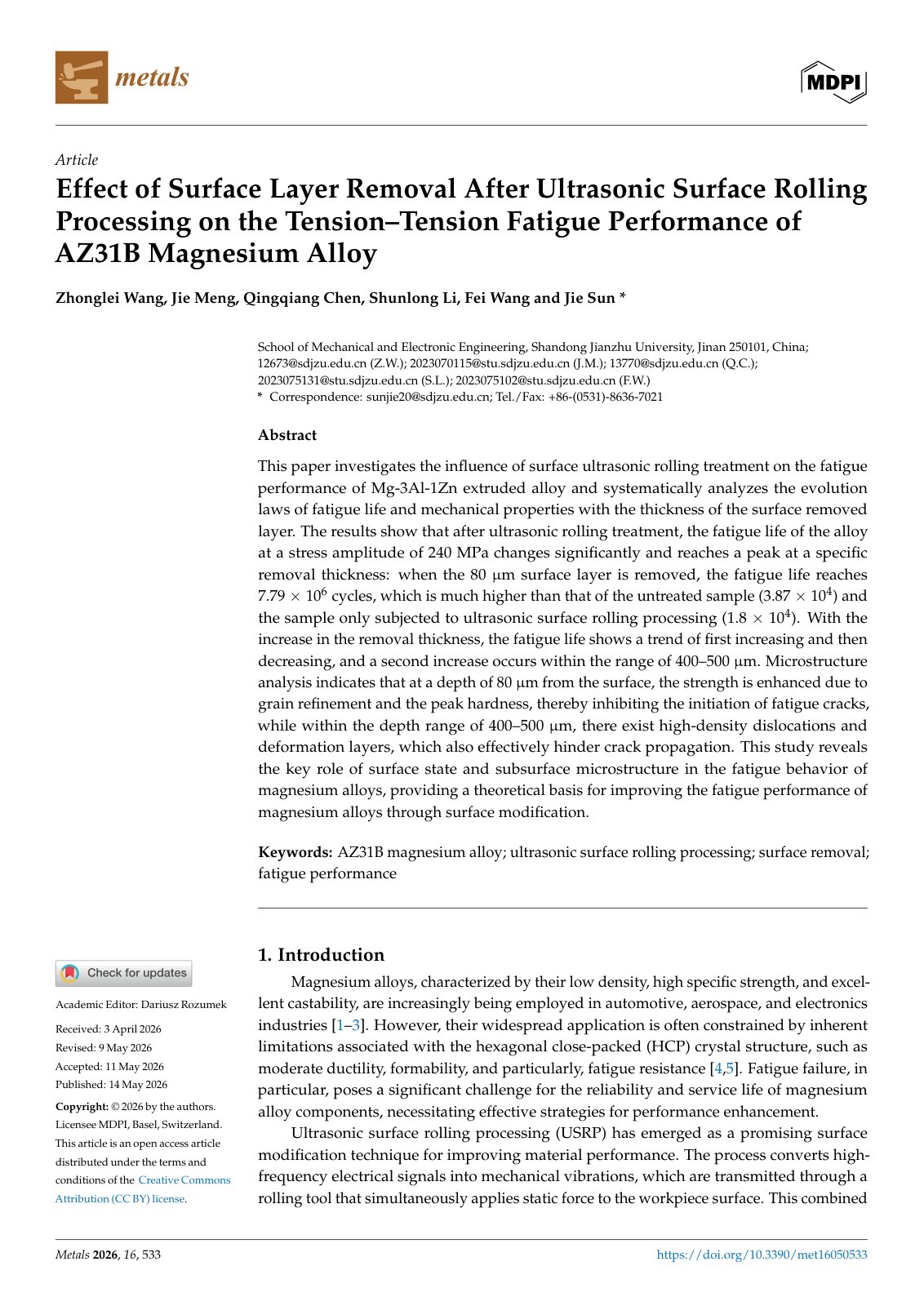

This paper investigates the influence of surface ultrasonic rolling treatment on the fatigue performance of Mg-3Al-1Zn extruded alloy and systematically analyzes the evolution laws of fatigue life and mechanical properties with the thickness of the surface removed layer. The results show that after ultrasonic rolling treatment, the fatigue life of the alloy at a stress amplitude of 240 MPa changes significantly and reaches a peak at a specific removal thickness: when the 80 µm surface layer is removed, the fatigue life reaches 7.79 × 106 cycles, which is much higher than that of the untreated sample (3.87 × 104) and the sample only subjected to ultrasonic surface rolling processing (1.8 × 104). With the increase in the removal thickness, the fatigue life shows a trend of first increasing and then decreasing, and a second increase occurs within the range of 400–500 µm. Microstructure analysis indicates that at a depth of 80 µm from the surface, the strength is enhanced due to grain refinement and the peak hardness, thereby inhibiting the initiation of fatigue cracks, while within the depth range of 400–500 µm, there exist high-density dislocations and deformation layers, which also effectively hinder crack propagation. This study reveals the key role of surface state and subsurface microstructure in the fatigue behavior of magnesium alloys, providing a theoretical basis for improving the fatigue performance of magnesium alloys through surface modification.
