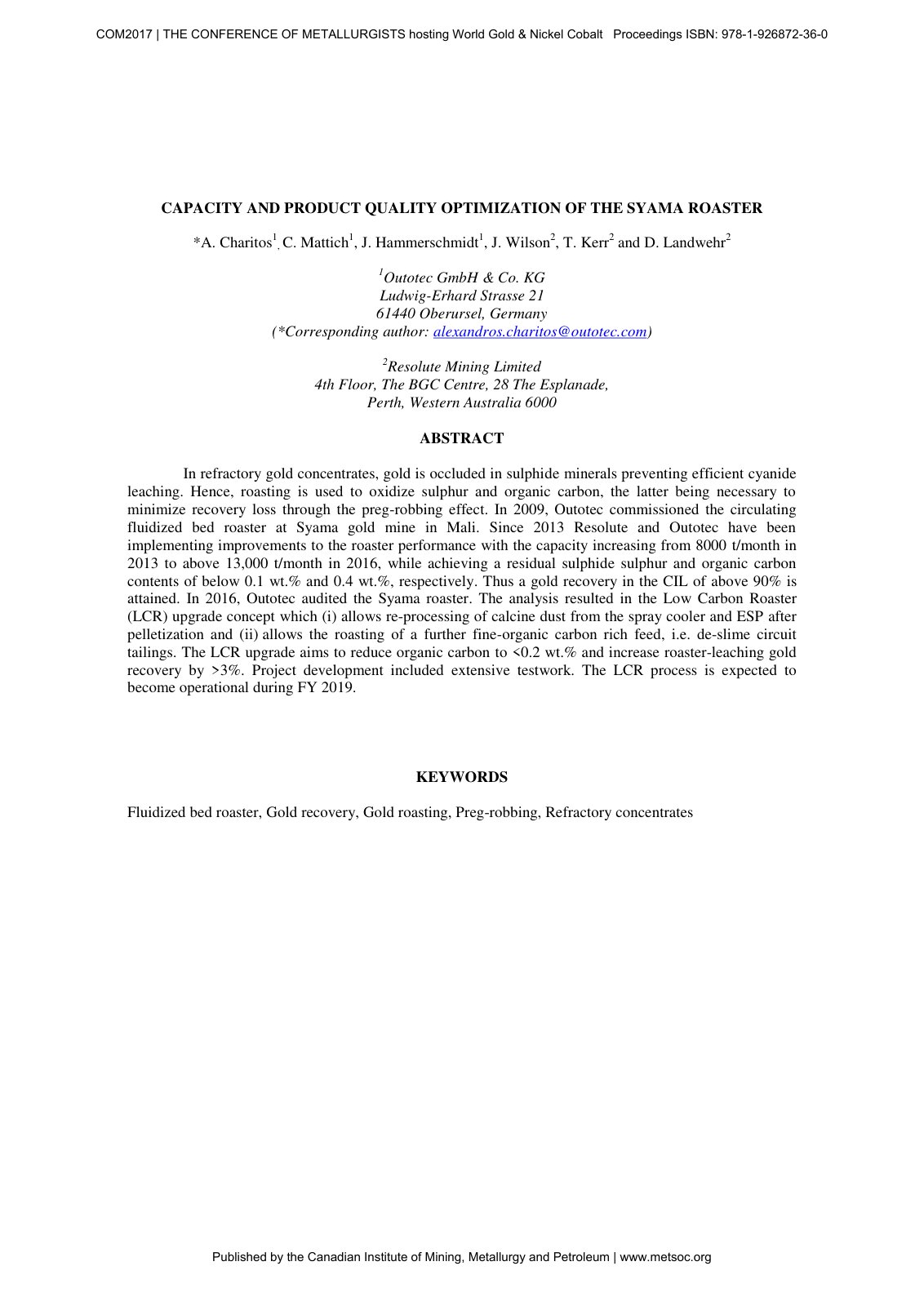

CAPACITY AND PRODUCT QUALITY OPTIMIZATION OF THE SYAMA ROASTER

In refractory gold concentrates, gold is occluded in sulphide minerals preventing efficient cyanide leaching. Hence, roasting is used to oxidize sulphur and organic carbon, the latter being necessary to minimize recovery loss through the preg-robbing effect. In 2009, Outotec commissioned the circulating fluidized bed roaster at Syama gold mine in Mali. Since 2013 Resolute and Outotec have been implementing improvements to the roaster performance with the capacity increasing from 8000 t/month in 2013 to above 13,000 t/month in 2016, while achieving a residual sulphide sulphur and organic carbon contents of below 0.1 wt.% and 0.4 wt.%, respectively. Thus a gold recovery in the CIL of above 90% is attained. In 2016, Outotec audited the Syama roaster. The analysis resulted in the Low Carbon Roaster (LCR) upgrade concept which (i) allows re-processing of calcine dust from the spray cooler and ESP after pelletization and (ii) allows the roasting of a further fine-organic carbon rich feed, i.e. de-slime circuit tailings. The LCR upgrade aims to reduce organic carbon to <0.2 wt.% and increase roaster-leaching gold recovery by >3%. Project development included extensive testwork. The LCR process is expected to become operational during FY 2019.
