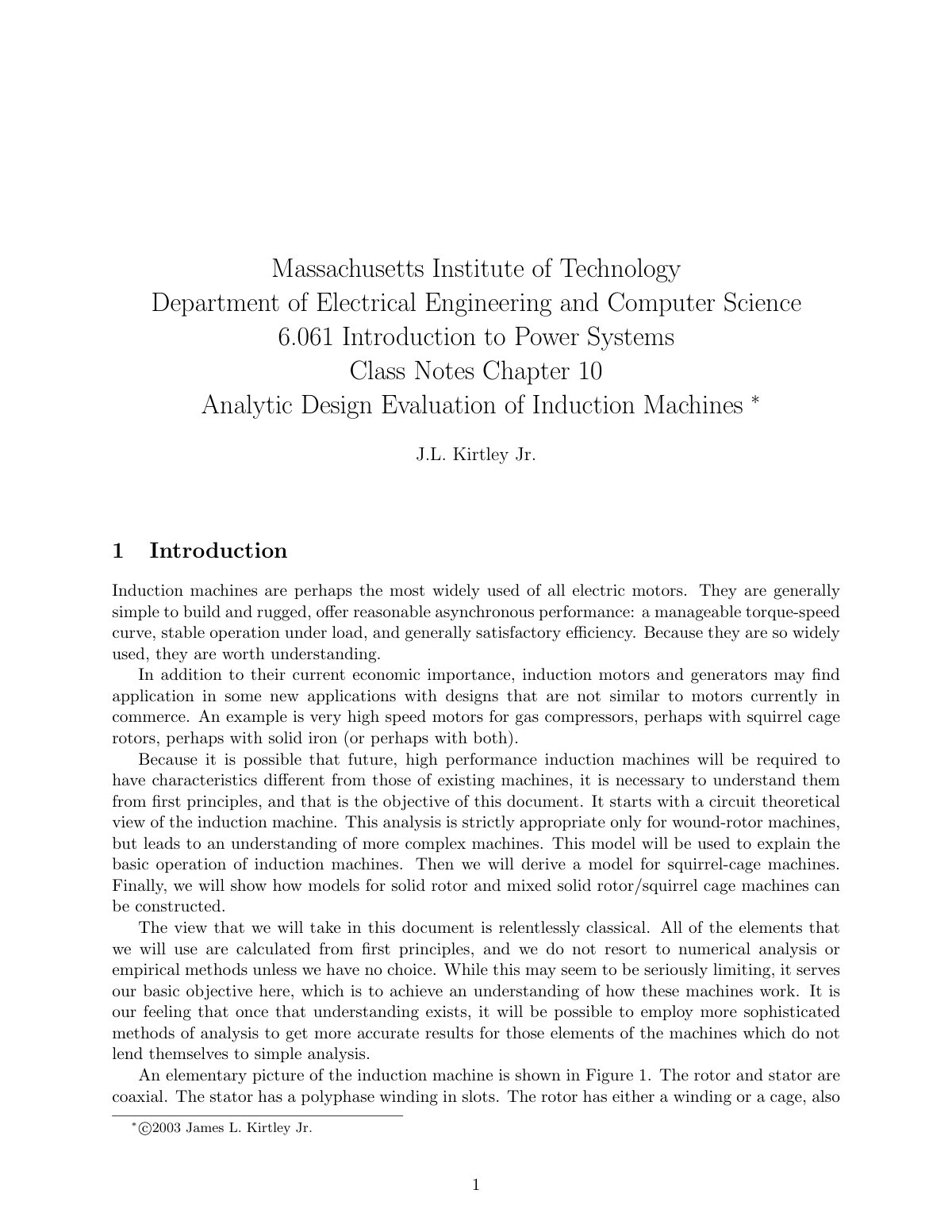

Induction machines are one of the most commonly used types of electric motors, known for their simplicity and robustness, which results in stable operation and acceptable efficiency. This document aims to provide a thorough understanding of induction machines by analyzing them from first principles, a necessity given the potential for future machines to differ significantly from current designs. The methodology begins with a circuit theoretical examination suitable for wound-rotor machines, which serves as the foundation for understanding more intricate machinery. Following this, a model for squirrel-cage induction machines is derived, reflecting operational characteristics essential for high-performance applications. The discussion emphasizes a classical approach, avoiding reliance on numerical or empirical methods unless absolutely necessary, thereby fostering a fundamental grasp of induction machine operation. Through this, it is posited that the foundational understanding will empower the use of advanced analytical methods for more accurate evaluations in subsequent applications. The document also includes a visual representation of the induction machine's structure, explaining components such as the rotor and stator, along with their functional relationships within the machine's operational context.
