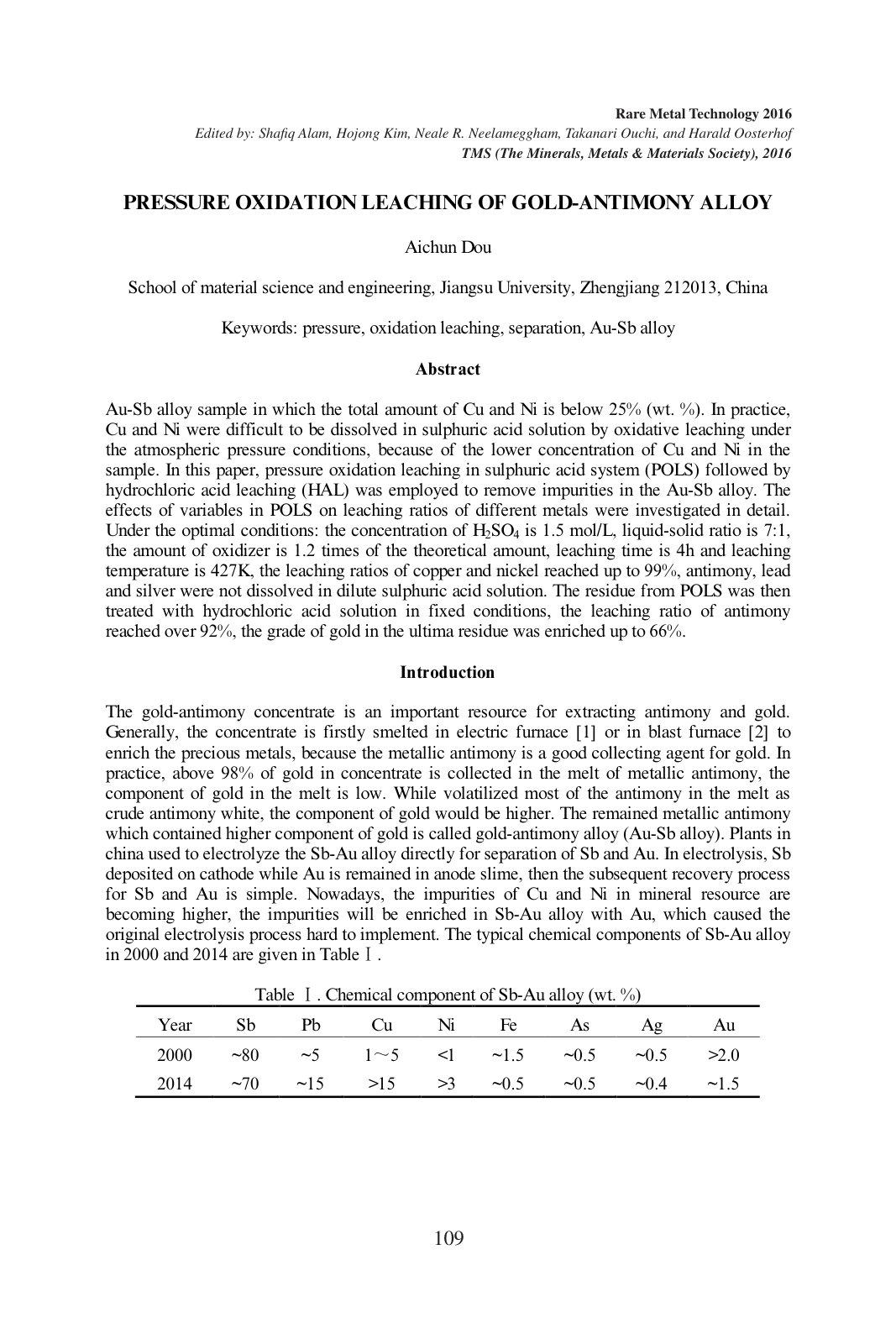

Aichun Dou
This study investigates the pressure oxidation leaching of gold-antimony (Au-Sb) alloy with a focus on removing impurities such as copper (Cu) and nickel (Ni) from the alloy, which contains less than 25% (wt. %) of these metals. The research employs pressure oxidation leaching in a sulphuric acid system (POLS), followed by hydrochloric acid leaching (HAL), to enhance the leaching ratios of different metals. A series of experiments were conducted to evaluate the effects of various parameters in the POLS process. The optimal conditions were identified as 1.5 mol/L concentration of H2SO4, a liquid-solid ratio of 7:1, an oxidizer amount of 1.2 times the theoretical requirements, a leaching time of 4 hours, and a temperature of 427K. Under these conditions, leaching ratios for copper and nickel achieved 99%, with antimony, lead, and silver remaining undissolved in the sulphuric solution. The residual from POLS was subsequently treated with hydrochloric acid, resulting in over 92% leaching of antimony and enriching the gold grade in the final residue to 66%. This novel approach presents an effective method for processing Au-Sb alloys with high impurity levels.
@article{7583dd7b-8989-4f6c-9c72-ab1d97c16ee0,
title={PRESSURE OXIDATION LEACHING OF GOLD-ANTIMONY ALLOY},
author={Aichun Dou},
year={2016},
language={en}
}TY - JOUR TI - PRESSURE OXIDATION LEACHING OF GOLD-ANTIMONY ALLOY AU - Aichun Dou PY - 2016 LA - en ER -
J. J. Eksteen, E. A. Oraby
The technology to selectively leach gold, silver and base metals from ores, concentrates, and wastes, using an alkaline glycine solution, has initiat
Ionela Birloaga, Ida De Michelis, Francesco Ferella, Mihai Buzatu, Francesco Vegliò
This study investigates the hydrometallurgical recovery of copper and gold from waste printed circuit boards (WPCBs) using a sequential oxidative leac
C.N. Mpinga, J.J. Eksteen
Platinum Group Metals (PGMs), often with associated gold, have very few occurrences where they are present in an ore deposit at economically extractab
The leachability tests for manufacturing scrap TV boards (STVB) have indicated the release of metals beyond the limit levels with potential problems f
Printed circuit boards (PCBs) from electronic gadgets at the end of their useful life period are currently being dumped in landfills or incinerated, c
