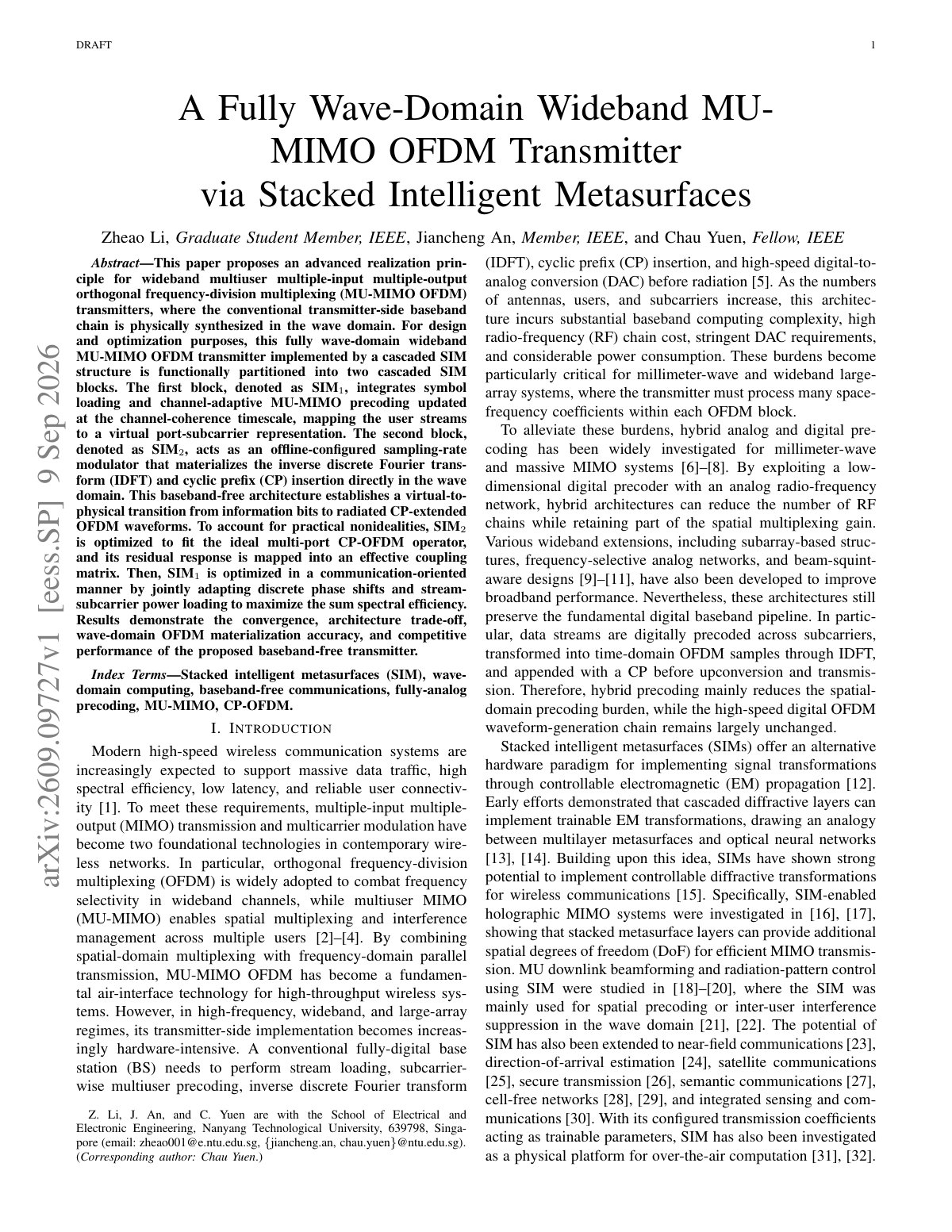

A Fully Wave-Domain Wideband MU-MIMO OFDM Transmitter via Stacked Intelligent Metasurfaces

This paper proposes an advanced realization principle for wideband multiuser multiple-input multiple-output orthogonal frequency-division multiplexing (MU-MIMO OFDM) transmitters, where the conventional transmitter-side baseband chain is physically synthesized in the wave domain. For design and optimization purposes, this fully wave-domain wideband MU-MIMO OFDM transmitter implemented by a cascaded SIM structure is functionally partitioned into two cascaded SIM blocks. The first block, denoted as SIM 1, integrates symbol loading and channel-adaptive MU-MIMO precoding updated at the channel-coherence timescale, mapping the user streams to a virtual port-subcarrier representation. The second block, denoted as SIM 2, acts as an offline-configured sampling-rate modulator that materializes the inverse discrete Fourier transform (IDFT) and cyclic prefix (CP) insertion directly in the wave domain. This baseband-free architecture establishes a virtual-to-physical transition from information bits to radiated CP-extended OFDM waveforms. To account for practical nonidealities, SIM 2 is optimized to fit the ideal multi-port CP-OFDM operator, and its residual response is mapped into an effective coupling matrix. Then, SIM 1 is optimized in a communication-oriented manner by jointly adapting discrete phase shifts and stream-subcarrier power loading to maximize the sum spectral efficiency. Results demonstrate the convergence, architecture trade-off, wave-domain OFDM materialization accuracy, and competitive performance of the proposed baseband-free transmitter.
