Razieh Jabari Seresht, Mohsen Jahanshahi

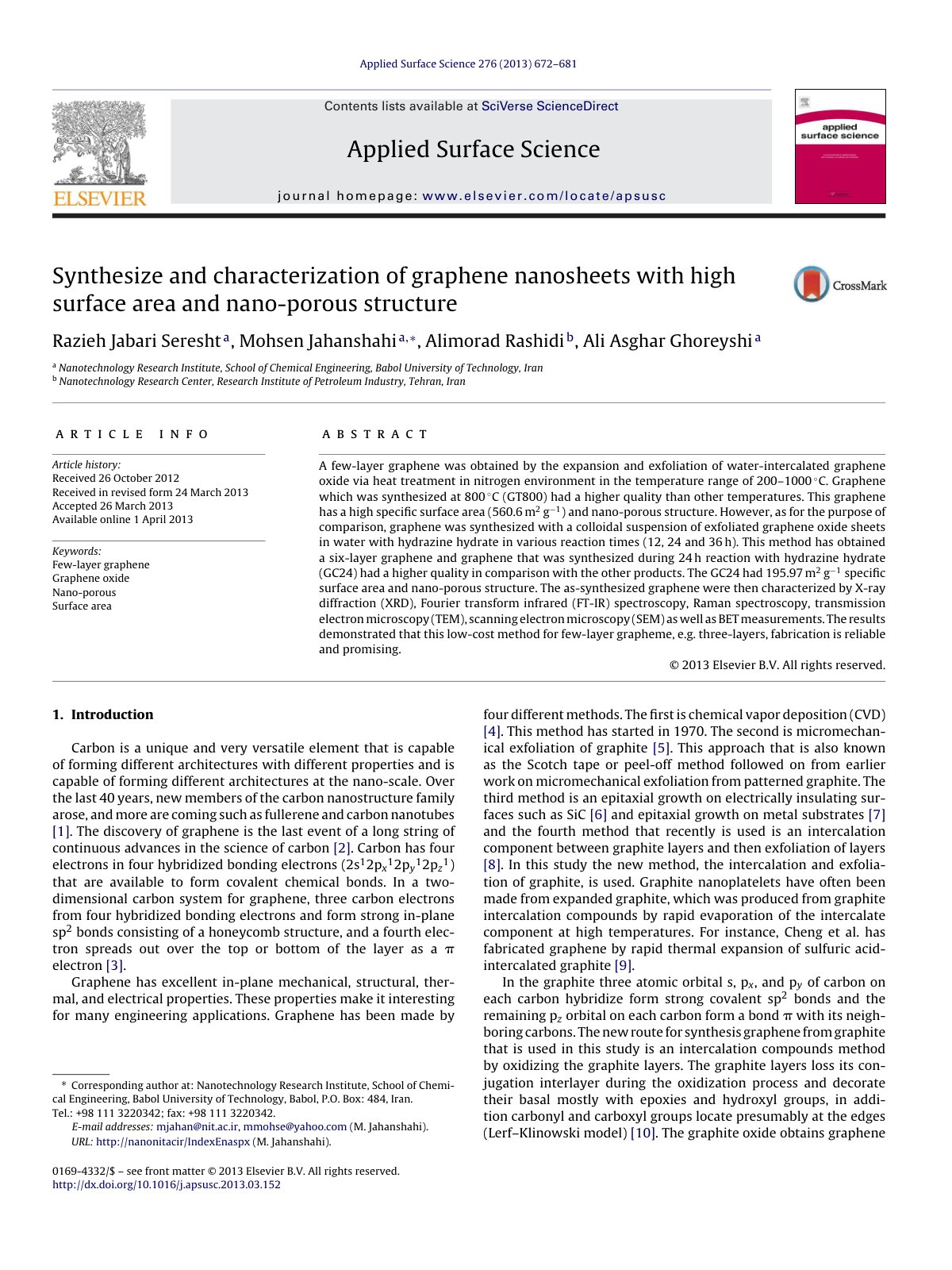

A few-layer graphene was obtained by the expansion and exfoliation of water-intercalated graphene oxide via heat treatment in nitrogen environment in the temperature range of 200–1000 ◦ C. Graphene which was synthesized at 800 ◦ C (GT800) had a higher quality than other temperatures. This graphene has a high specific surface area (560.6 m 2 g− 1 ) and nano-porous structure. However, as for the purpose of comparison, graphene was synthesized with a colloidal suspension of exfoliated graphene oxide sheets in water with hydrazine hydrate in various reaction times (12, 24 and 36 h). This method has obtained a six-layer graphene and graphene that was synthesized during 24 h reaction with hydrazine hydrate (GC24) had a higher quality in comparison with the other products. The GC24 had 195.97 m 2 g− 1 specific surface area and nano-porous structure. The as-synthesized graphene were then characterized by X-ray diffraction (XRD), Fourier transform infrared (FT-IR) spectroscopy, Raman spectroscopy, transmission electron microscopy (TEM), scanning electron microscopy (SEM) as well as BET measurements. The results demonstrated that this low-cost method for few-layer graphene, e.g. three-layers, fabrication is reliable and promising.
@article{7ba62d16-5dc6-45be-bd55-55595ad8d8c9,
title={Synthesize and characterization of graph},
author={Razieh Jabari Seresht and Mohsen Jahanshahi},
year={2026},
language={en}
}TY - JOUR TI - Synthesize and characterization of graph AU - Razieh Jabari Seresht AU - Mohsen Jahanshahi PY - 2026 LA - en ER -
This paper addresses the challenge of assessing the feasibility of wind power plant projects at sites with insufficient or no local historic wind data
Important advances in electrochemical engineering technology over the last three decades have fostered the development of a lternative methods to alle
Increasing volumes of waste printed circuit boards from obsolete electronic equipment posed escalating environmental risks and resource losses due to
The leachability tests for manufacturing scrap TV boards (STVB) have indicated the release of metals beyond the limit levels with potential problems f
