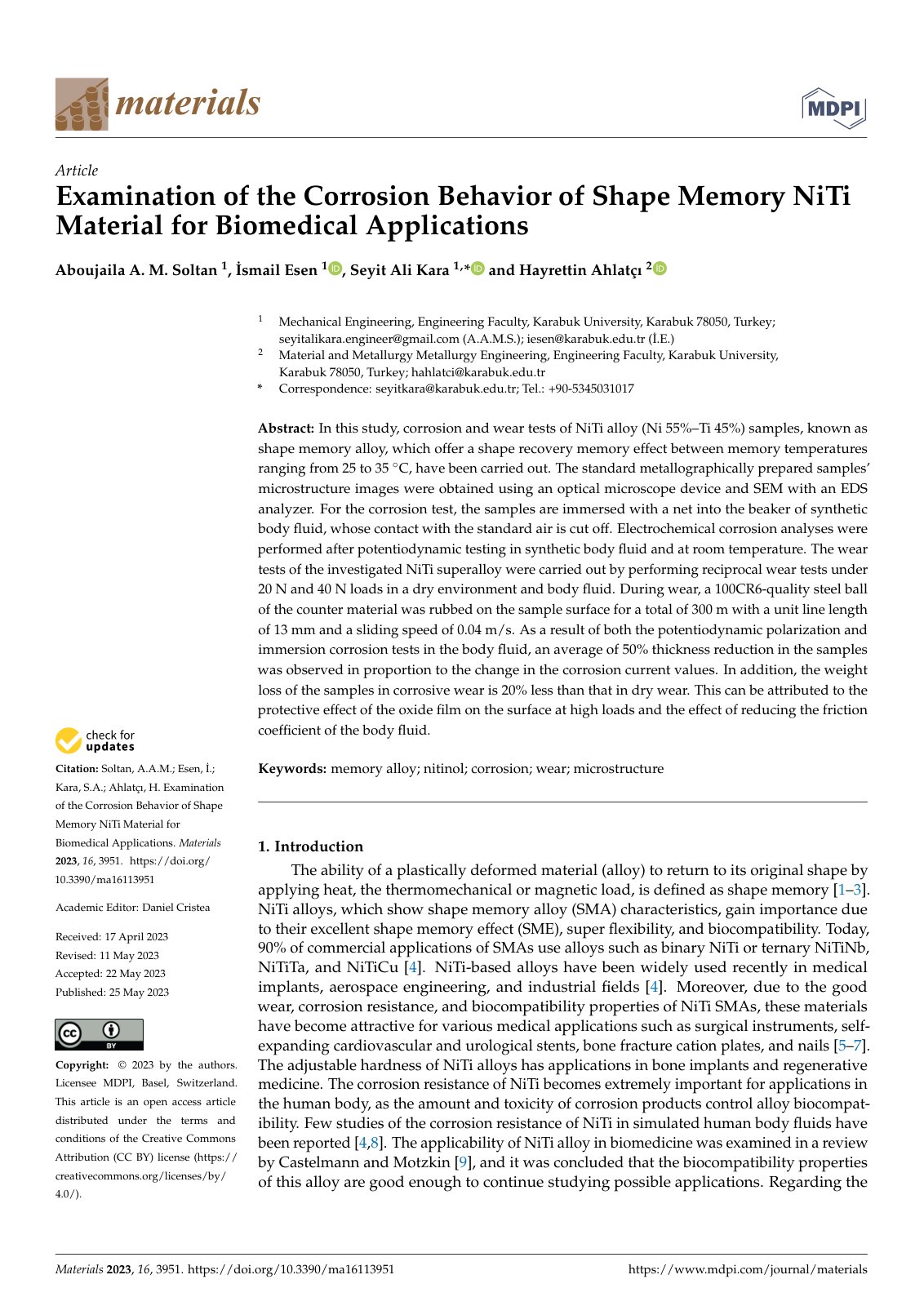

Examination of the Corrosion Behavior of Shape Memory NiTi Material for Biomedical Applications

In this study, corrosion and wear tests of NiTi alloy (Ni 55%–Ti 45%) samples, known as shape memory alloy, which offer a shape recovery memory effect between memory temperatures ranging from 25 to 35 ◦C, have been carried out. The standard metallographically prepared samples’ microstructure images were obtained using an optical microscope device and SEM with an EDS analyzer. For the corrosion test, the samples are immersed with a net into the beaker of synthetic body fluid, whose contact with the standard air is cut off. Electrochemical corrosion analyses were performed after potentiodynamic testing in synthetic body fluid and at room temperature. The wear tests of the investigated NiTi superalloy were carried out by performing reciprocal wear tests under 20 N and 40 N loads in a dry environment and body fluid. During wear, a 100CR6-quality steel ball of the counter material was rubbed on the sample surface for a total of 300 m with a unit line length of 13 mm and a sliding speed of 0.04 m/s. As a result of both the potentiodynamic polarization and immersion corrosion tests in the body fluid, an average of 50% thickness reduction in the samples was observed in proportion to the change in the corrosion current values. In addition, the weight loss of the samples in corrosive wear is 20% less than that of the non-corroded samples.
