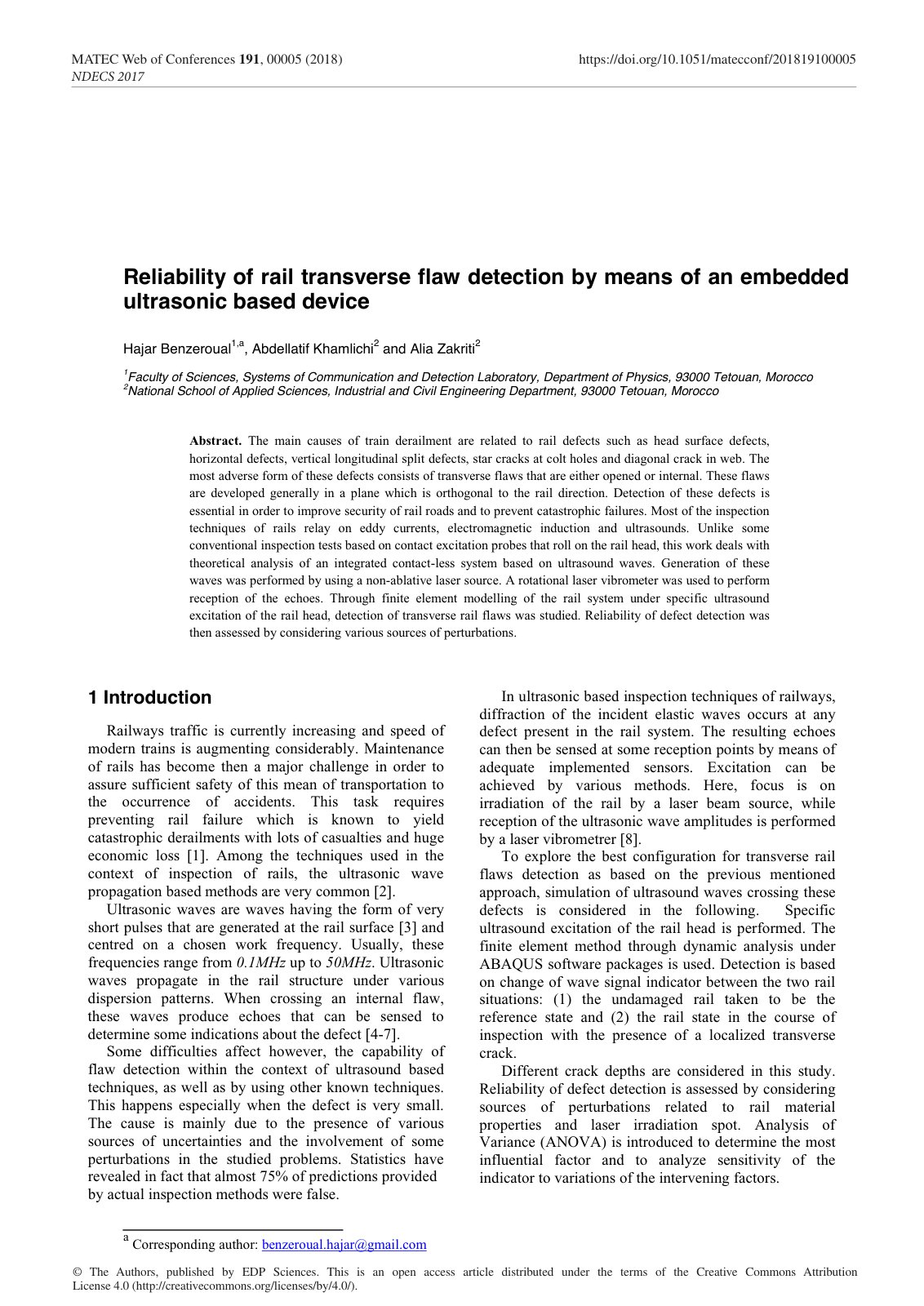

Reliability of rail transverse flaw detection by means of an embedded ultrasonic based device

The main causes of train derailment are related to rail defects such as head surface defects, horizontal defects, vertical longitudinal split defects, star cracks at colt holes and diagonal crack in web. The most adverse form of these defects consists of transverse flaws that are either opened or internal. Detection of these defects is essential in order to improve security of rail roads and to prevent catastrophic failures. Most of the inspection techniques of rails rely on eddy currents, electromagnetic induction, and ultrasounds. Unlike some conventional inspection tests based on contact excitation probes that roll on the rail head, this work deals with a theoretical analysis of an integrated contact-less system based on ultrasound waves. Generation of these waves was performed by using a non-ablative laser source. A rotational laser vibrometer was used to perform reception of the echoes. Through finite element modeling of the rail system under specific ultrasound excitation of the rail head, detection of transverse rail flaws was studied. Reliability of defect detection was then assessed by considering various sources of perturbations.
