PDF

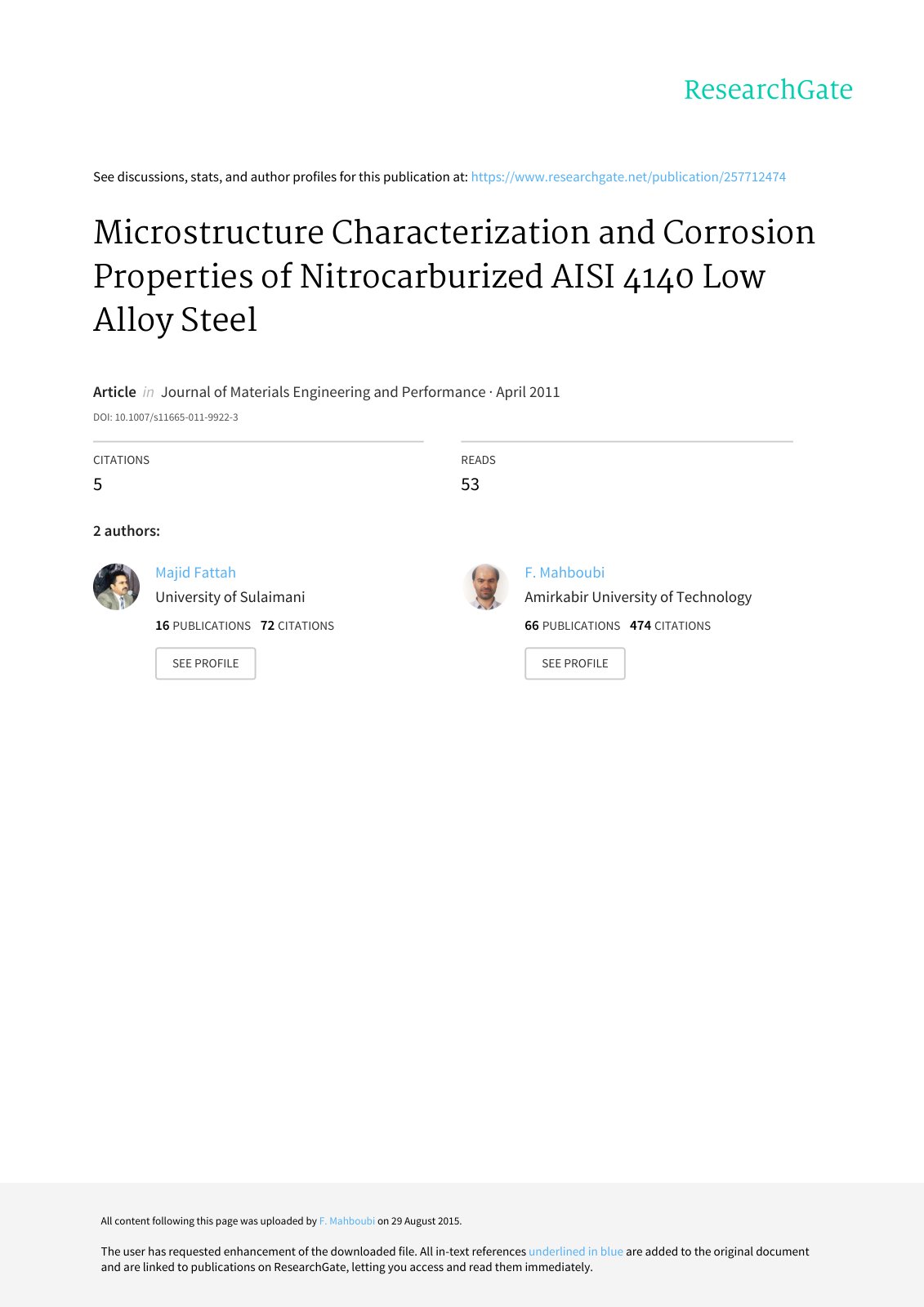

Microstructure Characterization and Corrosion Properties of Nitrocarburized AISI 4140 Low Alloy Steel

Majid Fattah, F. Mahboubi

2011encorrosionmicrostructurenitrocarburizingAISI 4140hardness

Abstract

Language:

This study investigates the microstructure characterization and corrosion properties of plasma nitrocarburized AISI 4140 low alloy steel. The objective was to analyze the effect of treatment temperature on corrosion and hardness properties. Plasma nitrocarburizing treatments were conducted in a gas mixture comprising 85% N2, 12% H2, and 3% CO2 at a chamber pressure of 4 mbar for 5 hours. Various treatment temperatures ranging from 520 to 620 °C were employed. The methodologies included scanning electron and optical microscopy, x-ray diffraction, microhardness measurements, and potentiodynamic polarization techniques in a 3.5% NaCl solution to evaluate treated surfaces. Results indicated that treating at temperatures below 570 °C resulted in the formation of a monophase compound layer, while the layer at 620 °C consisted of two sub-layers supported by an austenite zone followed by a diffusion layer. The thickest diffusion layer corresponded to the sample treated at 620 °C. Microhardness testing revealed a decrease in surface hardness with rising treatment temperatures, establishing a relationship between temperature and material properties. These findings highlight the significance of treatment conditions in optimizing the performance of nitrocarburized AISI 4140 steel.

Download

Cite This Work

@article{9428a577-4b45-4313-9e8d-42fed51c2830,
  title={Microstructure Characterization and Corrosion Properties of Nitrocarburized AISI 4140 Low Alloy Steel},
  author={Majid Fattah and F. Mahboubi},
  year={2011},
  language={en}
}
TY  - JOUR
TI  - Microstructure Characterization and Corrosion Properties of Nitrocarburized AISI 4140 Low Alloy Steel
AU  - Majid Fattah
AU  - F. Mahboubi
PY  - 2011
LA  - en
ER  -

Similar Items

Quenching theory and technology B Liéséciâc; International Federation for Heat Treatment and ( WeLib.org )

2026enPDF

An Introduction to Chemical Metallurgy International Series R. H. Parker and D. W. Hopkins (Auth.) ( WeLib.org )

2026enPDF

Materials for Nuclear Plants

W. Hoffelner

Structural materials must be able to operate under demanding exposure conditions, particularly for advanced nuclear plants where challenges arise from

2013enPDF

Chemical Composition and Morphology of M7C3 Eutectic Carbide in High Chromium White Cast Iron Alloyed with Vanadium

Mirjana FILIPOVIC, Endre ROMHANJI and Zeljko KAMBEROVIC

The chemical composition and morphology of M7C3 eutectic carbides in 19 mass% Cr–2.8 mass% C white iron with up to 4.7 mass% V additions have been stu

2012enPDF

Correlation of Microstructure with the Wear Resistance and Fracture Toughness of White Cast Iron Alloys

M. Filipovic, Z. Kamberovic, M. Korac, and M. Gavrilovski

The objective of this investigation was to set down (on the basis of the results obtained by the examination of white cast iron alloys with different

2012enPDF

THE EFFECT VANADIUM CONTENT AND HEAT TREATMENT ON WEAR RESISTANCE AND FRACTURE TOUGHNESS OF FE-CR-C-V ALLOY

Mirjana Filipović, Željko Kamberović, Marija Korać

Experimental results indicate that the volume fraction of the carbide phase, carbide size and distribution had an important influence on the wear resi

2014enPDF
